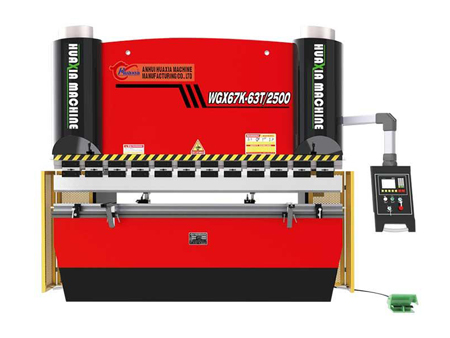

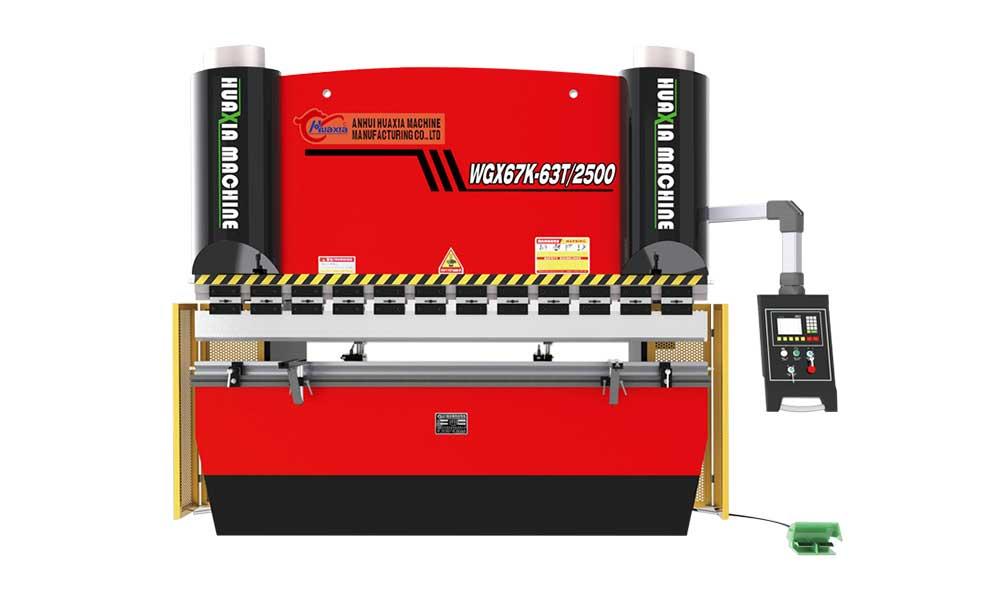

WG67K(Y) series Hydraulic Bending Press Brake

WG67K(Y) series Hydraulic Bending Press Brake

The WG67K(Y) series hydraulic bending press brake's fuselage is designed by using an ANSYS finite element analysis software . It adopts a steel plate welding structure, so it can work stably and reliably.

  • 63T/2500
  • 80T/2500
  • 100T/3200
  • 125T/3200

This product has been discontinued and removed from our shelves.

Features
  • The press brake uses the method of vibration to eliminate the stress on components, making the machine more stable and reliable.
  • The slider is positioned by the inner mechanical block, ensuring the accuracy of positioning.
  • The torsion shaft synchronous mechanism uses central bearing and add eccentric adjustment mechanism.
  • Manual oil pump is installed on the inside of the wall plate.
  • The structure of the back gauge adopts the design of fine grinding, heightening the press brake's adjusting accuracy.

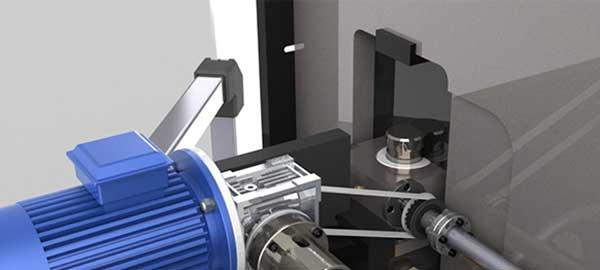

  • The position of the back gauge and the slider stroke's control are achieved by the servo motor through the transmission device, and they are displayed at numerical control screen, realizing the automation of multi-work step and multi-workpieces.
  • The numerical control system is chosen from DELEM, ESTUN, Tetra, or Sanyuan.
Parameters
Model Nominal Pressure(kn) Bed Length(mm) Bed Width(mm) Poles distance(mm) Throat depth(mm) Slipper stroke(mm) Max Opening Height(mm) Slipper stroke adjust length(mm) Oil Cylinder diameter(mm) Main Motor(kW) Dimension (L x W x H)(mm)
63T/2500 630 2500 160 1900 300 120 345 80 Φ140 5.5 2600 x 1500 x 2200
63T/3200 630 3200 160 2600 300 120 345 80 Φ140 5.5 3200 x 1500 x 2200
80T/2500 800 2500 160 1900 300 120 350 80 Φ160 5.5 2600 x 1700 x 2320
80T/3200 800 3200 160 1900 300 120 350 80 Φ160 5.5 3200 x 1700 x 2320
100T/3200 1000 3200 180 2500 320 120 380 80 Φ180 7.5 3200 x 1750 x 2420
100T/4000 1000 4000 180 3100 320 120 380 80 Φ180 7.5 4000 x 1750 x 2420
125T/3200 1250 3200 200 2500 320 120 380 80 Φ200 7.5 3200 x 1750 x 2550
125T/4000 1250 4000 200 3100 320 120 380 80 Φ200 7.5 4000 x 1750 x 2600
125T/5000 1250 5000 200 3800 320 120 380 80 Φ200 7.5 5000 x 1750 x 2700
125T/6000 1250 6000 200 4800 320 120 380 80 Φ200 11 6100 x 1750 x 2800
160T/3200 1600 3200 220 2400 400 200 450 80 Φ220 11 3200 x 1850 x 2800
160T/4000 1600 4000 220 3040 400 200 450 80 Φ220 11 4000 x 1850 x 2800
200T/4000 2000 4000 220 3100 400 200 450 80 Φ240 11 4000 x 2150 x 3000
200T/5000 2000 5000 220 3800 400 200 450 100 Φ240 11 5000 x 2150 x 3600
250T/3200 2500 3200 240 2200 400 200 500 100 Φ280 15 3200 x 2200 x 3400
250T/4000 2500 4000 240 3000 400 200 500 100 Φ280 15 4000 x 2200 x 3600
Details

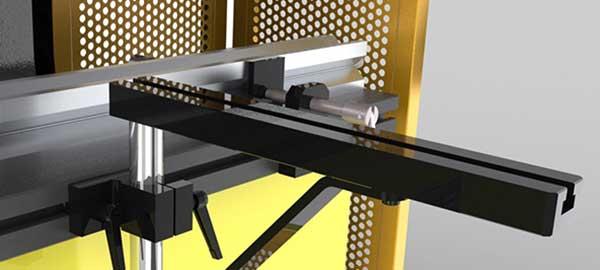

  • Front stripper

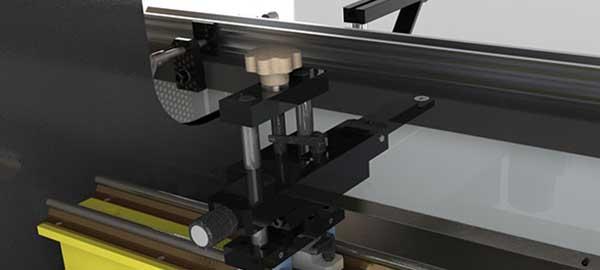

  • Block finger

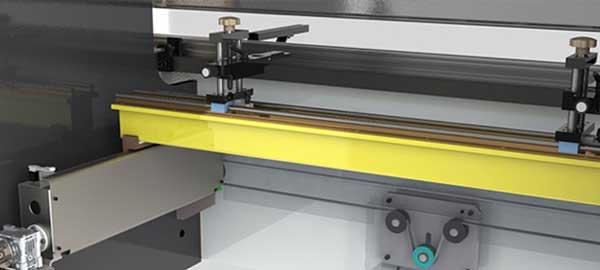

  • Back gauge bed
  • Stroke regulator
