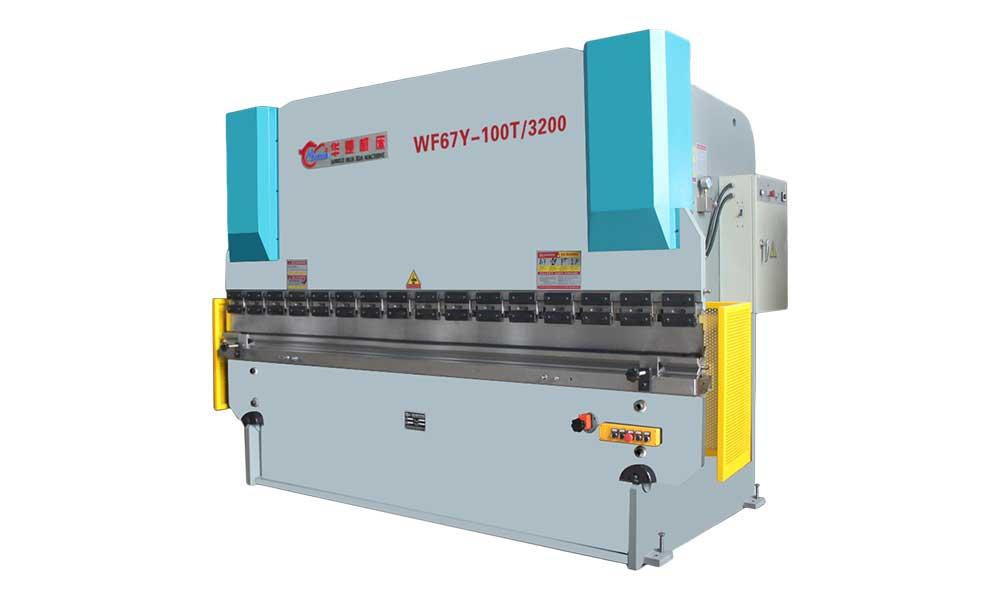

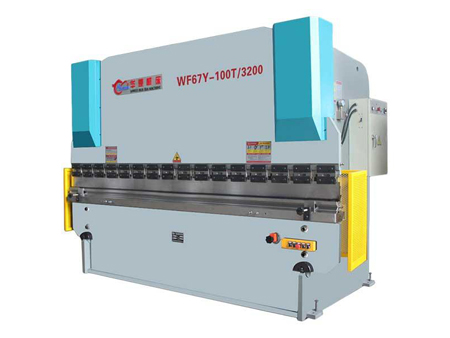

WF67Y Metal Bending Hydraulic Press Brake

WF67Y Metal Bending Hydraulic Press Brake

The back gauge structure of the WF67K metal bending hydraulic press brake adopts a grinding plate, giving the machine high regulation accuracy and facilitating convenient operation.

  • 63T/2500
  • 125T/3200
  • 200T/4000
  • 600T/8000

This product has been discontinued and removed from our shelves.

Features
  • The structure of the machine is welded by steel plate, and it is designed by the method of limit elements analysis.
  • The press brake uses the method of vibration to eliminate the stress on components, making the machine stable and reliable.
  • The two ends of the synchronization mechanism uses a high accuracy central bearing, and adds an eccentric adjusting mechanism.
  • We use a PATRIX compensating mechanism to compensate deflection generated by the worktable and slider when running. This increases bending accuracy.
  • The reducer motivates mechanical blocks inside of cylinder to adjust the bending angle, and the value will be displayed on the stroke counting unit.
  • There is an adjustment button between the workbench and the wallboard, making it convenient to adjust the bending angle.
  • There is a remote control valve on the right side of the column, which can adjust the pressure of the main system.
  • Manual oil pump is installed on the inside of the wall plate.
Parameters
Model 63T/2500 125T/3200 200T/4000 600T/8000
Nominal Force KN 630 1250 2000 6000
Bed Length mm 2500 3200 4000 8000
Bed Width mm 160 180 220 400
Poles Distance mm 1900 2600 3100 6200
Throat Depth mm 250 320 350 500
Slider Travel mm 120 120 250 300
Die Loading Height mm 345 380 500 630
Slider travel Adjustment mm 100 100 180 250
Cylinder Bore mm Φ140 Φ190 Φ240 Φ400
Main Power kW 25.5 7.5 11 45
Dimension (L)mm 2600 3200 4000 8400
Dimension (W)mm 1500 1750 2150 3300
Dimension (H)mm 2200 2520 2950 5600
Optional devices
  • Gooseneck punch
  • Manual refuel device
  • Villa mechanical crowning bed
  • Linear guide type back gauge
