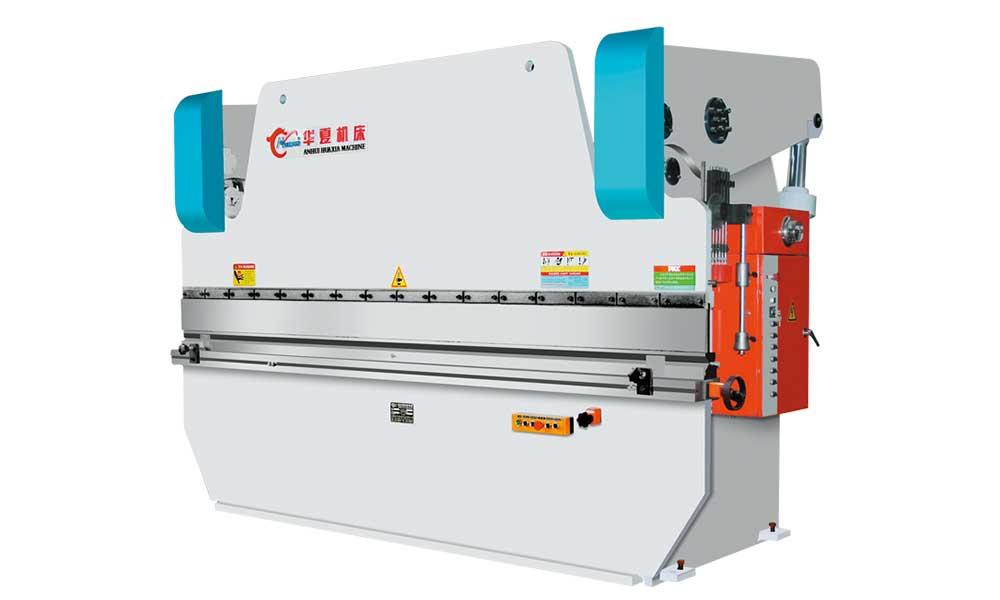

WH67K(Y) series Metal Hydraulic Press Brake

The WH67K(Y) series metal hydraulic press brake uses a vibration treatment method to eliminate stress on components to increase machine stability and reliability.

  • H063T
  • H080T
  • H100T
  • H125T

This product has been discontinued and removed from our shelves.

Parameters
Model Nominal Pressure (kN) Bed Length (mm) Bed Width (mm) Poles Distance (mm) Throat Depth (mm) Slider Travel (mm) Max Opening Height (mm) Slipper Travel Adjust Length (mm) Hydro- cylinder Diameter (mm) Main Motor (kW) System Pressure（Mpa) Dimension (L x W x H) (mm)
H063T/2500 630 2500 160 1900 300 120 345 80 Φ140 5.5 22 2600 x 1500 x 2200
H063T/3200 630 3200 160 2600 300 120 345 80 Φ140 5.5 22 3200 x 1500 x 2200
H080T/2500 800 2500 160 1900 300 120 350 80 Φ160 5.5 22 2600 x 1700 x 2320
H080T/3200 800 3200 160 1900 300 120 350 80 Φ160 5.5 22 3200 x 1700 x 2320
H100T/3200 1000 3200 180 2500 320 120 380 80 Φ180 7.5 22 3200 x 1750 x 2420
H100T/4000 1000 4000 180 3100 320 120 380 80 Φ180 7.5 22 4000 x 1750 x 2420
H125T/3200 1250 3200 200 2500 320 120 380 80 Φ200 7.5 22 3200 x 1750 x 2550
H125T/4000 1250 4000 200 3100 320 120 380 80 Φ200 7.5 22 4000 x 1750 x 2600
H125T/5000 1250 5000 200 3800 320 120 380 80 Φ200 7.5 22 5000 x 1750 x 2700
H125T/6000 1250 6000 200 4800 320 120 380 80 Φ200 11 22 6100 x 1750 x 2800
H160T/3200 1600 3200 220 2400 400 200 450 80 Φ220 11 22 3200 x 1850 x 2800
H160T/4000 1600 4000 220 3040 400 200 450 80 Φ220 11 22 4000 x 1850 x 2800
H160T/6000 1600 6000 220 4800 400 200 450 80 Φ220 11 22 6100 x 2000 x 3000
H200T/4000 2000 4000 220 3100 400 200 450 80 Φ240 11 23 4000 x 2150 x 3000
H200T/5000 2000 5000 220 3800 400 200 450 100 Φ240 11 23 5000 x 2150 x 3600
H250T/3200 2500 3200 240 2200 400 200 500 100 Φ280 15 22 3200 x 2200 x 3400
H250T/4000 2500 4000 240 3000 400 200 500 100 Φ280 15 22 4000 x 2200 x 3600
Details
Features
  • The press brake's structure is made up of welded steel plate and the body is designed using finite element analysis.

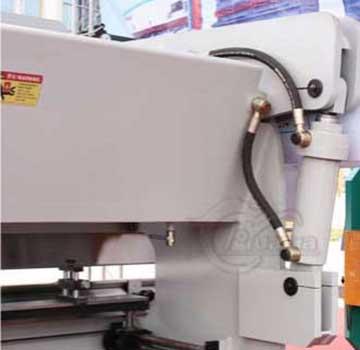

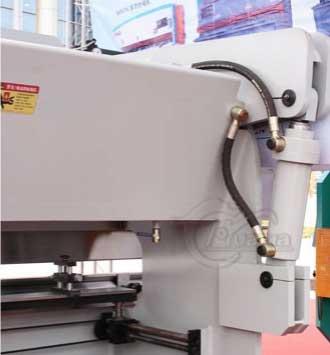

  • The hydro-cylinder is installed behind the machine, lowing the working pressure and increasing load capacity.

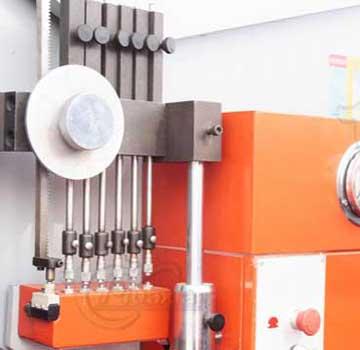

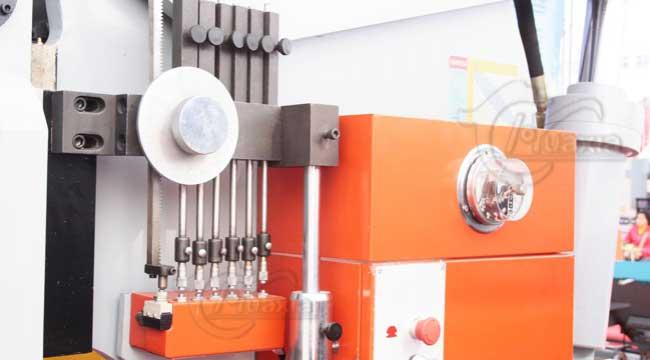

  • There are many location points at right end of the slider，to help the sliderarbitrarily locate and complete a variety of different angles at one time.

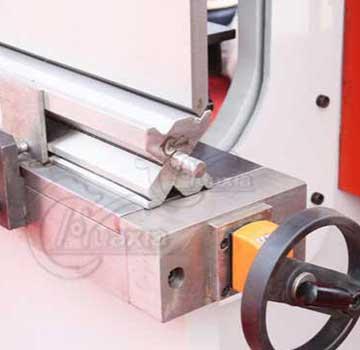

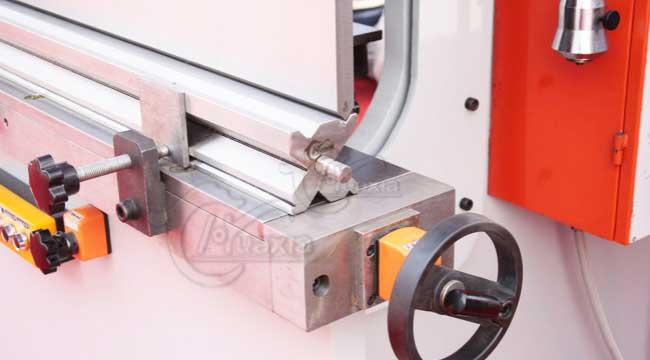

  • The press brake's lower die can be chosen from a selection of deflection compensation die, deflection plate and Villa mechanical compensation structure, ensuring the straightness of the workpiece.
