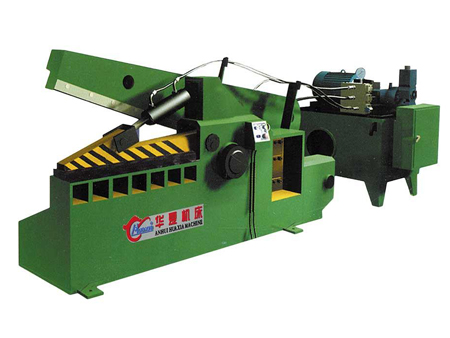

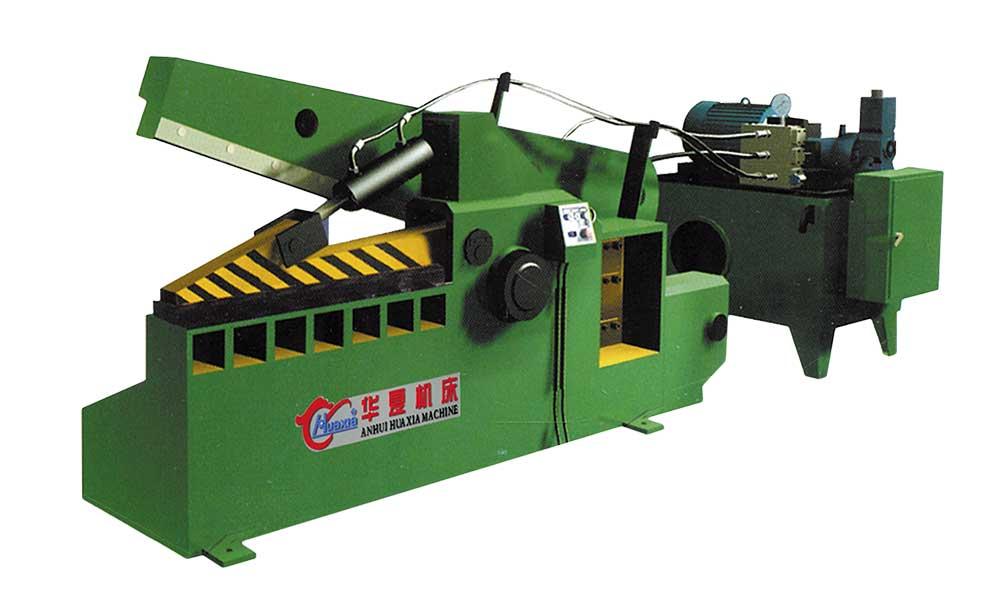

Alligator Hydraulic Metal Cutting Machine

Alligator Hydraulic Metal Cutting Machine

Alligator hydraulic metal cutting machines are used in scrap metal processing industries, scrap automobile disassembly yards, and smelting and foundry industries. It can cold shear a variety of metal forms, including round steel, square steel, steel plates, channel steel, angle steel, I-beam steel and members.

This product has been discontinued and removed from our shelves.

Features
  • Alligator hydraulic metal cutting machines use a hydraulic drive that features a small area, low noise, stable operation, large shear force, flexible operation and outstanding safety levels. The entire system features hydraulic overload protection.
  • This machine uses both electric and hydraulic joint control. The control and operation is extremely convenient, because the shearing action can be started or stopped in any position, and users can easily replace a single or continuous shear based on their needs.
Parameters
Model Max. cuttingforce (kN) Max. holdingforce (kN) Max. opening (mm) Opening length (mm) Cutting times (min-1) Cutting dimension (mm) Total power (kW) Operation methods
Q43Y-63A 630 120 200 400 8-20 30x30 (Φ35) 7.5 Feed by hands, Manual or auto operation
Q43Y-63B 630 120 280 600 8-20 30x30 (Φ35) 7.5
Q43Y-63C 630 120 360 800 8-20 30x30 (Φ35) 7.5
Q43Y-100 1000 160 280 600 8-20 40x40 (Φ45) 11
Q43Y-120 1200 200 280 600 8-20 45x45 (Φ50) 15
Q43Y-160 1600 250 320 700 8-20 55x55 (Φ63) 18.5
Q43Y-200 2000 250 380 1000 12-20 65x65 (Φ75) 22
Q43Y-250 2500 260 480 1000 12-20 70x70 (Φ80) 30
Q43Y-315 3150 420 520 1200 12-20 80x80 (Φ90) 37
Q43Y-400 4000 420 520 1200 12-20 90x90 (Φ100) 44
