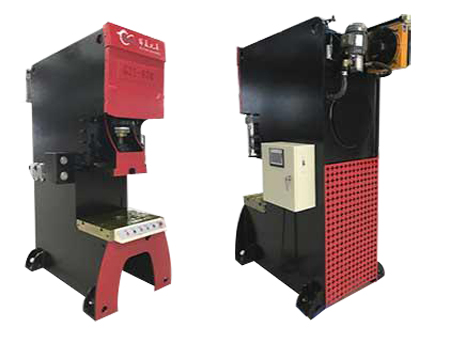

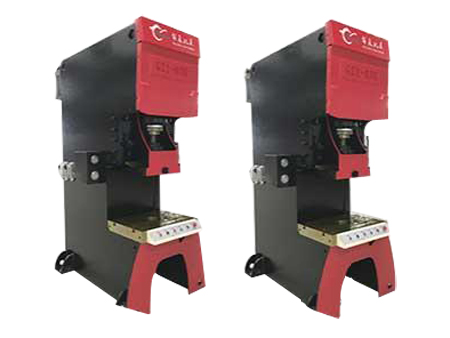

High Precision Metal Punch Press Machine
  • High Precision Metal Punch Press Machine
  • High Precision Metal Punch Press Machine

    • High Precision Metal Punch Press Machine

    The high precision metal punch press machine uses a double hand operation with emergency stop and up/down point functions. Users can choose automatic, semi-automatic and click functions to make work more convenient.

    • J96CY-15T
    • J96CY-25T
    • J96CY-40T
    • J96CY-63T
    • J96CY-80T
    • J96CY-100T
    • J96CY-1255T

    This product has been discontinued and removed from our shelves.

    Features
    • Our machine features a C-type design and integral welding ensure the excellent rigidity and small deformation of machine structure.
    • The machine control system uses Siemens PLC and display screen to ensure the accuracy of the machine.
    • The slider to the lowest position is accurately located while the machine is running, and the error is ±0.01. The position is also freely adjustable.
    • We use a full oil pressure system to achieve a high pressure, stable working performance and large pressure adjust range.
    • Hydraulic valve seals according to customer needs can be chosen, including Huade, Japan NOK or Taiwan DingZing.
    • The downward movement stroke has two speed options: fast advance and automatic working, both of which improves the working efficiency, adjusts the working speed at will, protects the mold and improves the product pressing quality.
    • Two cycle start mode: button and pedal.
    • This machine can select an infrared protection device or oil temperature cooling device based on customer requirements. The bottom dead center can be adjusted with an encoder or faster ruler detection.
    Parameters
    Model J96CY-15T J96CY-25T J96CY-40T J96CY-63T J96CY-80T J96CY-100T J96CY-1255T
    Nominal force KN 150 250 400 630 800 1000 1250
    Hydraulic maximum working pressure Mpa 24 24 24 24 24 24 24
    Slider maximum stroke mm 70 80 100 120 130 140 140
    Maximum shut heightmm 240 260 320 390 420 460 460
    Mold height adjustment mm 45 70 80 80 100 100 100
    Throat depth mm 175 210 235 260 310 310 350
    Table height from ground mm 700 740 740 750 760 800 870
    Fast down speed mm/s 80 225 265 220 220 210 210
    Working speed mm/s 30 14 14 16 15 14 14
    Return speed mm/s 120 99 118 195 180 165 165
    Sliding block ground dimensions Width mm 200 250 320 440 500 500 600
    Length mm 180 220 270 320 400 400 500
    Die hole mm Φ40 Φ40 Φ50 Φ50 Φ60 Φ60 Φ60
    Bed size Width mm 480 600 630 710 850 850 1000
    Length mm 320 400 450 500 600 600 65
    Bore diameter mm Φ100 Φ100 Φ150 Φ150 Φ180 Φ180 Φ200
    Dimensions Width mm 800 1160 1100 1250 1370 1350 1600
    Length mm 900 1155 1260 1450 1630 1630 1850
    Height mm 1700 1900 1980 2270 2500 2500 3400
    Motor power kw 5.5 5.5 5.5 5.5 7.5 7.5 11
    Weight kg 1000 1400 2000 3500 5800 5800 8000
