Electric Press Brake

High-efficiency, eco-friendly bending with full electric servo technology
The electric press brake offers significant advantages over traditional hydraulic press brakes, delivering superior energy efficiency, environmental friendliness, high speed, precision, and low maintenance costs.
Designed for modern manufacturing, this machine optimizes bending operations with advanced electric servo technology.

Press Capacity (kN)

30-600

Bending Length (mm)

200-2500

Bending Stroke (mm)

120-150

Back Gauge Stroke (mm)

150-500

Request a Quote

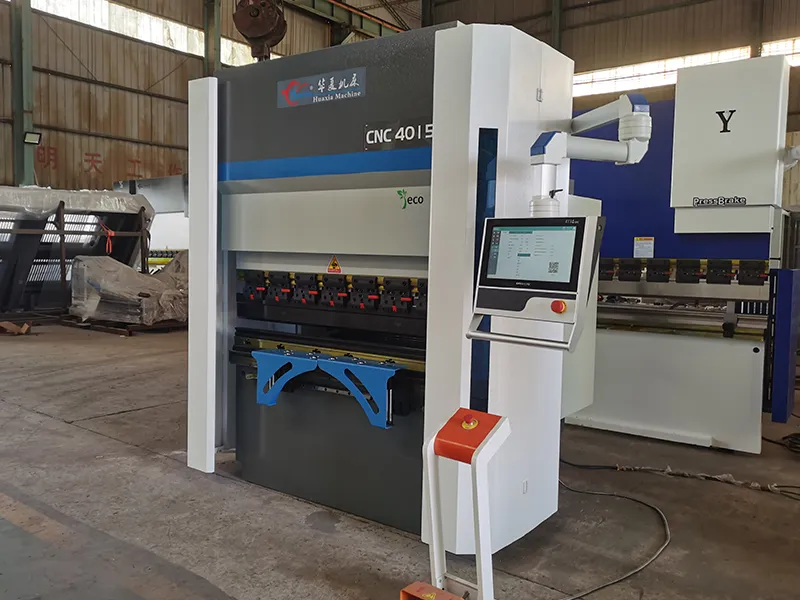

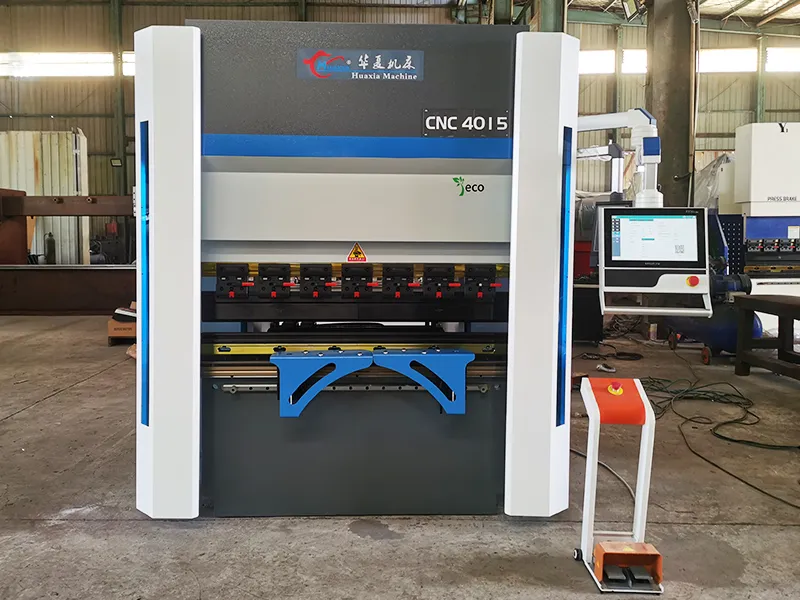

Electric Press Brake
  • Electric Press Brake
  • Electric Press Brake
  • Electric Press Brake
Technical Parameters
Model Press Capacity (kN) Bending Length (mm) Bending Stroke (mm) Back Gauge Stroke (mm) Spindle Power (kW) Fast Fall Speed (mm/s) Feeding Speed (mm/s) Opening Height (mm) Depth of Throat (mm) Distance between Columns (mm)
EP03-02 30 200 120 150 2 200 < 30 420 - 250
EP06-04 60 400 120 150 3 200 < 30 420 150 370
EP12-06 120 600 120 150 5.6 200 < 30 420 150 520
EP18-08 180 800 120 300 7.5 200 < 30 420 150 770
EP12-06R 120 600 120 150 2×3 200 < 30 420 150 520
EP20-10 200 1050 120 300 11 200 < 30 430 250 930
EP30-12 300 1250 150 500 13 200 < 30 470 250 1150
EP35-12 350 1250 150 500 13 200 < 20 470 250 1150
EP40-13 400 1300 150 500 15 200 < 20 470 300 1200
EP50-20 500 1600 150 500 30 200 < 20 530 350 1400
EP60-25 600 2500 150 500 30 200 < 20 530 350 2300
Advantages
    1. Environmental Protection
      Eliminates the use of hydraulic oil, preventing leaks, waste oil disposal, and environmental contamination.
      Reduces maintenance related to hydraulic oil changes and component replacements.
    1. Significant Energy Savings
      Electric servo drive technology ensures power consumption is proportional to load, minimizing energy use during non-bending operations.
      Mechanical main drive efficiency exceeds 95%, compared to hydraulic drive efficiency below 80%.
      Example: A 100t electric press brake consumes approximately 12 kWh/day, compared to 60 kWh/day for a hydraulic press brake, resulting in about 80% energy savings.
    1. High-Speed Operation
      Servo motor response is faster than hydraulic servo, achieving slide return and fast down speeds up to 200mm/s.
      Working speeds range from 0 to 20mm/s, significantly faster than typical hydraulic press brakes.
      Reduces startup and cooldown times, and minimizes downtime due to fewer components and lower failure rates.
    1. High Bending Accuracy
      Adjustable bending speed for different materials, thicknesses, and lengths, ensuring optimal precision.
      VILA structure deflection compensation axis for enhanced accuracy.
      Bending angle error within ±0.5°, compared to ±1° for hydraulic press brakes.
    1. Low Maintenance Cost
      Simple transmission system with minimal maintenance requirements, only requiring regular lubrication.
      Eliminates the need for frequent hydraulic oil changes and repairs of pumps, valves, and seals.
      Reduces the risk of system contamination and associated cleaning costs.

The electric press brake is engineered for high precision, efficiency, and reliability, with finite element analysis used to optimize the rigidity of the bed and slider. This machine provides a superior bending solution compared to hydraulic press brakes in terms of energy consumption, environmental impact, processing efficiency, accuracy, and overall cost.

  • Related Metalworking Machines and Tooling
  • Press Brake Tooling
    Press Brake Tooling
  • WD67K CNC Press Brake
    WD67K CNC Press Brake
  • WF67K(Y) Hydraulic Press Brake
    WF67K(Y) Hydraulic Press Brake
  • 2-WF(D)67K CNC Controlled Hydraulic Press Brake
    2-WF(D)67K CNC Controlled Hydraulic Press Brake
Get in Touch

Got questions about our metalworking machines? We’re here to help you choose the right solution for your business. Contact us now!

Email: echo@ahhxjc.com
Tel.: +86-18655592716
You Might Also Be Interested In
    QC11K(Y) Hydraulic Guillotine Shear
    Shearing Machine
    CNC Laser System Metal Cutting Machine
    Laser Cutting Machine
    W12 4-roll Plate Rolling Machine
    Plate Rolling Machine
    NC Semi-Automatic Tube Bending Machine
    Tube Bending Machine
    J23 J21 Power Press Machine
    Punch Press
    Hydraulic Press for Sheet Metal Extending
    Hydraulic Press

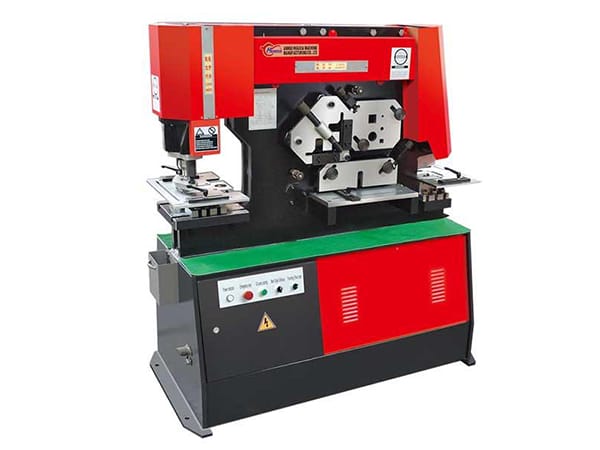

    Hydraulic Ironworker
    Other Machines
    WD67K CNC Press Brake
    Hydraulic Press Brake
What are the key features of CNC press brakes?

Huaxia CNC press brakes are equipped with advanced controllers (Dutch DELEM, Italian ESA, or Swiss CYBELEC) and offer the following benefits:

High Precision: Enhanced accuracy in bending operations.
Efficiency: Increased bending speeds by up to 30% compared to traditional press brakes.
Versatility: Suitable for complex shapes and various materials.
What are the differences between CNC press brakes and hydraulic press brakes?

CNC press brakes utilize computer numerical control systems, offering higher precision and better bending repeatability, ideal for high-volume production. Hydraulic press brakes use hydraulic systems, providing a more cost-effective solution suitable for a wide range of material processing.

What are the specifications for your press brake's table length and tonnage?

Our press brakes are available in various specifications, including table lengths from 500 to 18,000mm and bending forces from 20 to 3,500T. We can recommend the appropriate model based on your specific requirements.

What materials can your press brakes process?

Our press brakes can process a variety of metal materials, including carbon steel, stainless steel, aluminum alloy, and copper plates. The specific equipment selection depends on the material thickness and bending requirements.

What does the daily maintenance of a press brake include?

Daily maintenance of a press brake primarily includes:

Regular Cleaning: Removing dust and debris.
Lubrication: Lubricating moving parts as per the manual.
Hydraulic System Check: Ensuring proper oil levels and no leaks.
Electrical System Check: Verifying secure connections and intact wiring.
Calibration: Regularly checking and calibrating bending accuracy.
Consumable Replacement: Replacing worn-out molds and parts promptly.
What industries can benefit from Huaxia press brakes?

Huaxia press brakes are suitable for:

Automotive manufacturing
Environmental protection equipment
Petroleum equipment production
Power tower fabrication
Steel structure manufacturing
Precision sheet metal components
Small household appliances
Computer and equipment enclosures
Can Huaxia customize press brake machines?

Yes, Huaxia offers OEM customization for press brakes, including appearance, color, and configuration adjustments to meet specific customer needs. Customized products may have a slightly higher price.
