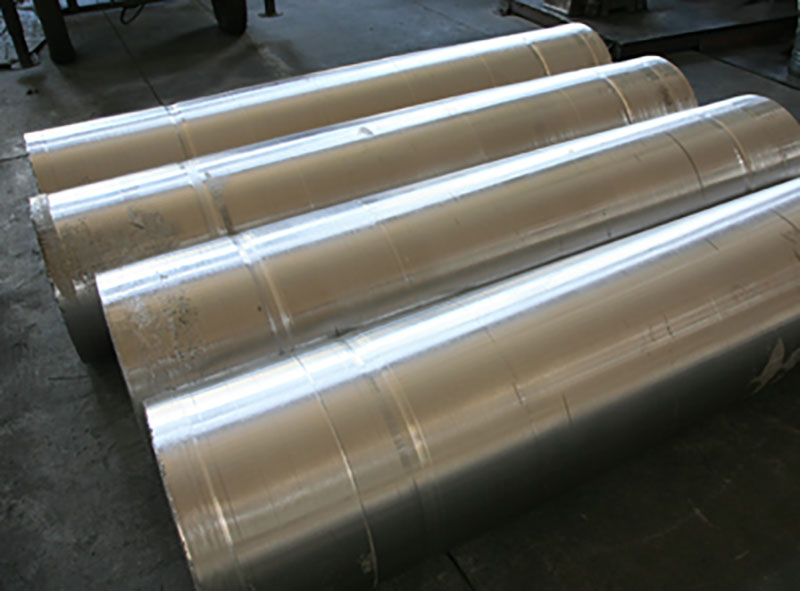

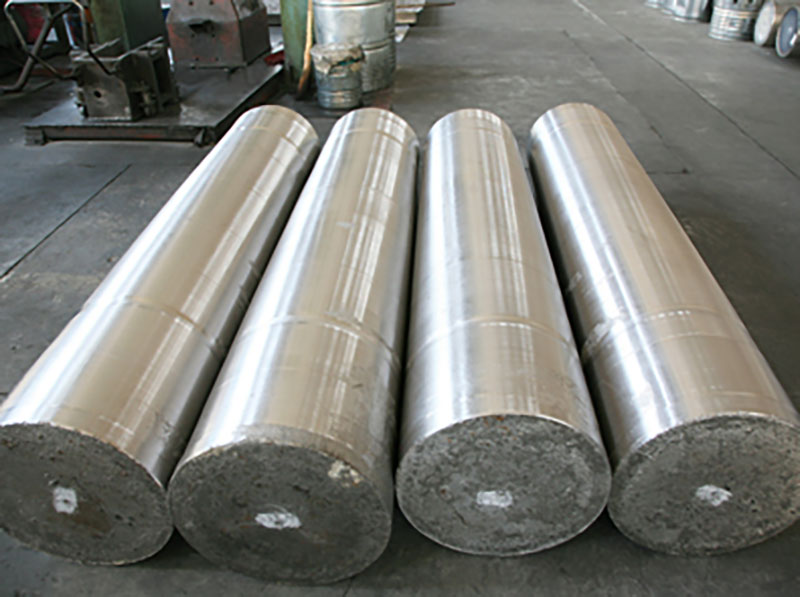

The chemical composition of titanium ingots shall meet the following requirements (%, not greater than):
| Ti | Fe | C | N | H | O | Single | Total |
| Balance | 0.05 | 0.015 | 0.015 | 0.0015 | 0.05 | 0.05 | 0.2 |
Non-destructive testing: The riser position shall be determined in accordance with GB/T 26060 Titanium and Titanium Alloy Ingots. For risers exceeding 100mm, the quality responsibility shall be traced to the melting process. Ultrasonic testing is performed on the ingot body in accordance with GB/T 5193 Method of Ultrasonic Inspection for Wrought Titanium And Titanium Alloy Products.
Titanium materials used for anode plates and sheets shall comply with ASTM B265 Grade 1.
| Composition | C | O | N | H | Fe |
| ≤ | 0.02 | 0.08 | 0.02 | 0.015 | 0.04 |
The mechanical properties of anode titanium plates and sheets shall comply with the following standards:
| Properties | Tensile Strength | Yield Strength | Elongation | Hardness |
| Requirements | ≥240MPa | 140-310MPa | ≥30% | 110-130 HV |
6mm and 8mm anode plates and sheets, the titanium grain size number shall be 5.5 or finer;For 1mm and 3mm anode plates and sheets, the grain size number shall be 5.0 or finer.The hardness of titanium plates and sheets for anode plates shall be 110-130 HV and shall be uniform throughout the plate.
GB/T 3621-2007 standard applies. Special requirements: Plate flatness ≤3%; The material shall be free from mechanical surface defects; Thickness deviation within the same batch shall be < 0.5mm; For 6mm and 8mm anode titanium plates and sheets, the thickness tolerance within the same batch shall be ±0.15 mm (upper deviation preferred).
| Product Name | Specifications | Standards | Grades | Advantages |

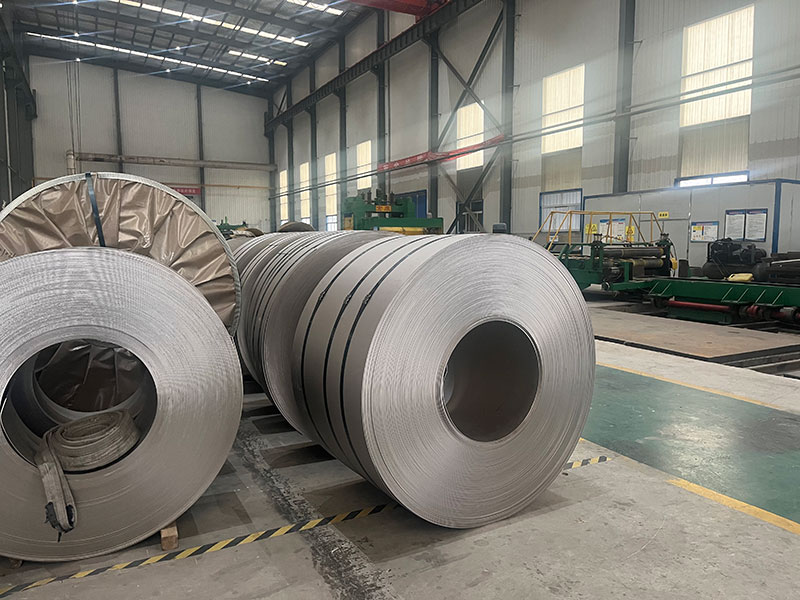

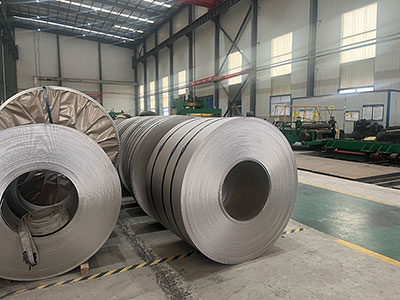

| Titanium and Titanium Alloy Roll & Coil | Thickness (δ): 0.5-12mm Width (W): ≤ 2000mm Length (L): Coil length Unit weight (per coil): ≤ 8t | GB/T 3621 GB/T 3622 GB/T 26723 ASTM B 265 YS/T 658 GJB 2505 GJB 2921 JIS H 4600 AMS 4919 and customer requirements | TA1, TA2, TA3, TA8, TA9, TA10, TC4, TC8, TC21 | Light weight High specific strength Excellent corrosion resistance |
| Thickness (δ): 0.5-100mm Width (W): ≤ 4000mm Length (L): ≤ 12,000mm | ||||

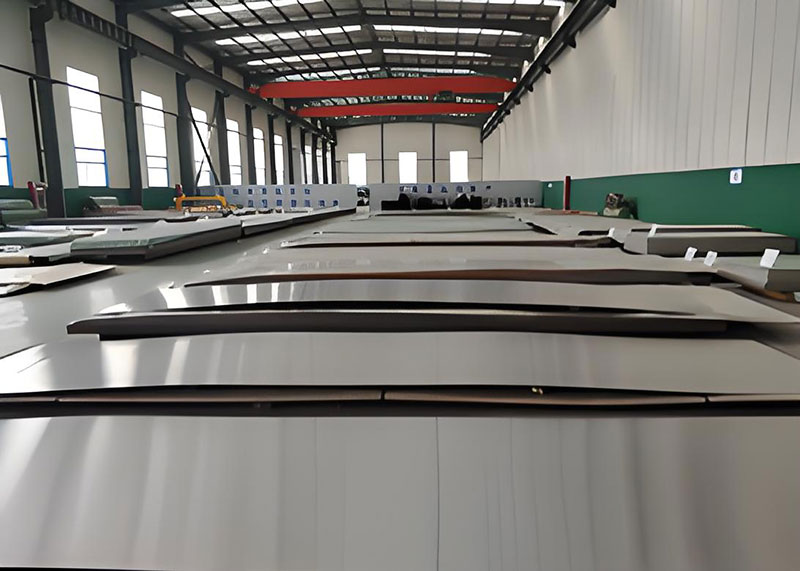

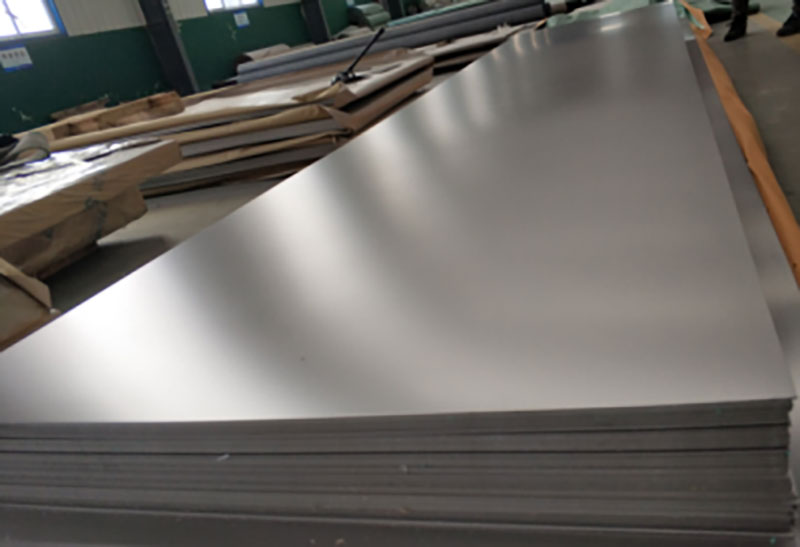

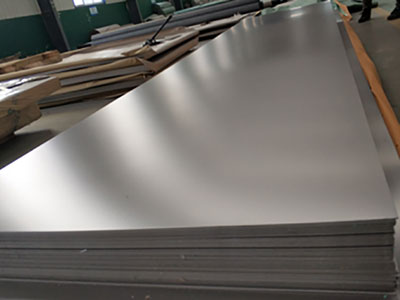

| Titanium and Titanium Alloy Plate & Sheet |
| Product Name | Specifications | Standards | Inspection Methods | Grades | Advantages | Online Production Diameter Range | Offline Processing Range |

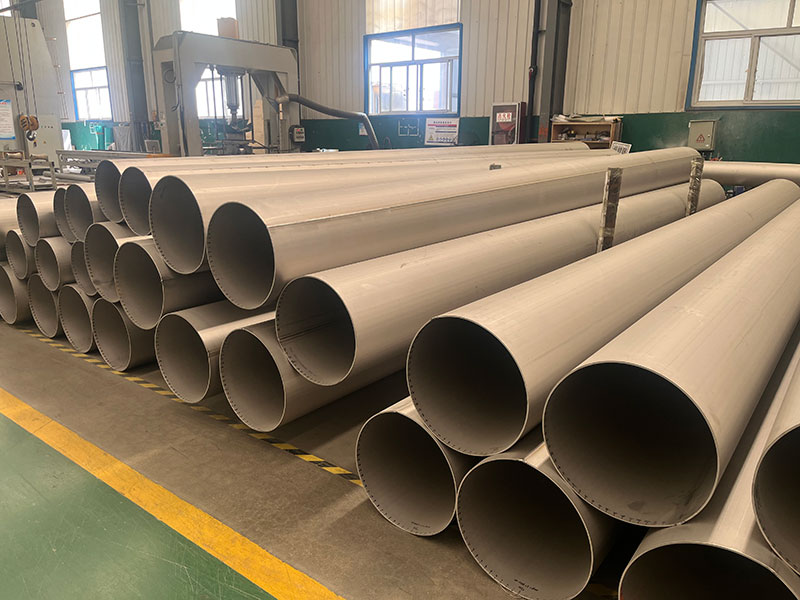

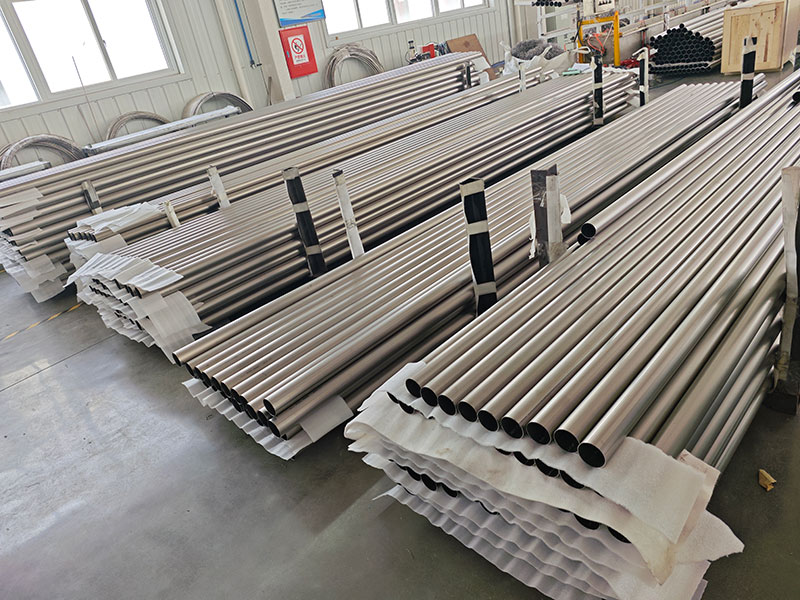

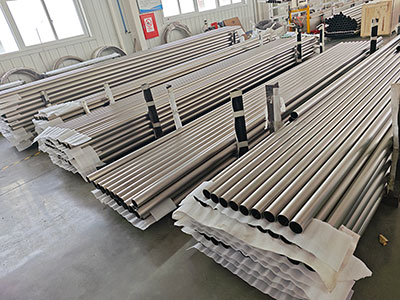

| Titanium and Titanium Alloy Precision Welded Pipe | Outer diameter (⌀): 16-51mm Wall thickness (δ): 0.5-2.0mm Length (L): As per customer requirements | GB/T 3625 GB/T 26057 GJB 3423 ASTM B862 ASTM B338 JIS H 4631 JIS H 4635 and customer requirements | Eddy current testing Hydrostatic test | TA1 TA2 TA10 | High strength Light weight Good thermal conductivity Excellent corrosion resistance | Outer diameter (⌀): 7.2-325mm | Outer diameter (⌀): 133-820mm Wall thickness (δ): 3.0-15mm Length (L): ≤6000m |
| Outer diameter (⌀): 51-133mm Wall thickness (δ): 2.0-4.0mm Length (L): As per customer requirements | |||||||
| Outer diameter (⌀): 133-219mm Wall thickness (δ): 2.0- 6.0mm Length (L): As per customer requirements | |||||||
| Outer diameter (⌀): 219-325mm Wall thickness (δ): 3.0-8.0mm Length (L): As per customer requirements | |||||||
| Titanium and Titanium Alloy Continuous Pipe | Outer diameter (⌀): ≤51mm Wall thickness (δ): 0.5-3.0mm Length (L): ≤ 5000m | Eddy current testing |

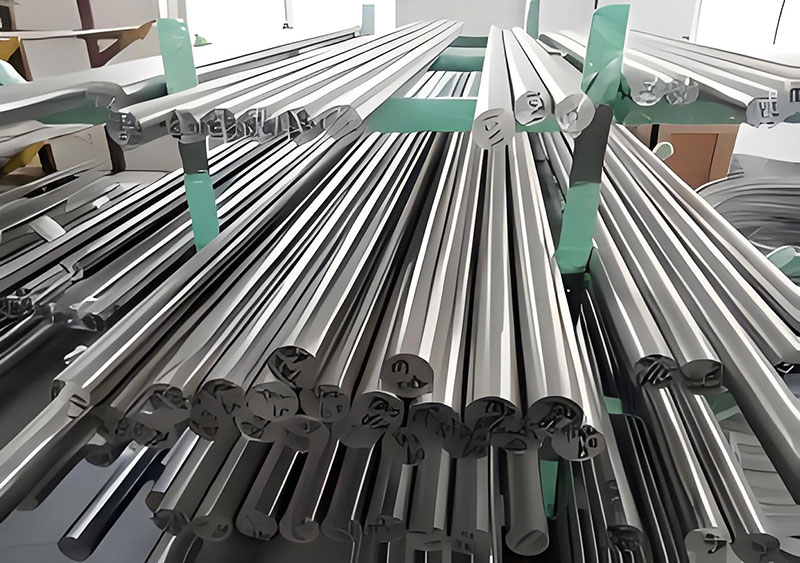

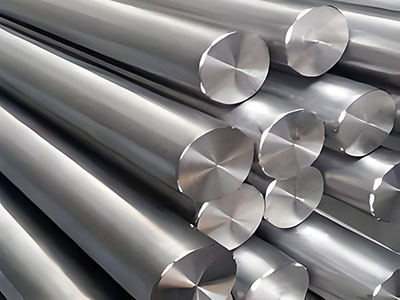

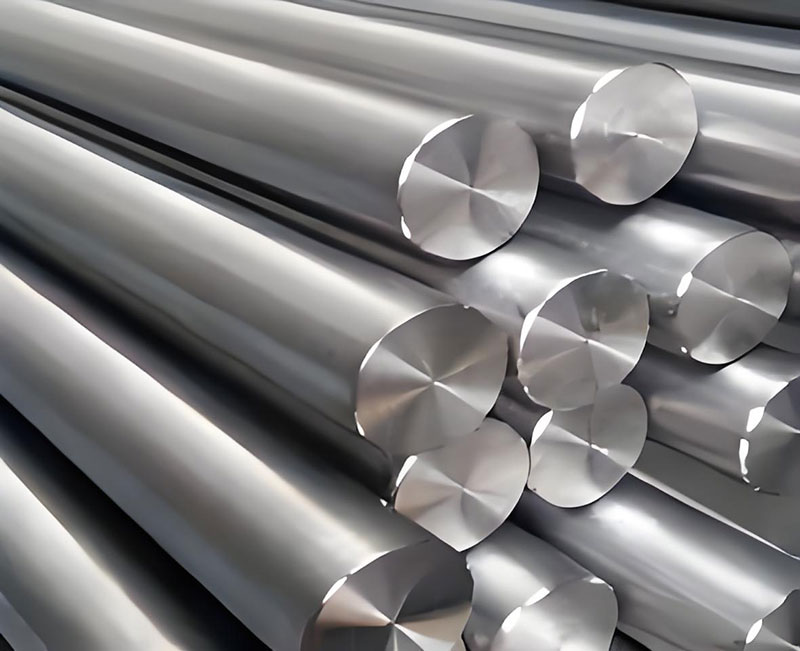

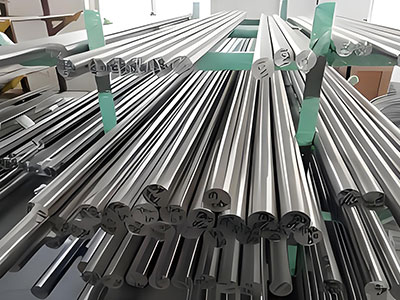

| Product Specifications | Standards | Grades | Advantages |
| Outer diameter (⌀): 6-600mm Length (L): ≤6000mm Single piece weight: ≤9t | GB/T 2965 GJB 1538 GJB 2218 GJB 2219 GJB 9571 ASTM B348 JIS H 4650 AMS 4928 and customer requirements | TA1 TA2 TA3 TA8 TA9 TA10 TC4 TC8 TC21 TB5 | Light weight High specific strength Excellent corrosion resistance |
| Product Name | Specifications | Standards | Grades | Advantages |

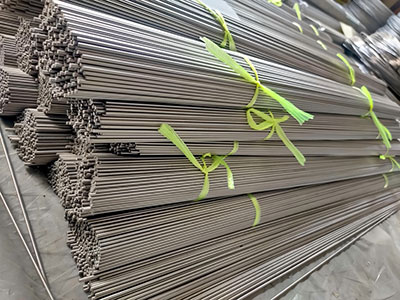

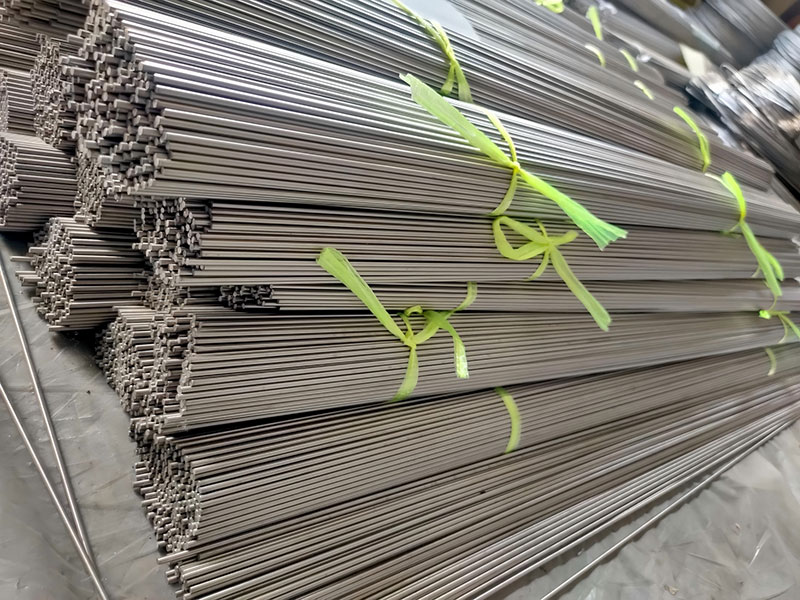

| Titanium and Titanium Alloy Straight Wire | Outer diameter (⌀): 2.0-6.0mm Length (L): ≤ 3000mm | GB/T 3623 GJB 9581 GJB 2219 ASTM B863 JIS H 4670 and customer requirements | TA1 TA2 TA3 TA8 TA9 TA10 TC4 TC8 TC21 | Excellent corrosion resistance High specific strength Non-magnetic with high biocompatibility Low ultrasonic impedance and high acoustic transmission coefficient Good shape memory performance |

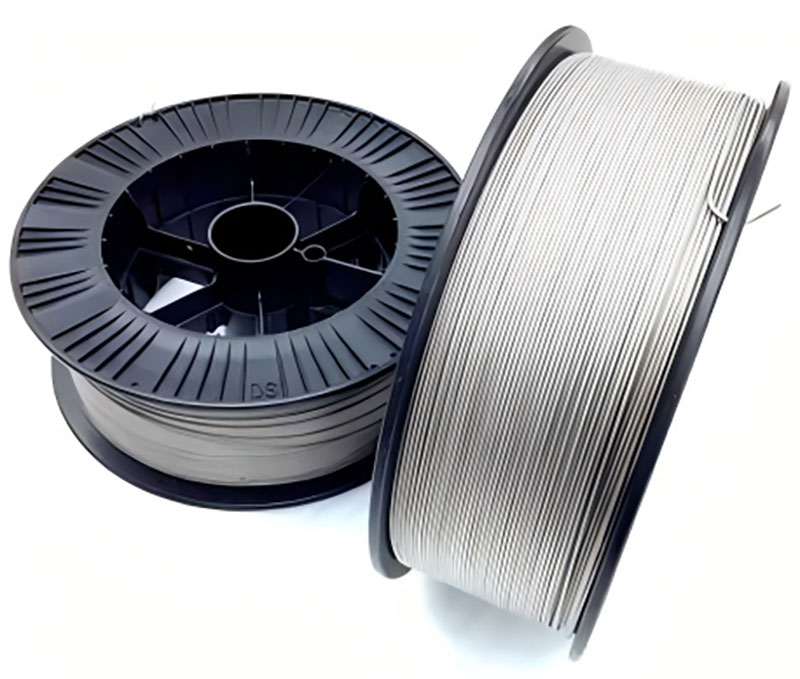

| Titanium and Titanium Alloy Coiled Wire | Outer diameter (⌀): 0.5-6.0mm Single piece weight: 10-60kg |
