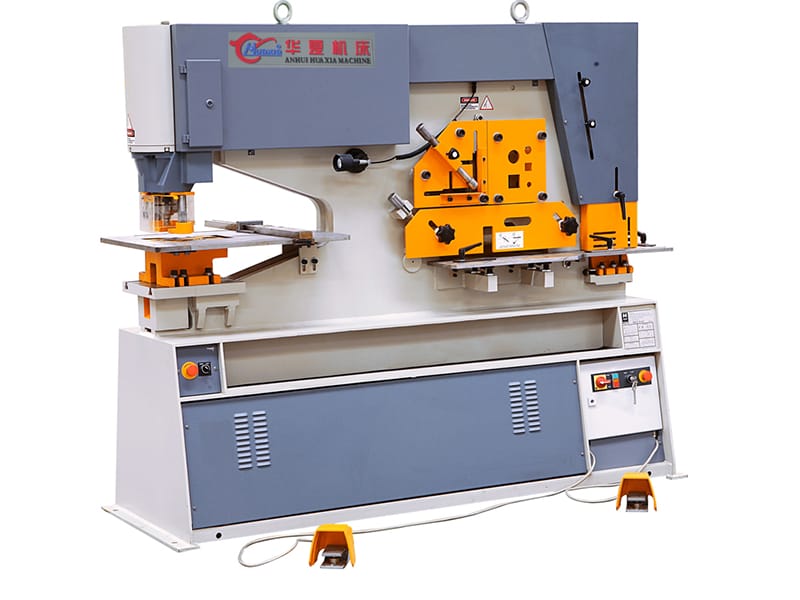

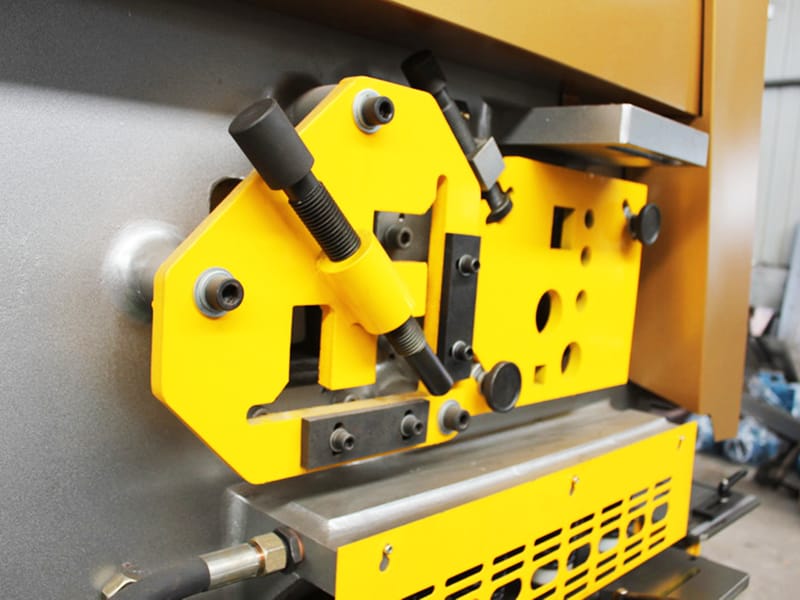

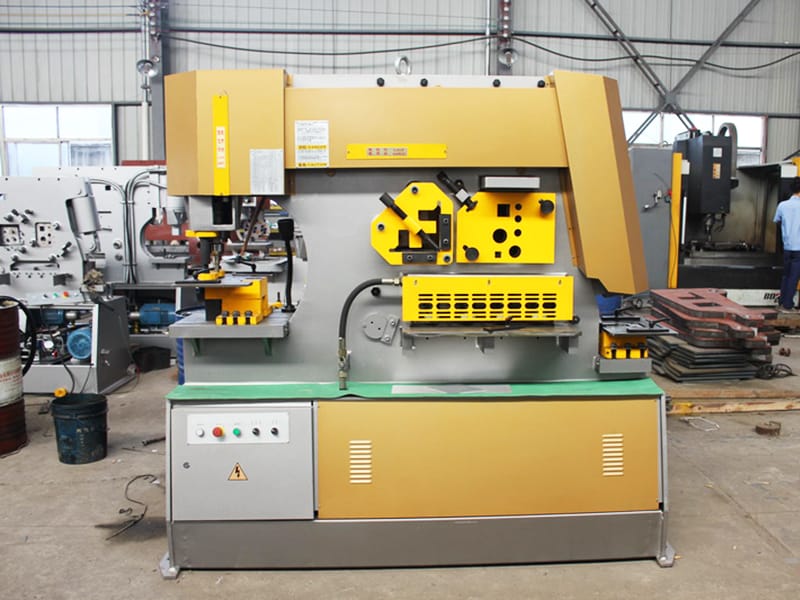

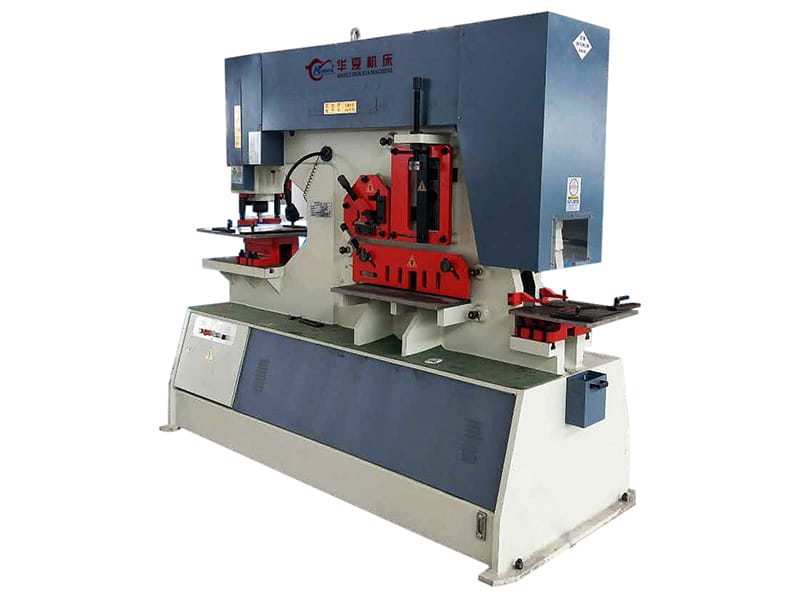

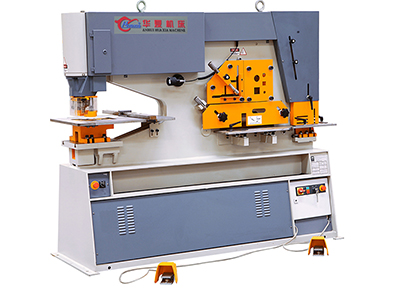

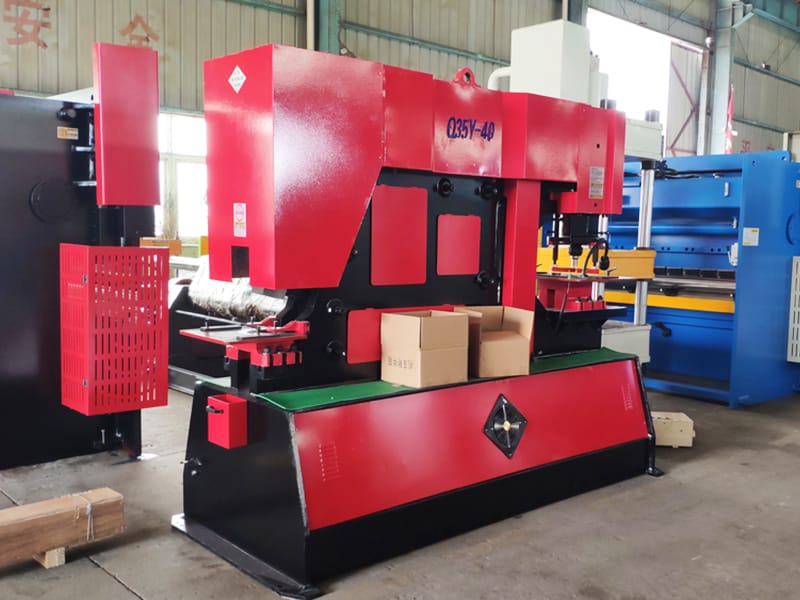

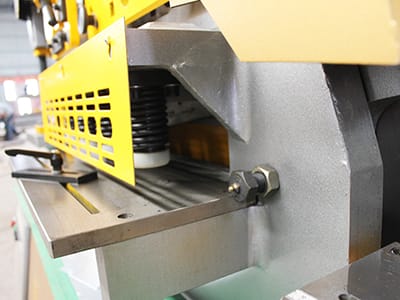

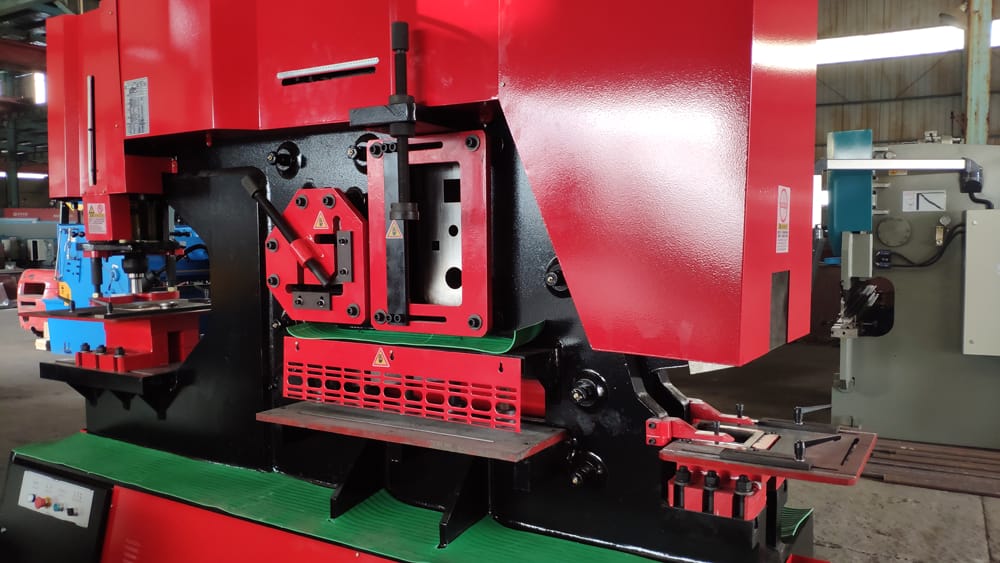

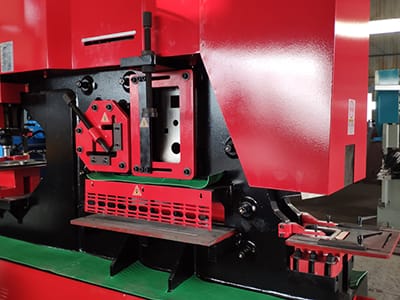

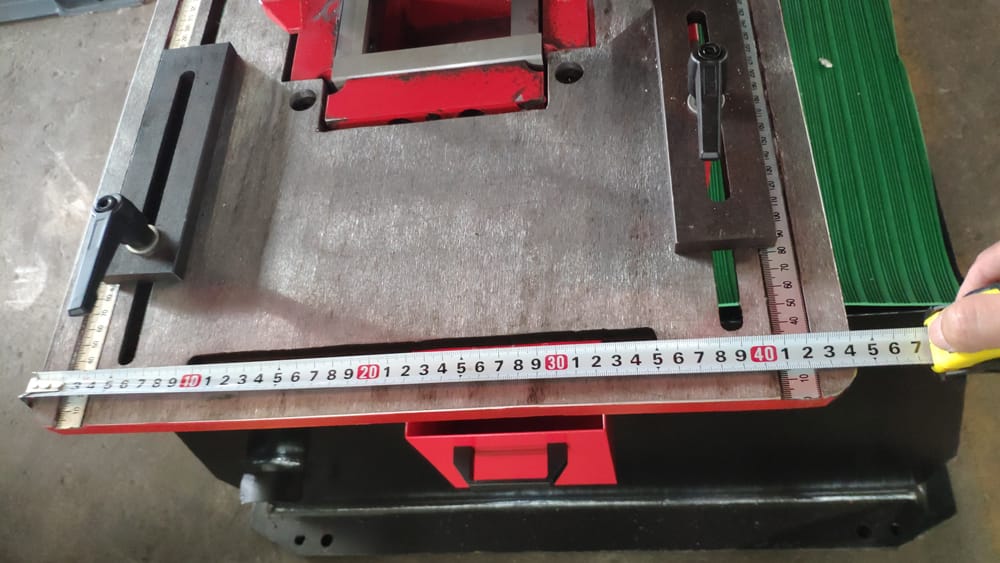

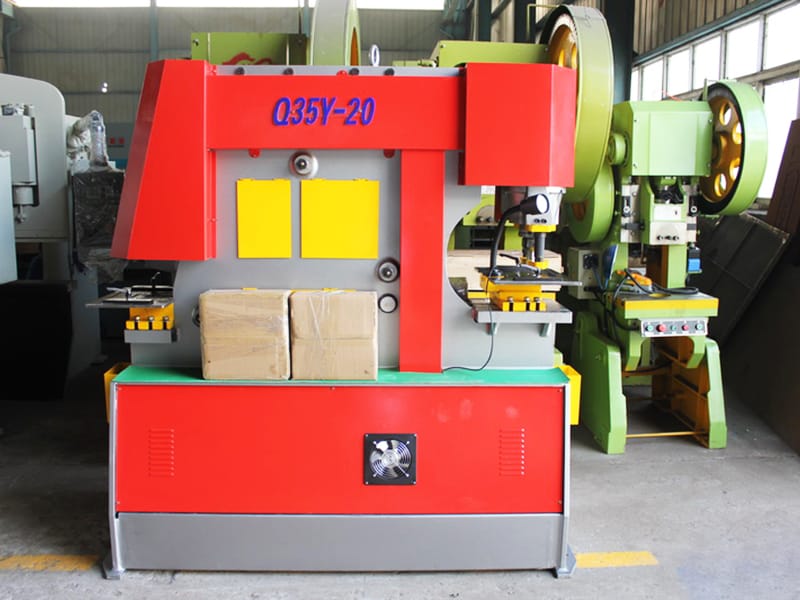

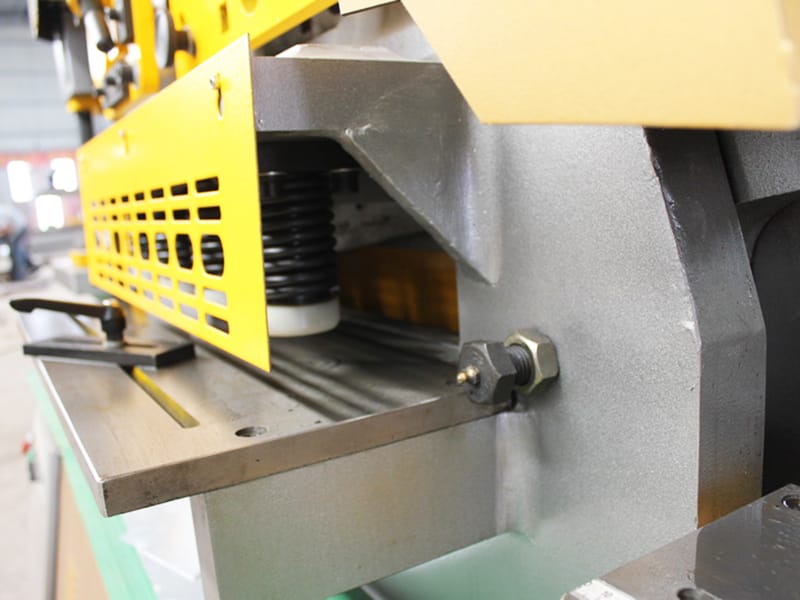

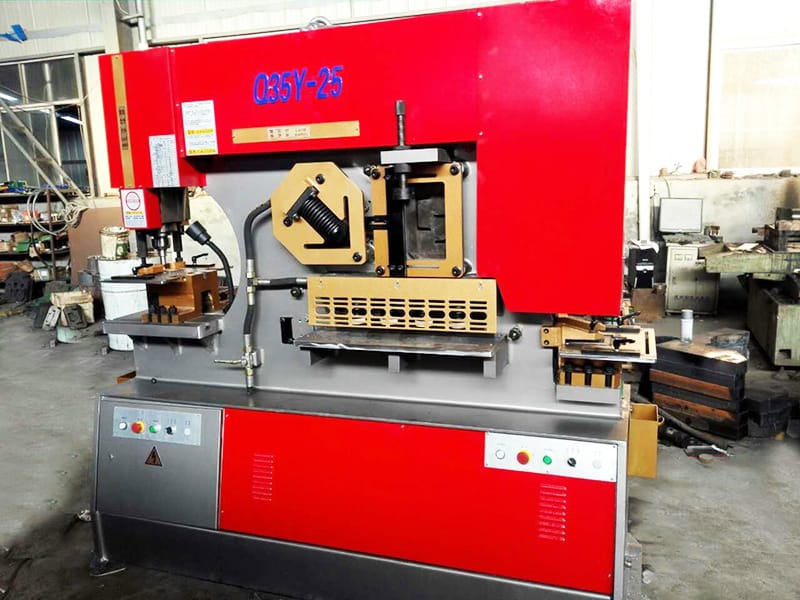

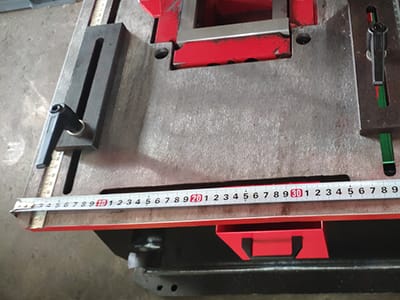

The hydraulic ironworker uses a hydraulic transmission, allowing it to shear punch and die shear a variety of plate steel, square steel, round steel, angle steel, channel steel, and I-beam steel. It is equipped with a shearing gauge.
Punching Pressure (ton)
60-250
Max.Shearingthickness of Steel Plates (mm)
16-50
Max. Diameter of Punching (mm)
25-40
Main Motor (kW)
5.5-32
| Material | Q35Y-16 | Q35Y-20 | Q35Y-30 | Q35Y-50 |
| Round Steel (mm) | 45 | 50 | 65 | 80 |
| Square Steel (mm) | 40×40 | 50×50 | 55×55 | 70×70 |
| Equilateral Angle Steel 90 Shear (mm) | 120×120×12 | 140×140×12 | 180×180×16 | 200×200×20 |
| Equilateral Angle Steel 45 Shear (mm) | 50×50×5 | 50×50×5 | 80×80×8 | 100×100×20 |
| T-Steel 90º Shear (mm) | 125×125×12 | 140×140×12 | 180×180×16 | 200×200×20 |
| T-Steel 45º Shear (mm) | 60×60×8 | 70×70×10 | 80×80×10 | 100×100×20 |
| I-Steel Shear (mm) | 120×74×5 | 160×86×6 | 280×124×10.5 | 400×200×16 |
| U-Steel (mm) | 120×53×5.5 | 160×60×6.5 | 280×86×11.5 | 400×200×16 |
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
| Punching Pressure (ton) | 60 | 90 | 120 | 160 | 200 | 250 |
| Max. Shearing Thickness of Steel Plates (mm) | 16 | 20 | 25 | 30 | 40 | 50 |
| Strength of Steel Plates | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angle of Shearing | 7° | 8° | 8° | 8° | 8° | 8° |
| Shearing Sizes of One Stroke (TxW) (mm) | 16x25 8x400 |
20x330 10x480 |
25x330 16x600 |
30x355 20 x 600 |
40x335 30x600 |
30x600 |
| Slider Stroke (mm) | 80 | 80 | 80 | 80 | 100 | 80 |
| Number of Stroke (min-l) | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 | 8-12 |
| Depth of Throat (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punching Thickness | 18 | 22 | 28 | 30 | 38 | 50 |
| Max. Diameter of Punching (mm) | 25 | 30 | 35 | 38 | 40 | 35 |
| Main Motor (kW) | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 32 |
| Overall Dimensions (LxWxH) (mm) | 1730x820 x 1900 | 1900x900 x 1950 | 2355x960 x 2200 | 2800x1100 x 2500 | 2800x1100 x 2500 | 3000x1150 x 2600 |
| Net Weight (kg) | 1800 | 2400 | 4000 | 6500 | 8000 | 12500 |
The hydraulic punching machine uses a hydraulic transmission, allowing it to shear punch and die shear a variety of plate steel...
The hydraulic notching machine is available in a fixed structure and adjustable angle structure.
