Cut-to-Length Line

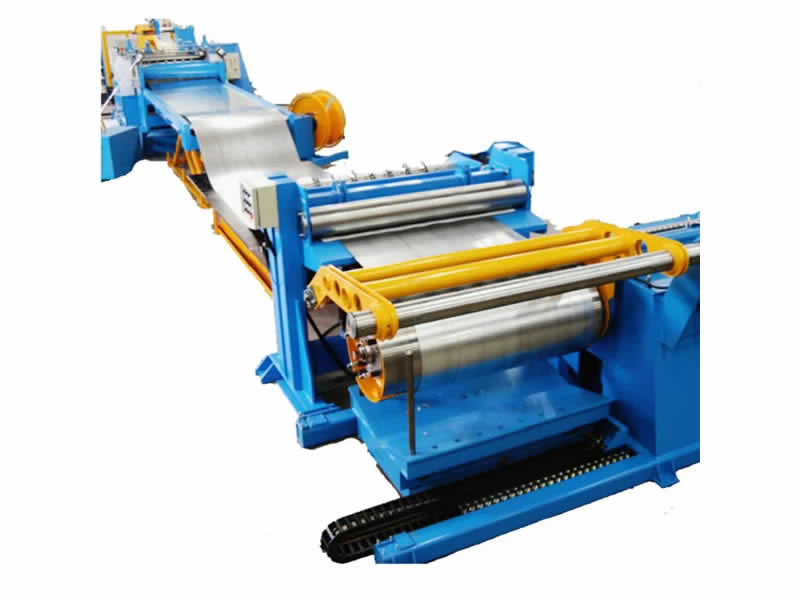

A Cut-to-Length Line is a high-efficiency system engineered to uncoil, level, and cut metal coils into flat sheets of precise, custom lengths. Designed for versatility, it accommodates a broad range of coil widths, thicknesses, and weights with reliable performance. Equipped with advanced leveling technology, the cutting line delivers exceptional flatness and surface quality, fully meeting stringent industrial requirements.

Request a Quote
Application

Widely used in steel structures, automotive manufacturing, household appliances, building materials, and metal service centers.

Process Flow

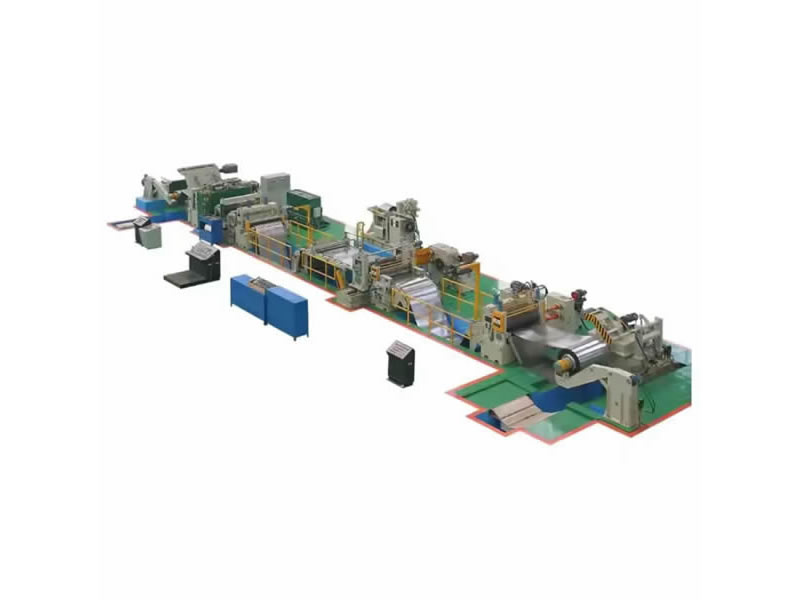

Coil storage → Coil loading → Uncoiling → Gantry feeding → Eight-roller rough leveling → Looping → Centering → Precision leveling → Measurement and sizing → Shearing and palletizing → Lifting table → Longitudinal discharge →Packaging

Options of Cut-to-Lengh Line
  • Hot-Rolled Cut-to-Length Line (Uncoiling–Leveling–Shearing–Stacking) Applicable materials: hot-rolled plates, pickled plates, stainless steel, automotive plates, shipbuilding plates, aluminum plates, and more.
    Model CTL-6 CTL-8 CTL-12 CTL-16 CTL-20/25
    Cutting Thickness (mm) 1.5-6.0 2-8 3-12 4-16 6-20/25
    Material Width (mm) 800-2000 800-2000 800-2000 800-2200 800-2500
    Cut-to-Length Size (mm) 1000-6000 1000-8000 1000-12000 2000-14000 2000-14000
    Cutting Accuracy (mm) ±1.0 ±1.0 ±1.0 ±1.0 ±1.0
    Diagonal Tolerance (mm) ±1.0 ±1.0 ±1.5 ±1.5 ±1.5
    Leveling Accuracy (mm/m²) < 1.0 < 1.0 < 1.5 < 1.5 < 1.5
    Line Speed (m/min) 50 40 40 40 30
    Coil Weight (t) 20, 30 20, 30 20, 35 20, 35 20, 35

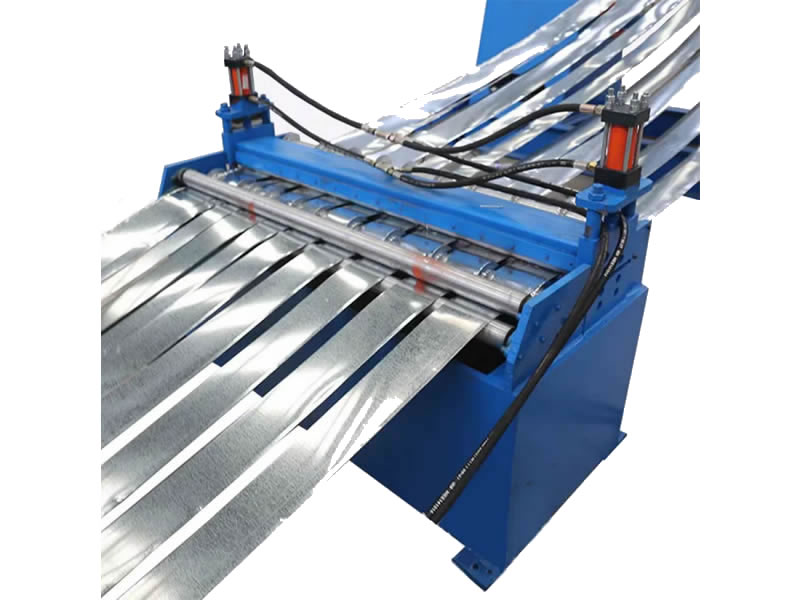

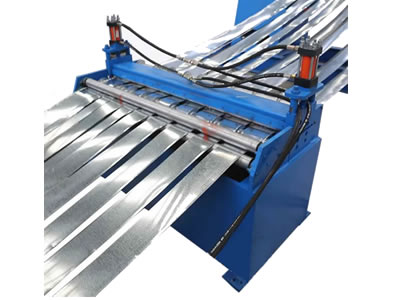

  • Cold-Rolled Cut-to-Length Line (Uncoiling–Slitting–Recoiling) Applicable materials: cold-rolled plates, electrolytic galvanized plates, hot-dip galvanized plates, color-coated plates, stainless steel, aluminum plates, copper plates, and more.
    Model CTLS-1 CTLS-2 CTLS-3 CTLS-4
    Cutting Thickness (mm) 0.15-1.0 0.2-2.0 0.3-3.0 0.5-4.0
    Material Width (mm) 300-1250 300-1600 300-1800 300-2000
    Cut-to-Length Size (mm) Customized
    Length Accuracy (mm) ±0.05 ±0.05 ±0.10 ±0.10
    Diagonal Tolerance < 3% < 3% < 3% < 3%
    Leveling Accuracy (mm/m²) ≤1 ≤1 ≤1 ≤1
    Line speed (m/min) 200 200 180 150
    Coil Weight (t) 10, 15 10, 15, 20 15, 20, 25 20, 25, 30
  • Cold-Rolled Cut-to-Length Line (Uncoiling–Leveling–Shearing–Stacking) Applicable materials: cold-rolled plates, electrolytic galvanized plates, hot-dip galvanized plates, color-coated plates, stainless steel, aluminum plates, copper plates, and more.
    Model CTLV-1 CTLV-2 CTLV-3 CTLV-4
    Cutting Thickness (mm) 0.2-1.0 0.3-2.0 0.4-3.0 0.5-4.0
    Material Width (mm) 300-1250 300-1600 300-1800 300-1800
    Finished Length (mm) 300-3000 300-3000 300-4000 400-6000
    Length Accuracy (mm) ±0.3 ±0.3 ±0.3 ±0.3
    Diagonal Accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5
    Leveling Accuracy (mm/m²) < 1 < 1 < 1 < 1
    Line Speed (m/min) 70 60 60 60
    Coil Weight (t) 5, 10, 15 10, 15, 20 10, 15, 20 20, 25, 30
