QC11K(Y) Hydraulic Guillotine Shear

QC11K(Y) Hydraulic Guillotine Shear

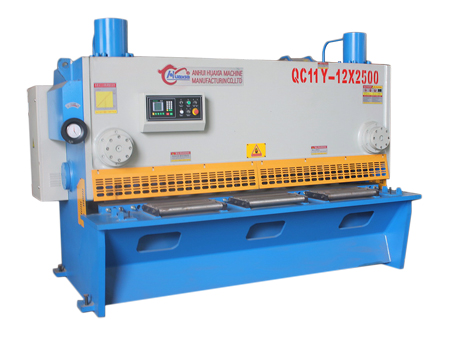

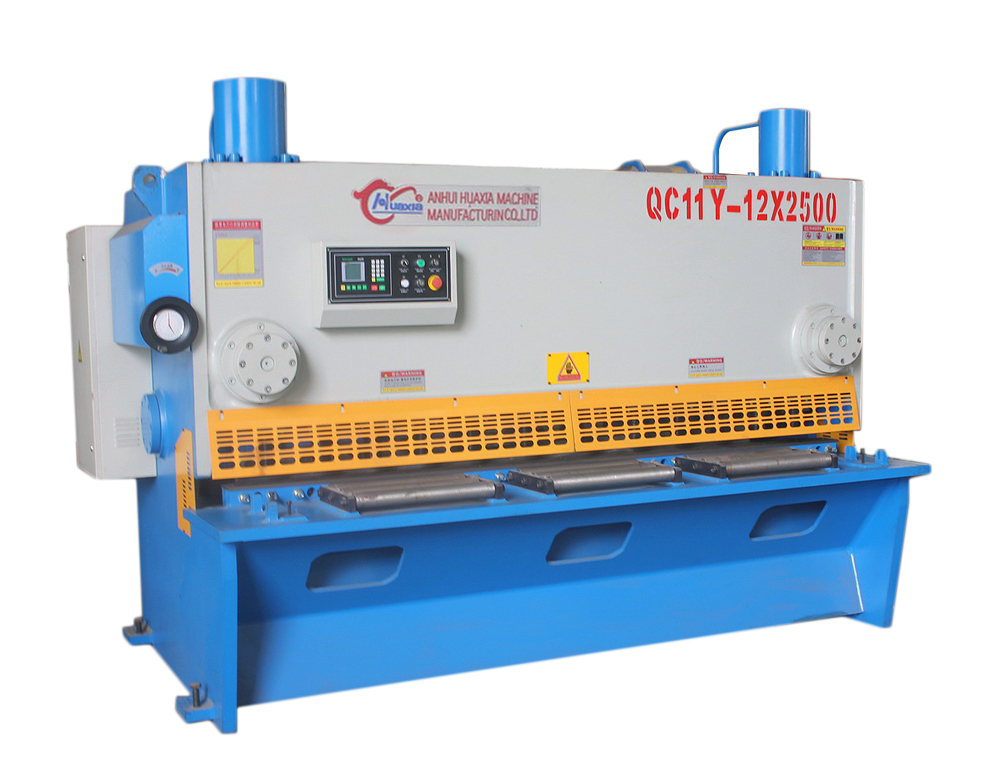

The QC11K(Y) hydraulic sheet metal shear features a fully welded structure processed by a stress-relief treatment that delivers a high degree of rigidity. The shear machine is operated by a single button for convenient operation.

6×3200
8×2500
10×3200
12×4000

Features

The main body of the feeding platform is welded, and it is processed with a stress-relief treatment for high rigidity.

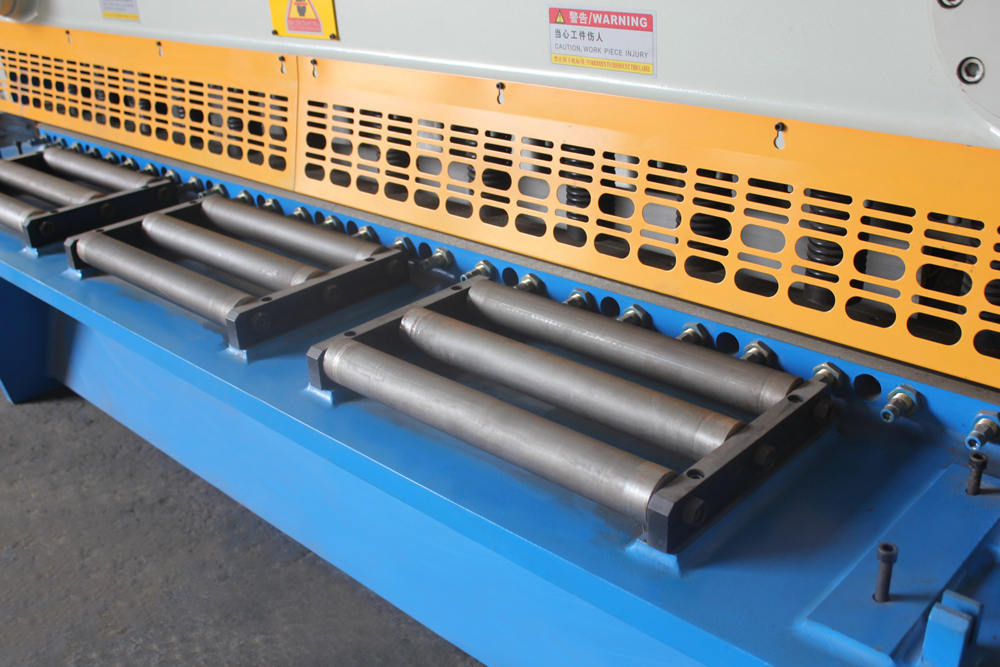

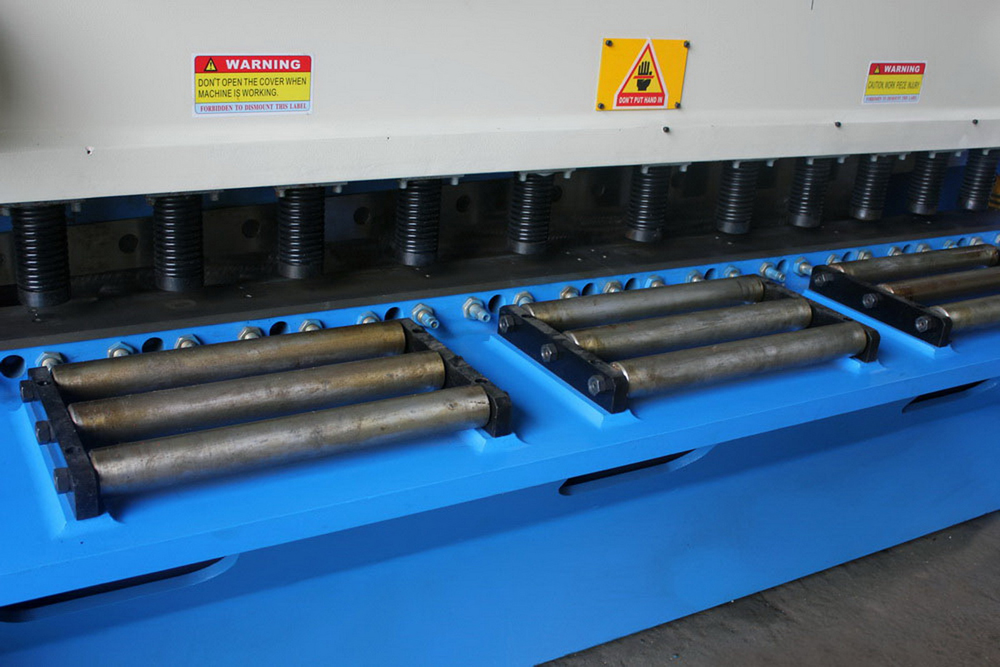

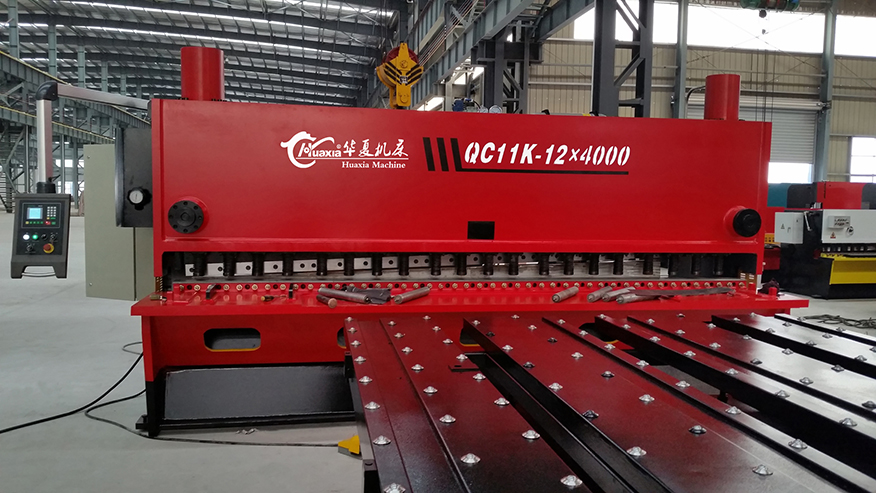

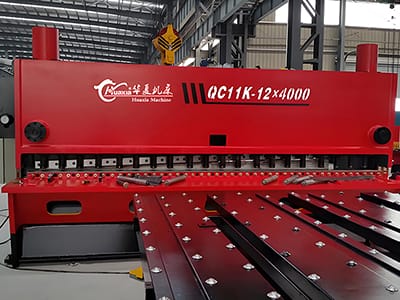

The bed uses a ball transfer mechanism, so steel sheet runs smoothly and there is no resistance.

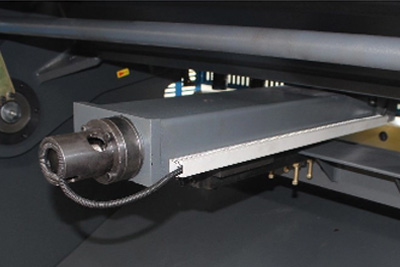

The sheet metal shear's X and Y axis equipped with a TBI ball screw and linear guide.

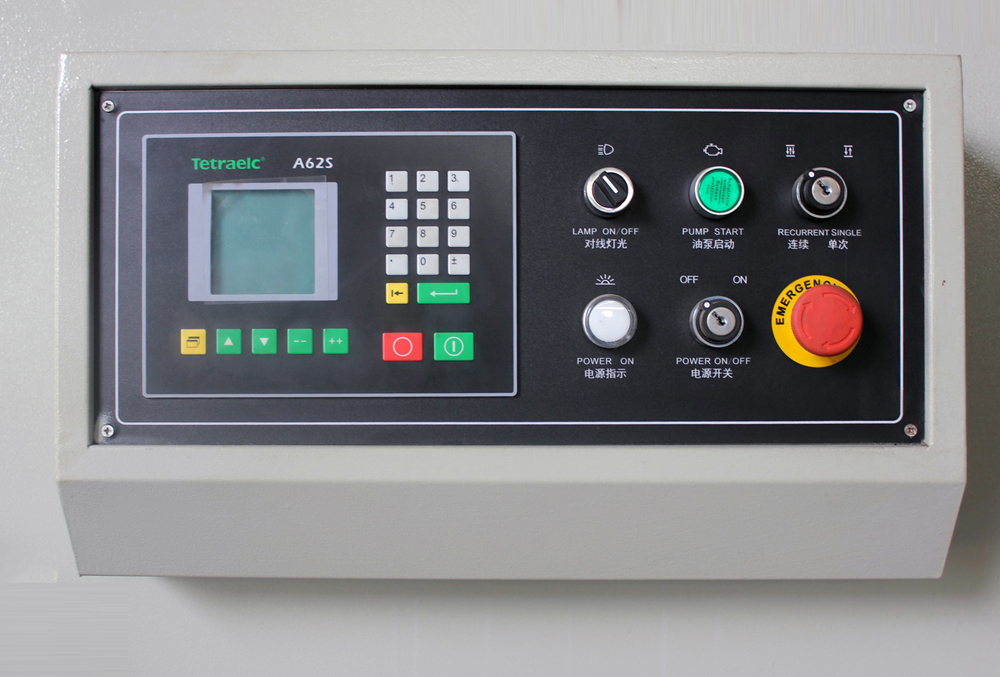

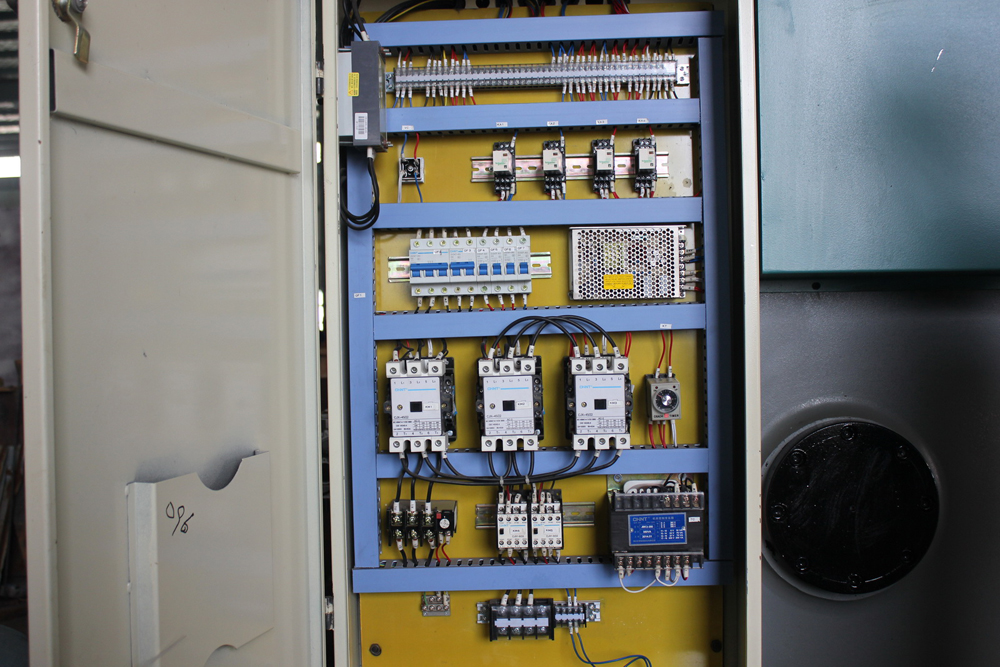

The shear is controlled by an industrial computer equipped with a LEATA control card's CNC system, achieving AutoCAD graphics conversion, and it is equipped with a mold management system, achieving automatic positioning of the steel sheet.
The shear operated by a single button with breakpoint processing, and has a workpiece counting function. It can simulate the processing track and run with no load.

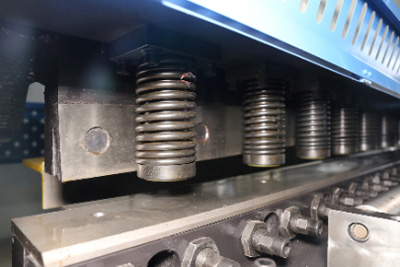

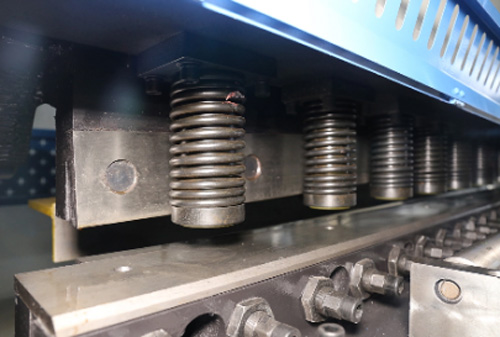

The shear is equipped with multiple hydraulic clamps, avoiding crushing the sheet.
Aluminum alloy flexible coupling is adopted to ensure the accuracy of transmission and correction.

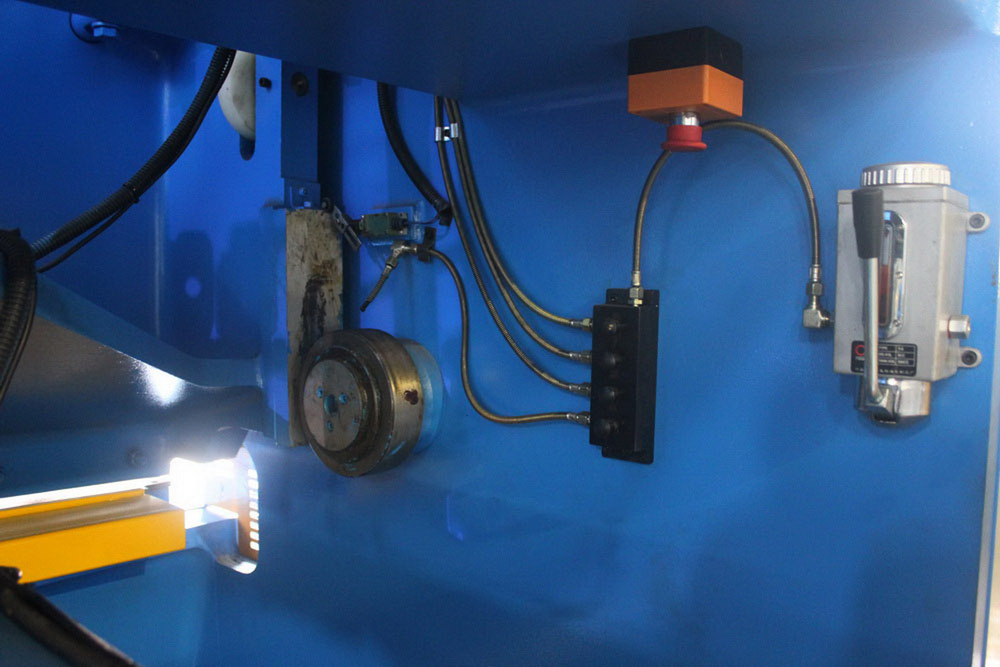

Centralized lubrication system can lubricate the machine automatically, so it is not necessary to add lubrication to each point manually. This reduces friction and improves the machine's operational life span.

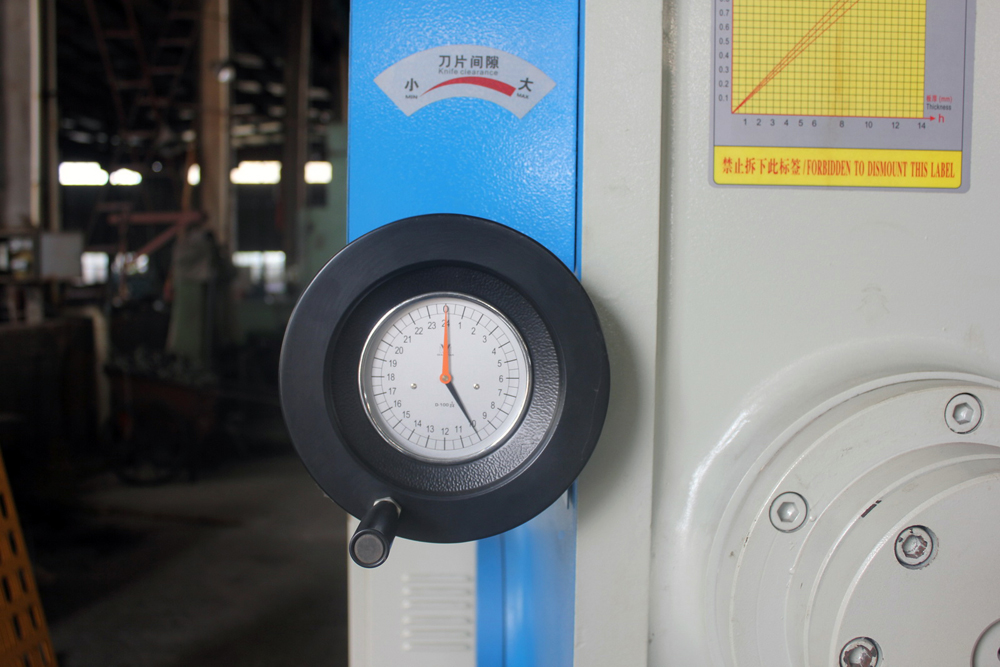

Gallery

Parameters

Type	Ma×. cutting thickNess	Ma×. cutting width	Worktable panel thickNess	wallboard thickNess	thickNess of kNife rest upstand	Anti-strength of plate	Stroke times	Throat depth	Blade length	Main motor	Dimension(L×W×H)
6×3200	6	3200	30	30	50	450	13-22	130	3300	7.5	3900×1520×2100
8×2500	8	2500	35	35	50	450	14-24	130	2600	7.5	3150×1580×2050
8×3200	8	3200	35	35	50	450	12-21	130	3300	7.5	3900×1700×2150
8×4000	8	4000	40	35	50	450	8-14	130	4100	11	4700×1840×2350
10×3200	10	3200	40	40	50	450	10-18	130	3300	11	3900×1730×2250
10×4000	10	4000	40	45	50	450	7-12	130	4100	18.5	4750×1900×2450
12×4000	12	4000	40	50	60	450	7-12	130	4100	18.5	4800×1970×2550
16×4000	16	4000	45	60	60	450	9-12	100	4100	22	4850×2100×2750
16×6000	16	6000	50	70	80	450	5-10	130	6100	37	7100×2460×2920
20×3200	20	3200	50	70	80	450	5-14	130	3300	22	4100×2080×2550
20×4000	20	4000	50	70	80	450	5-12	100	4100	30	4900×2200×2800
25×3200	25	3200	60	70	70	450	5-11	100	3300	37	4100×2150×2650
25×4000	25	4000	60	80	80	450	5-10	100	4100	37	4900×2280×2900
