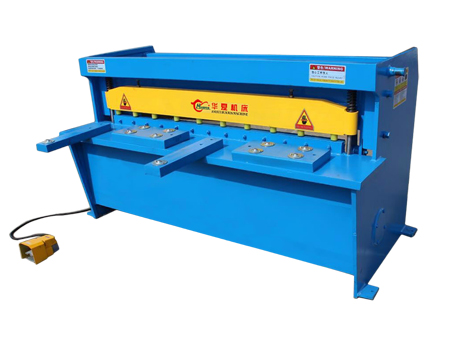

Q11 Mechanical Sheet Metal Shear

Q11 Mechanical Sheet Metal Shear

Q11 mechanical sheet metal shear featuring single-side mechanical strive makes it easy to operate. It's widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal fabrication is required.

  • 3x1200
  • 4x2000
  • 6x2500
  • 8x2500
Contact Us for More INFO
Features
  • The shearing machine structure is simply easy to operate and easy to maintain. It is used to shear steel sheets in a straight line.
  • The machine is controlled using a foot pedal, and it can shear sheets in a single process or continuous processes. The mechanical shearing machine's shearing rate is high, at 2-3 times higher than the hydraulic pendulum shearing machine.
  • The machine blade is square, and comes with 4 blades for use in shearing, thus prolonging the service life of each blade.

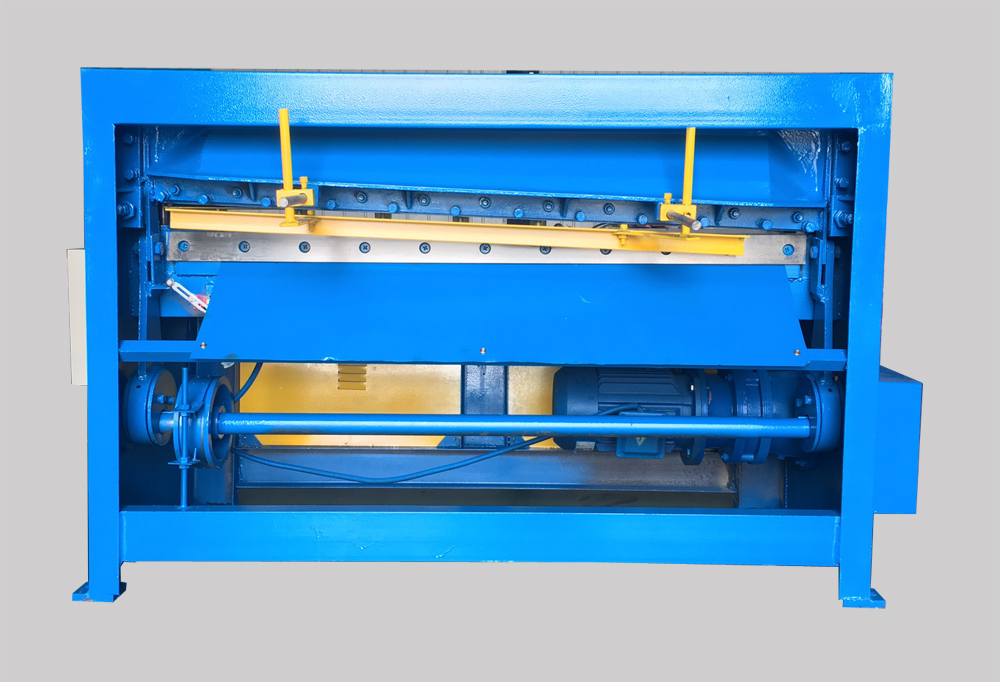

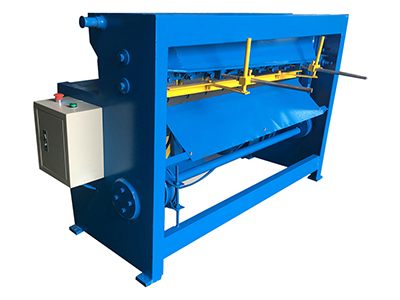

Gallery

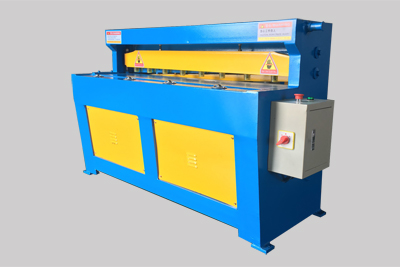

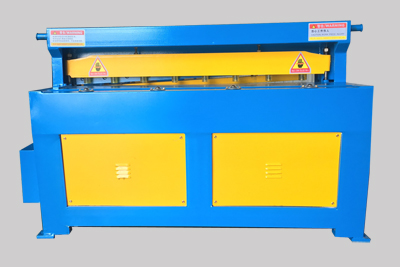

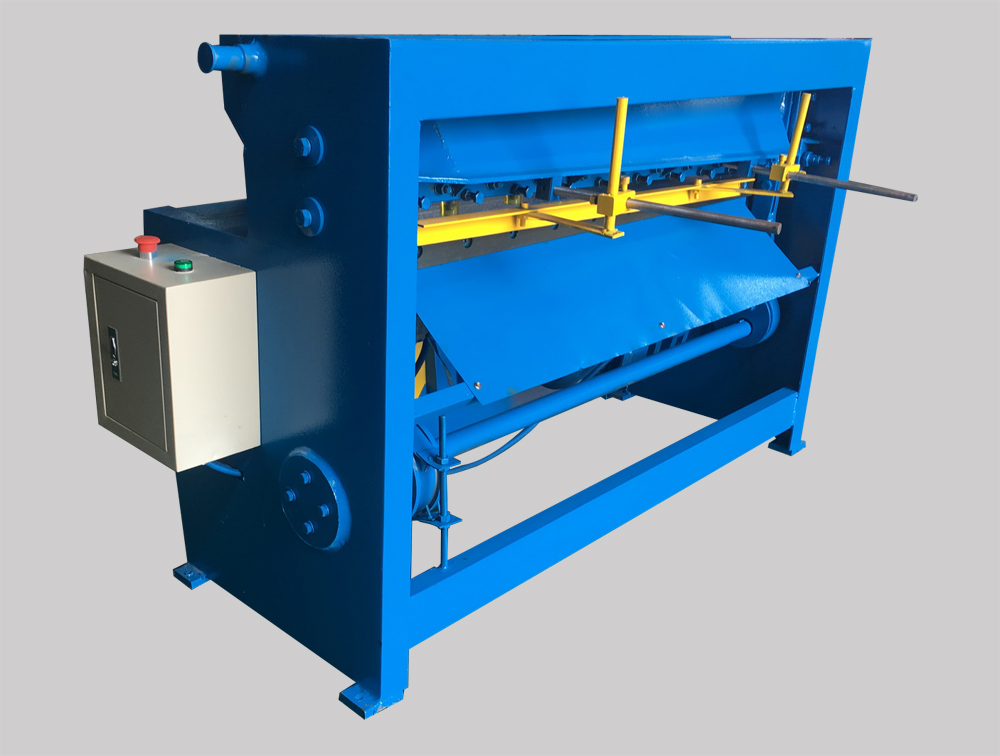

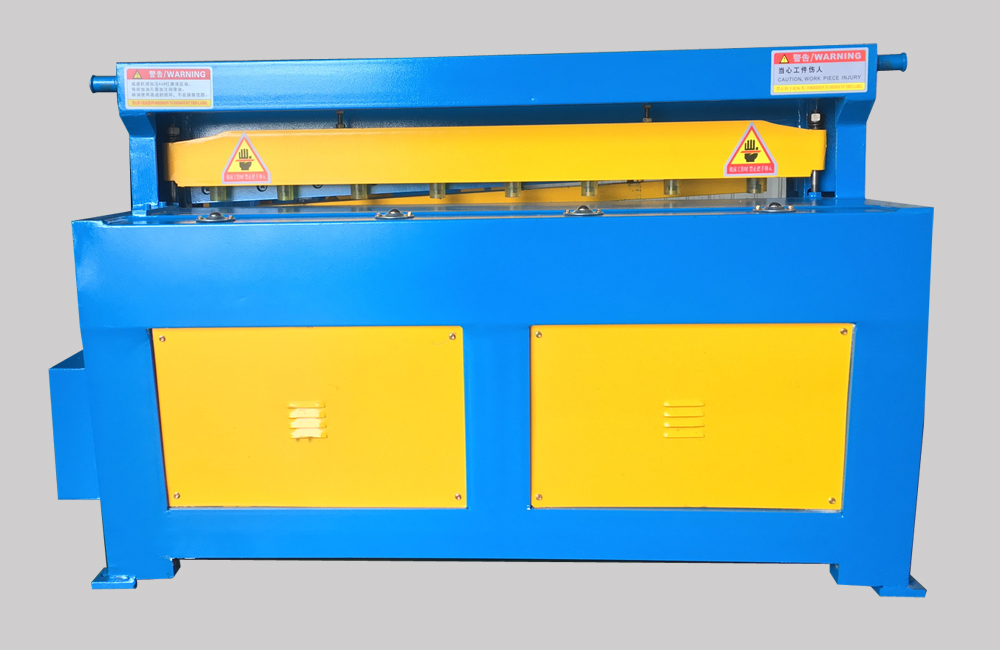

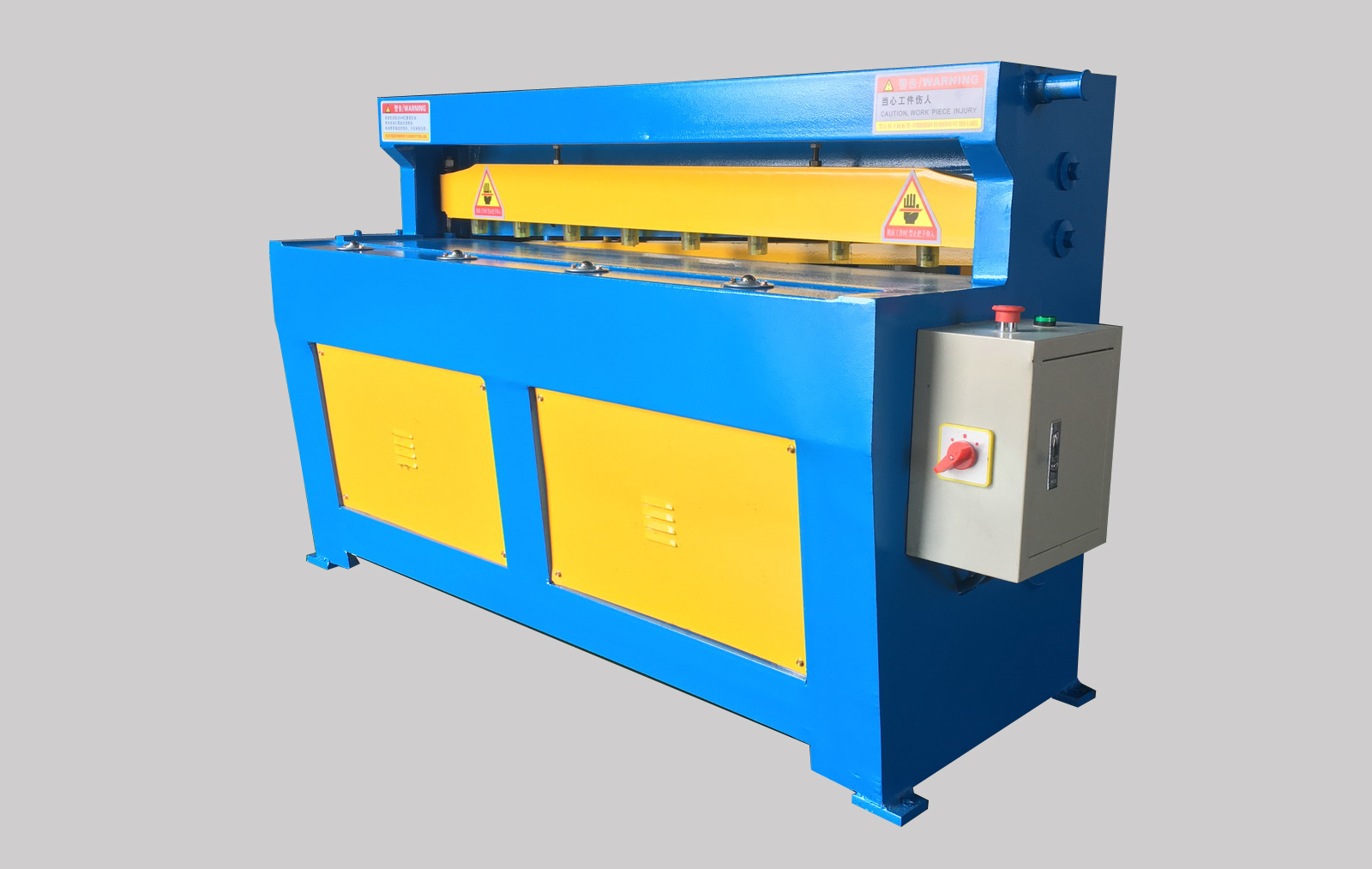

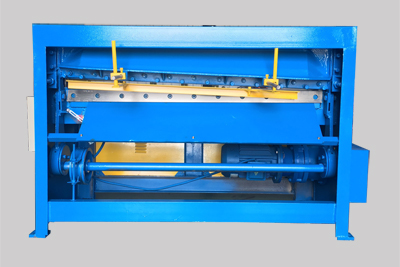

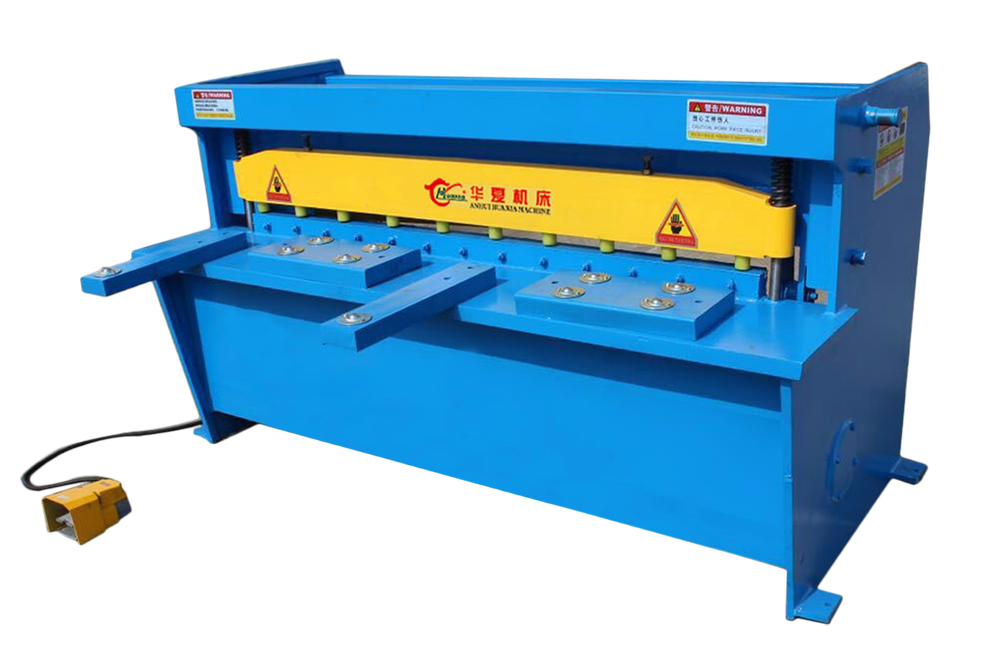

Q11 Mechanical Sheet Metal Shear
Q11 Mechanical Sheet Metal Shear
Q11 Mechanical Sheet Metal Shear
Q11 Mechanical Sheet Metal Shear
Technical Parameters
Model Max cutting Thickness (mm) Max cutting Width (mm) No. ofstrokes (min-1) Shearing angle (°) Back gaugerange (mm) Power of main motor (kW) Overall dimension (mm)
3x1200 3 1200 20 2°30＇ 350 3 2015x1500x1300
3x1300 3 1300 20 2°30＇ 350 3 2115x1500x1300
3x1500 3 1500 20 2°30＇ 350 3 2515x1500x1300
4x2000 4 2000 20 1°30＇ 500 5.5 3200x1500x1610
4x2500 4 2500 20 1°30＇ 500 5.5 3580x1300x1610
4x3200 4 3200 20 1°30＇ 600 7.5 4380x1900x1600
4x4000 4 4000 20 2° 600 7.5 4650x1820x1700
6.3x2000 6.3 2000 24 2° 500 7.5 3180x1765x1550
8x2000 8 2000 24 2° 500 11 3180x1765x1550
6x2500 6 2500 24 2° 500 7.5 3680x2200x2020
6x3200 6 3200 20 1°45' 650 7.5 4300x2250x2150
8x2500 8 2500 20 2°30＇ 650 11 3680x2250x2450
13x2500 13 2500 30 3° 700 15 3680x 2330x2500
16x2500 16 2500 30 3° 700 22 3680x 2800x2450
20x2500 20 2500 25 3° 750 30 3950x2800x2900
25x2500 25 2500 23 3° 750 45 3970x3120x 3445

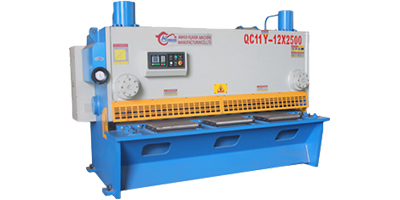

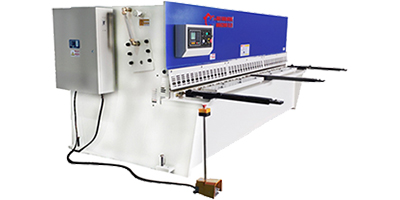

Other Products
