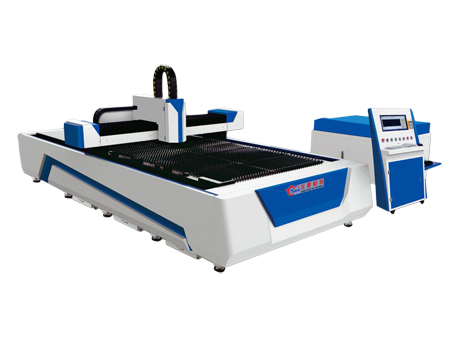

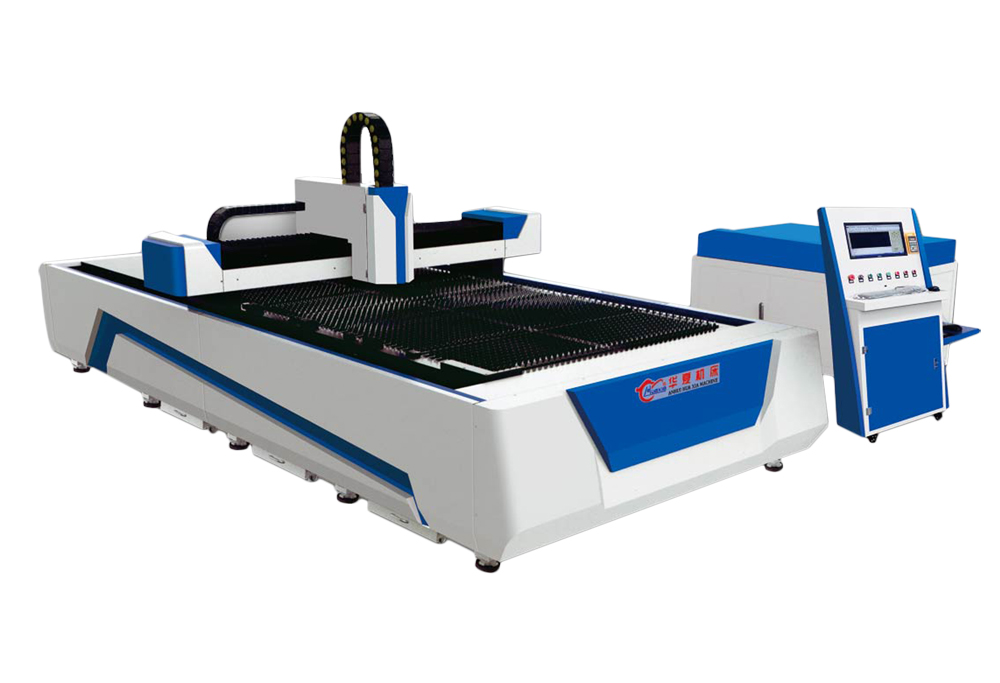

CNC Laser System Metal Cutting Machine
The laser cutting tube and sheet machine can shear sheets made from various materials, including carbon steel, stainless steel, aluminum alloy and copper. These metals and sheets can all be in various thicknesses.
- 1000W
- 1500W
- 3000W
Features
- The motor is not situated on the beam, and is instead located on both sides in order to reduce the bed load, facilitating the cutting process of both metal plate and sheet.
- The entire machine area uses an optimal laser beam in order to achieve uniform, stable and high quality cutting sections and performance.
- The machine combines an IPG laser generator, Raycus digital control, Max etc drive system and a Rofin cutting parameters library, significantly improving the processing efficiency.
- The cutting machine is an automatic exchange bed, and its interface is a humanized operation.
- Designed with embedded computer, this laser cutting machine can be programmed and operated with remote control, achieving practical user experience.
- The transmission system is Taiwan's HIWIN guide rail with a smooth, accurate trajectory, with the accuracy significantly improved over other models available on the market today.

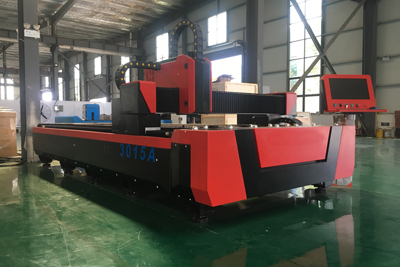

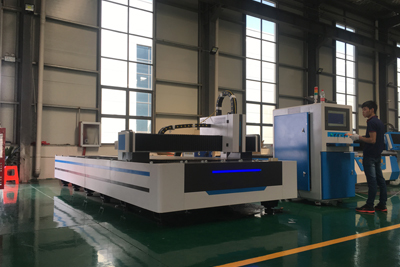

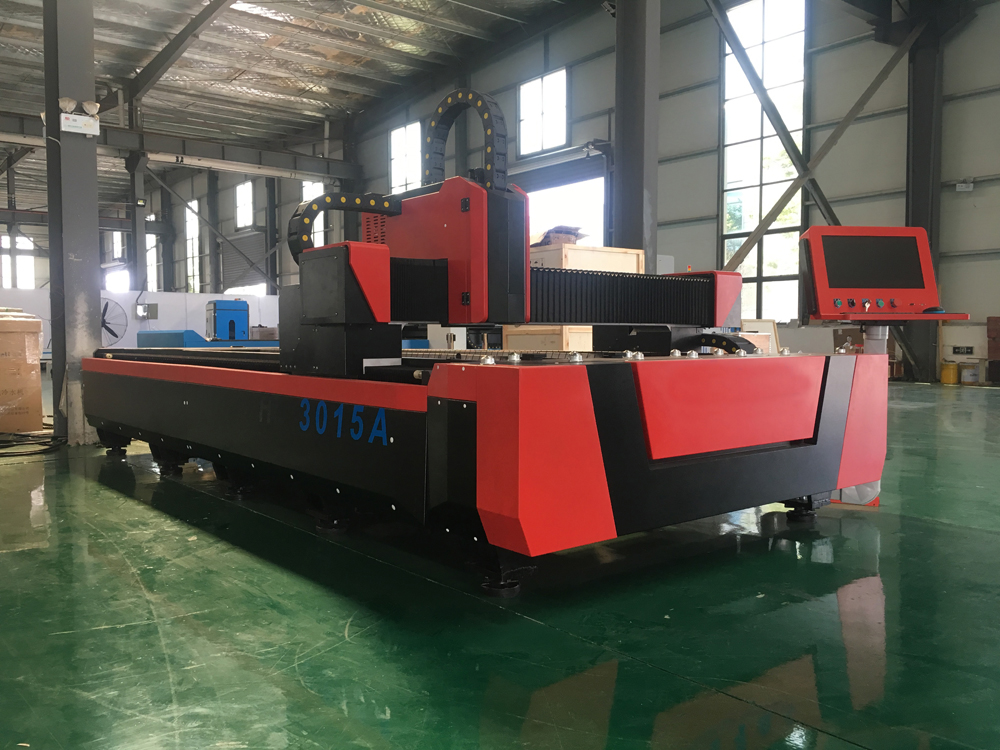

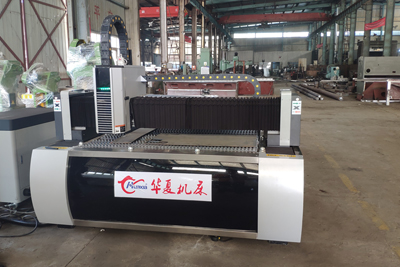

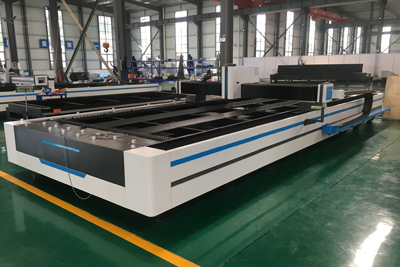

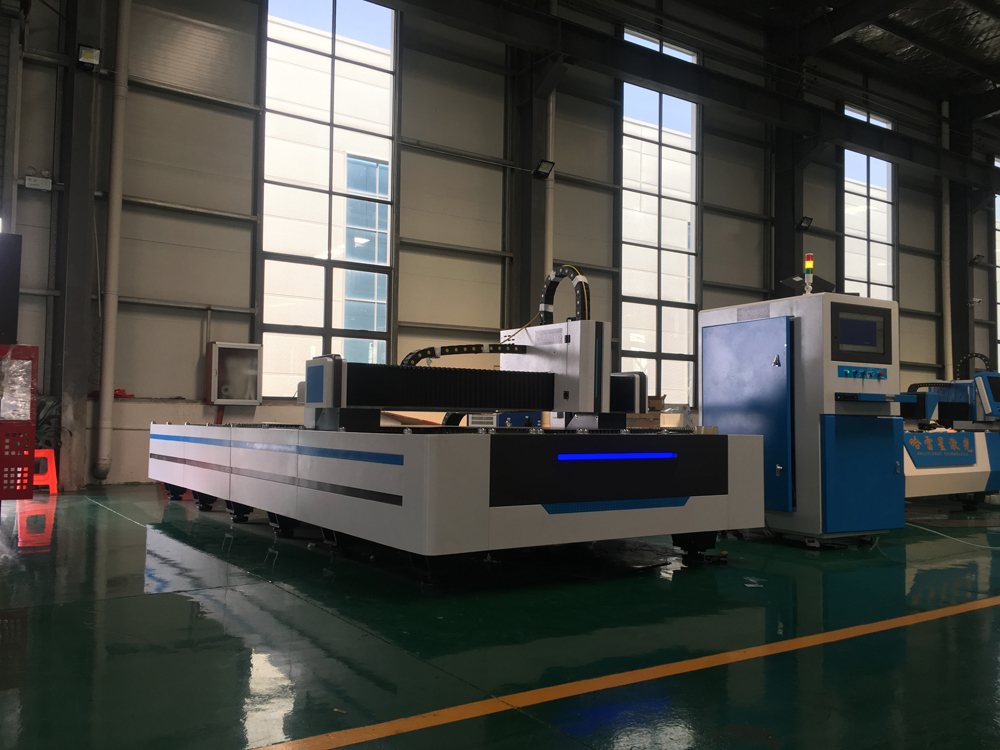

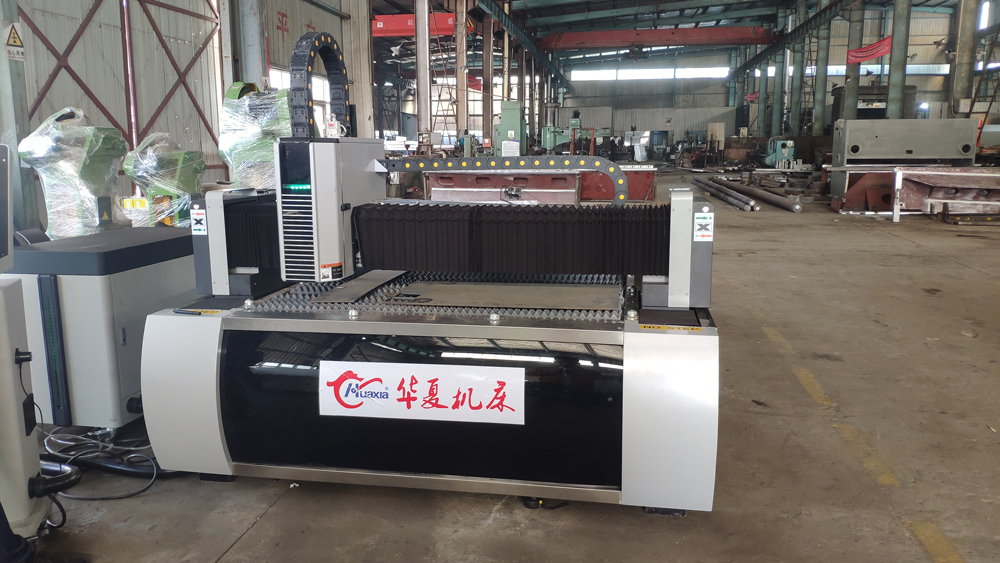

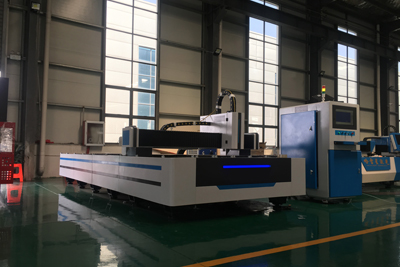

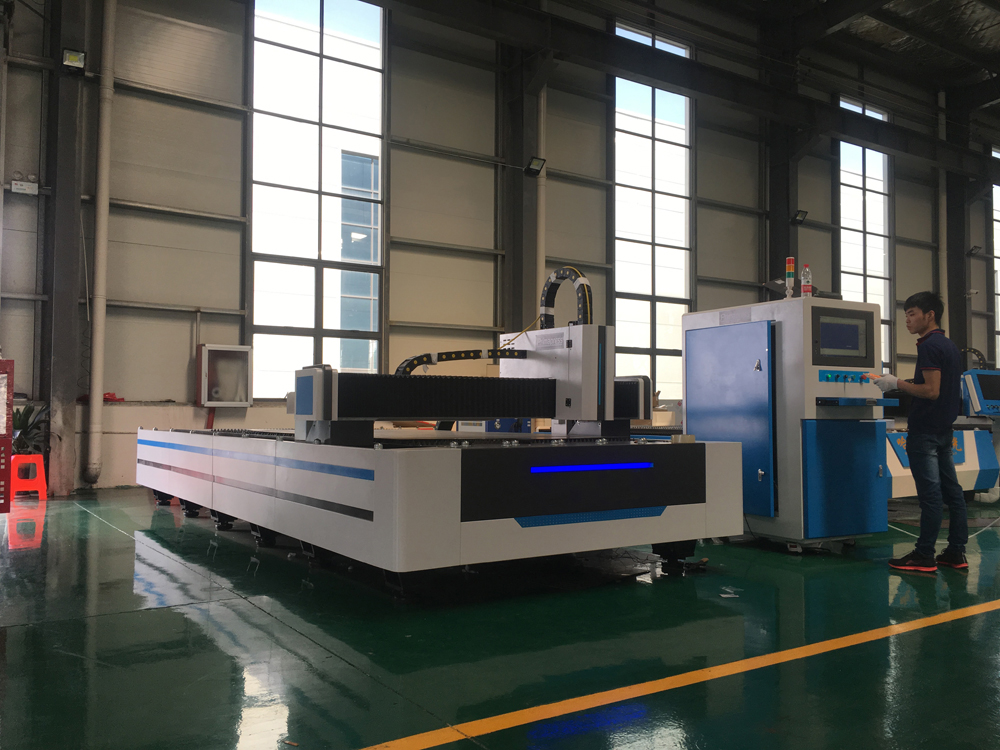

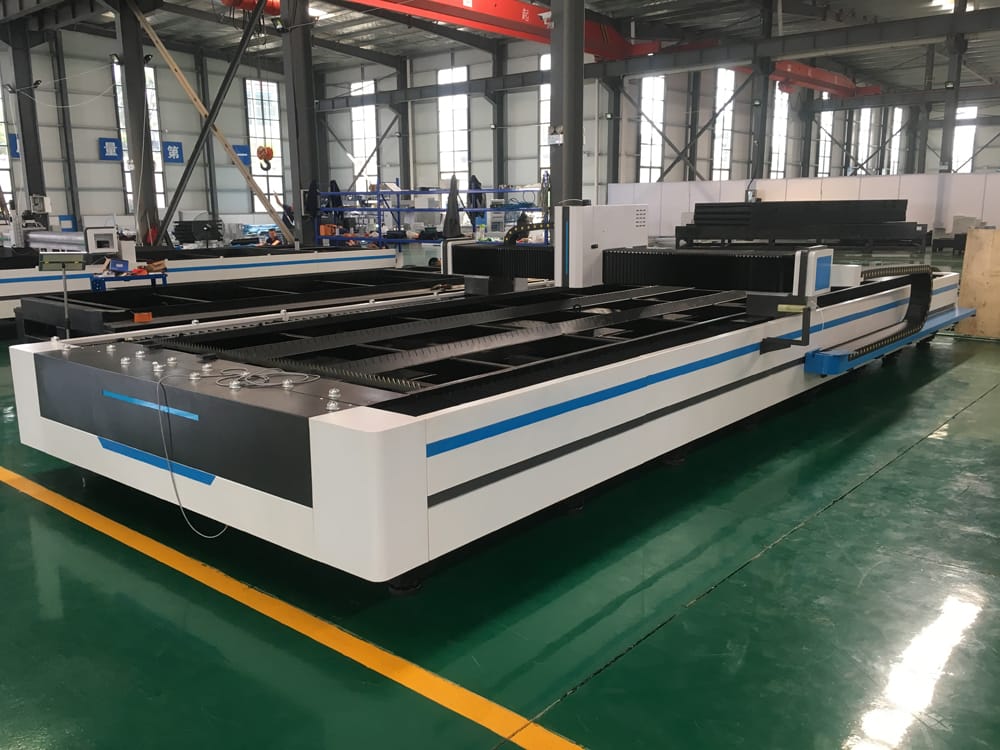

Gallery
Technical Parameters
| Technical Specifications | Unit | 3015/500W | 750 | |
| Cutting thickness | MS | mm | 6 | 8 |
| SS | mm | 3 | 4 | |
| Cuuting accuracy | mm | ±0.03 | ±0.03 | |
| MAX positioning speed | mm | 100 | 100 | |
| MAX acceleration | G | 1.5 | 1.5 | |
| X axis track | mm | 3050 | 3050 | |
| Y axis track | mm | 1550 | 1550 | |
| Z axis track | mm | 120 | 120 | |
| laser power | W | 500 | 750 | |
| Max load of worktable | KG | 250 | 250 | |
| machine weight | KG | 4500 | 4500 | |
| Noise | db | ˂75 | ˂75 | |
| Diemension | mm | 4500x3100x2200 | ||
Structure

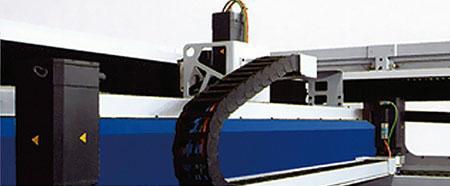

X axis bilateral synchronous drive

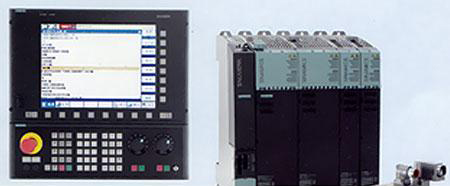

Numerical control system and drive

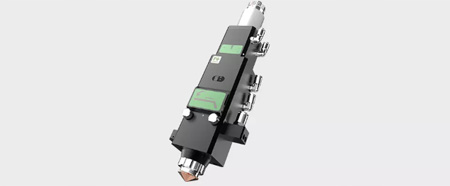

Laser cutting head
