W12 4-roll Plate Rolling Machine

W12 4-roll Plate Rolling Machine, CNC Roll Bender

The 4 roll plate bending machine is equipped with an NC system, which improves the degree of automation. The bending machine is commonly used in petroleum, chemical industry, boilers, shipbuilding, metal structure and machinery manufacturing industry.

  • W12-8×2500
  • W12-12×2000
  • W12-25×3000
  • W12-40×2500
Contact Us for More INFO
Features
W12 4-roll Plate Rolling Machine
  • The bending machine has 4 rolls. The upper roll uses a mechanical transmission, while the bottom and side rolls use lift hydraulic driving. The system features an electric centralized operation system.

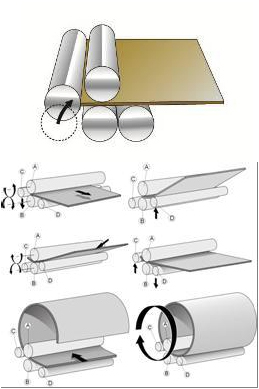

  • The bending machine is designed with a pre-bending function, both end of metal plate can be pre-bended, and cylindrical workpiece, arc workpiece and tapered workpiece with a certain tapering range can also be rolled on this plate rolling machine through one time feeding process. Metal plate ends can be pre-bended with a minimized residual rectangularity, featuring high work efficiency. Besides, the plate bender has ability for rough leveling on metal plate.
Gallery

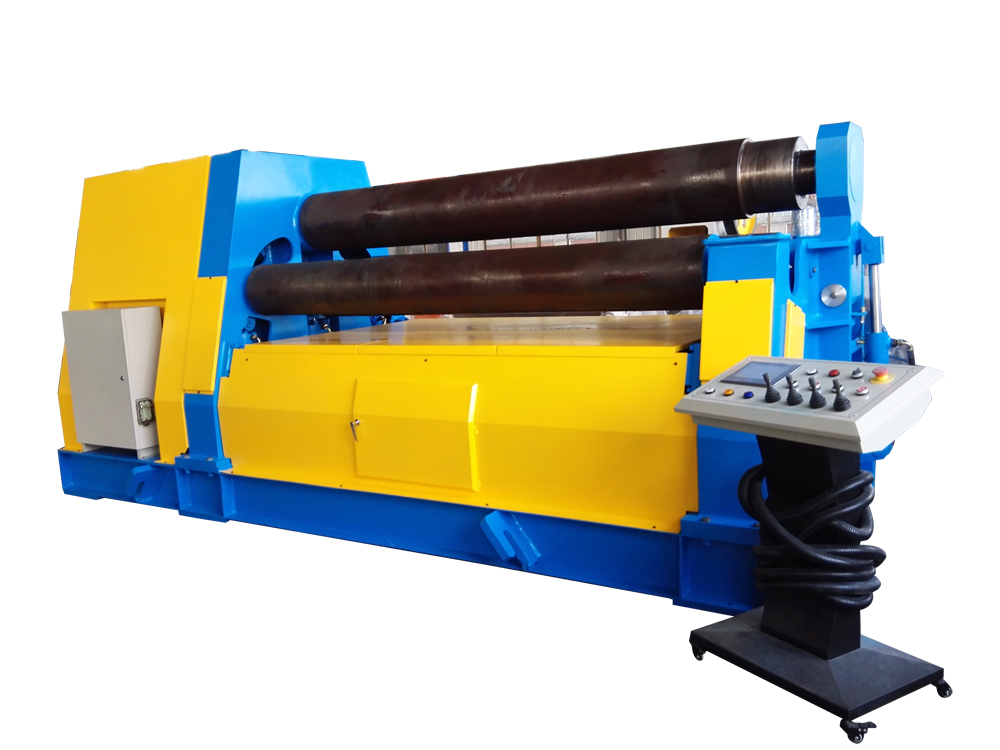

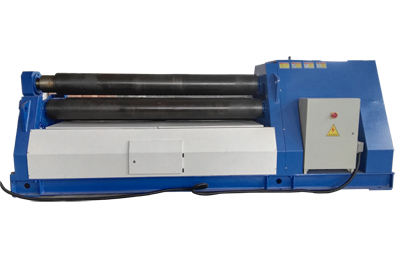

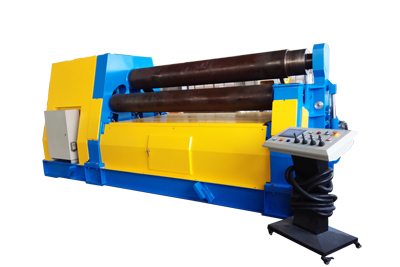

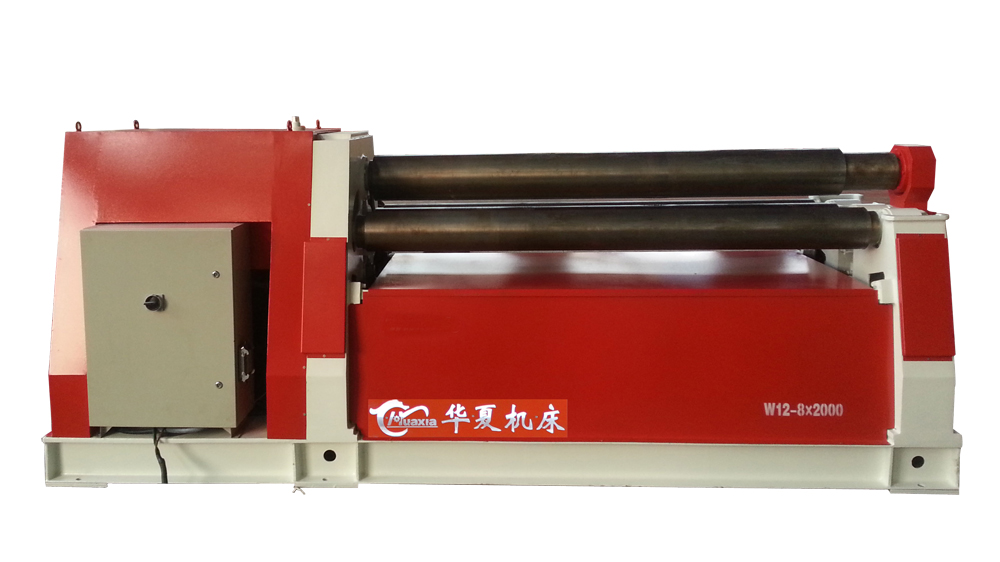

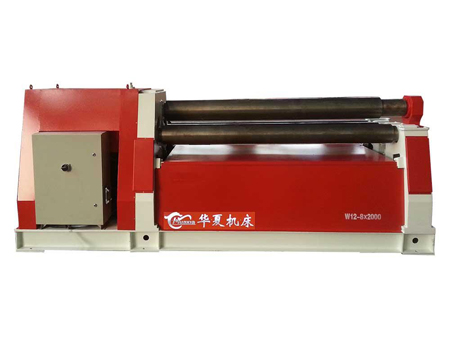

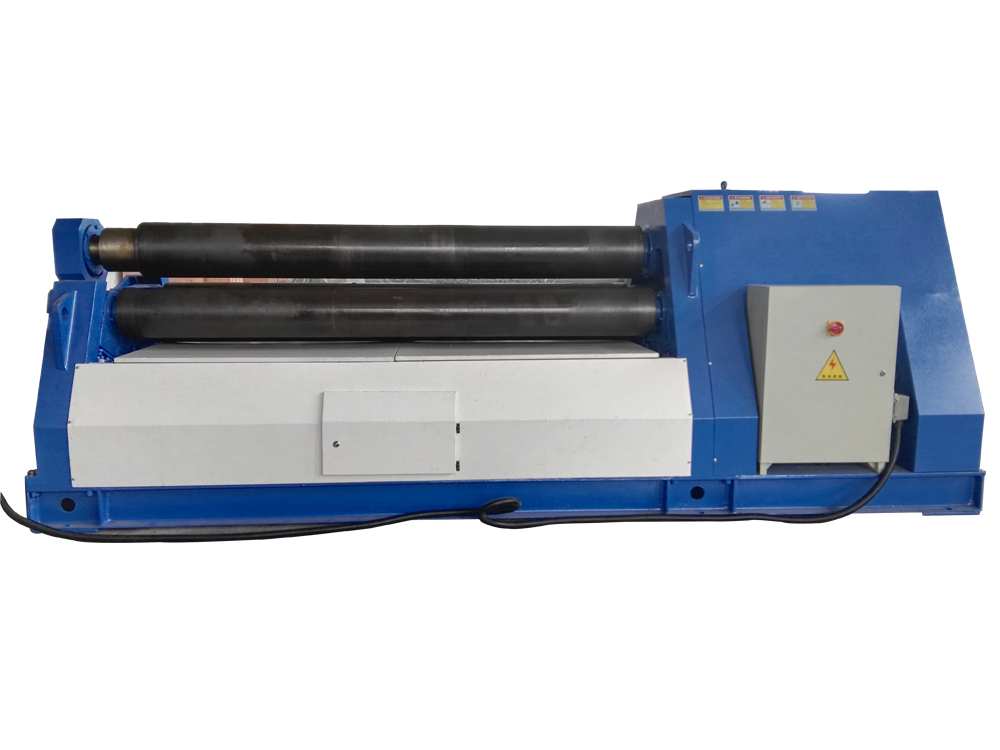

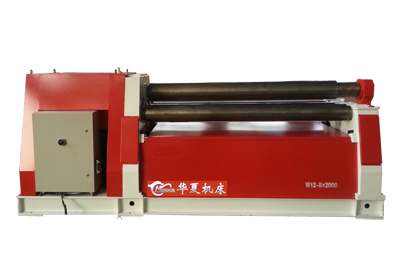

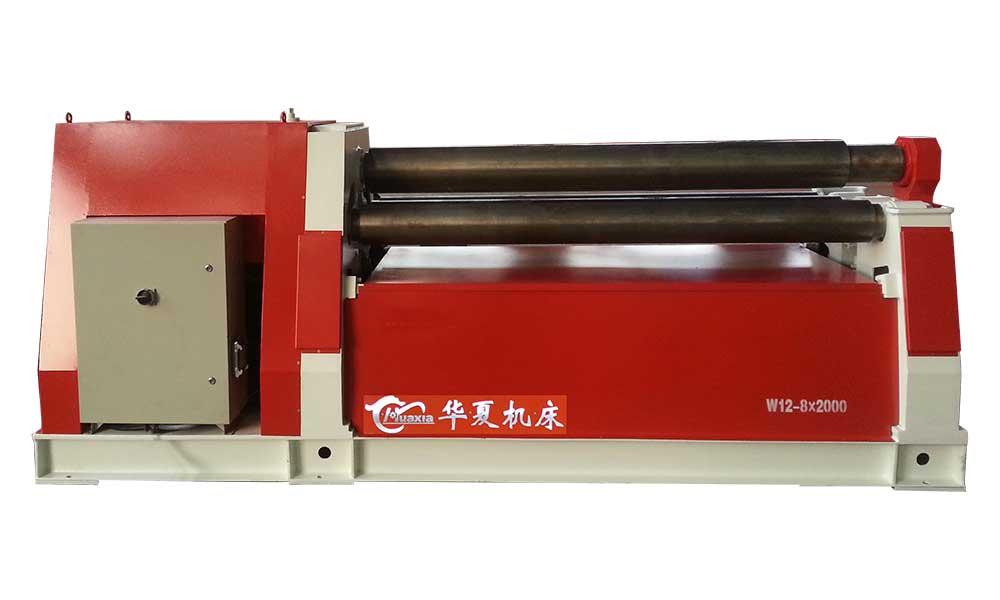

  • W12 4-roll Plate Rolling Machine
  • W12 4-roll Plate Rolling Machine
  • W12 4-roll Plate Rolling Machine
Parameters
Model W12-8×2500 W12-12×2000 W12-25×3000 W12-40×2500
Max. thickness of plate mm 8 12 25 40
Max. width of plate mm 2500 2000 3000 2500
rolling speed m/min 6.1 4 5 4
Thickness of pre-bending mm 6 10 22 36
Min. dia. of plate in full load mm 750 850 1150 1300
Dia. of upper roller mm 300 380 480 560
Dia. Of lower roller mm 280 340 460 520
Dia. Of side roller mm 230 280 380 420
Main power kW 15 30 55 60
Dimension(L)mm 6100 7600 9000 8700
Dimension(W)mm 2000 2000 3200 3500
Dimension(H)mm 2070 2150 2500 2900
