W11 Hydraulic 3 Roll Bending Machine
The W11 hydraulic 3 roll bending machine uses mechanical lifting and mechanical transmission. It is no need for operator to take out the metal plate manually. This equipment can be customized according to client requirements.
- W11-6×2000
- W11-12×2500
- W11-16×3200
- W11-40×2000
Features
- Three-roll plate rolling machine uses hydraulic overturn method to discharge metal plate with specification of 25×2500mm and above.
- Special side wheels are available for making rolled angle iron, rolled round tube and other steel profiles according to customer requirements.
- Special specifications can be customized: a workpiece length between 1000-4000mm is optional.

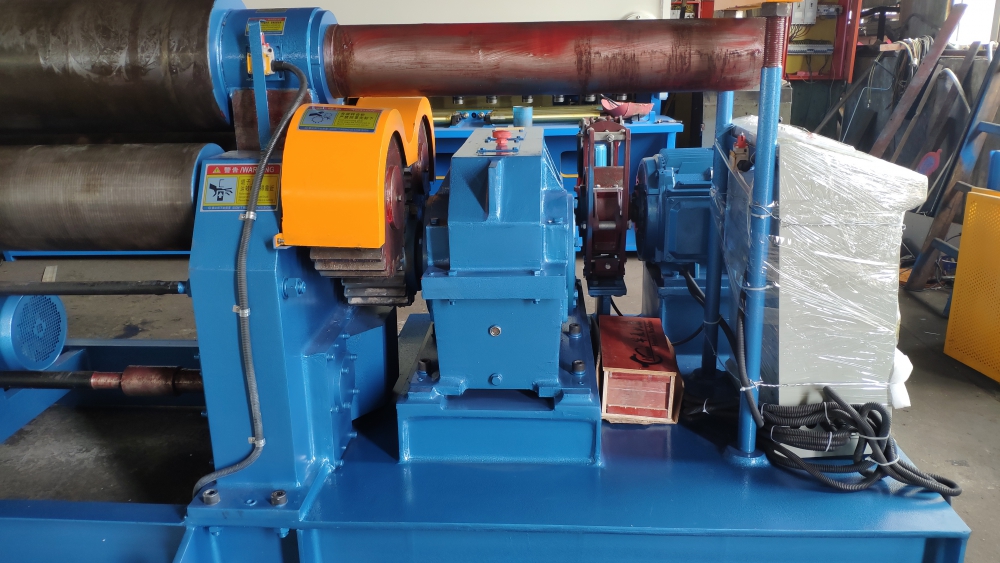

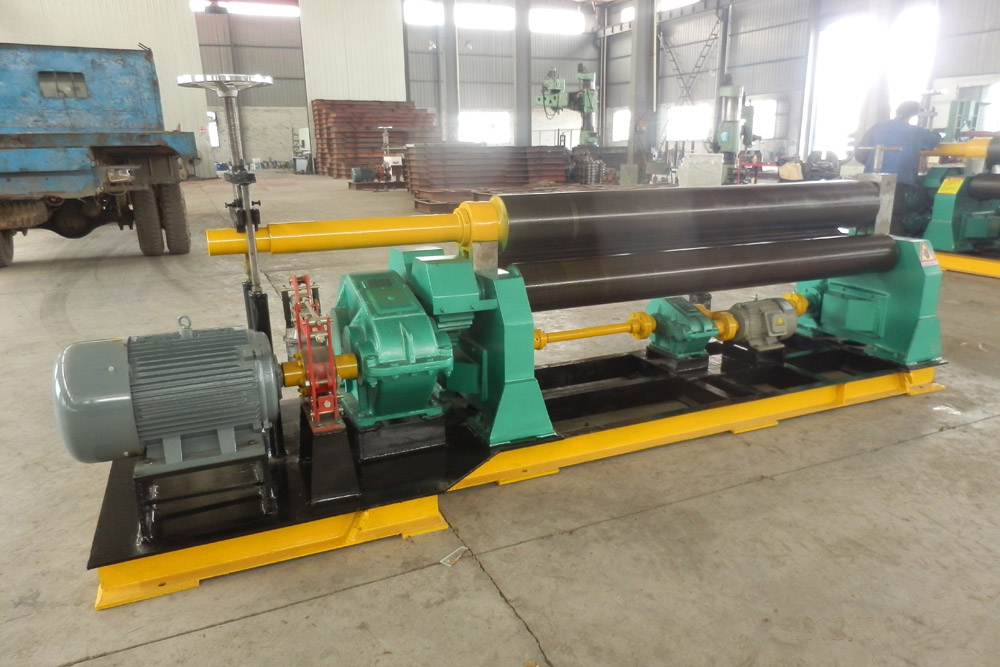

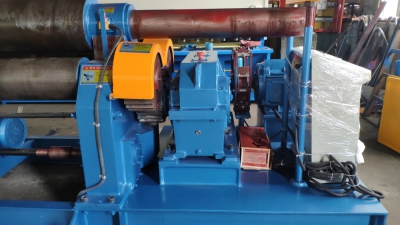

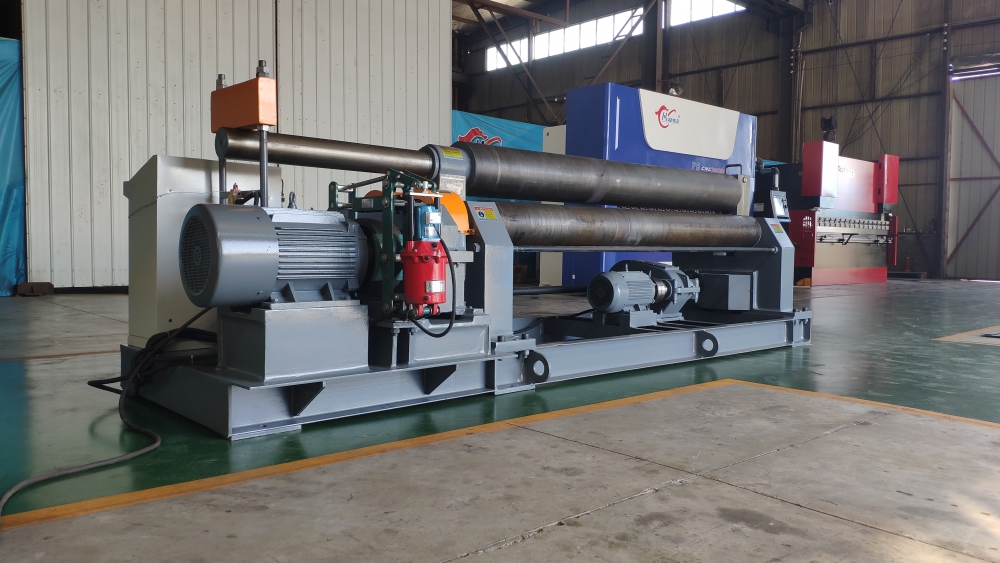

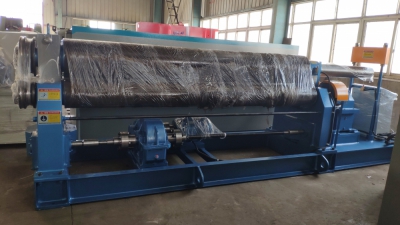

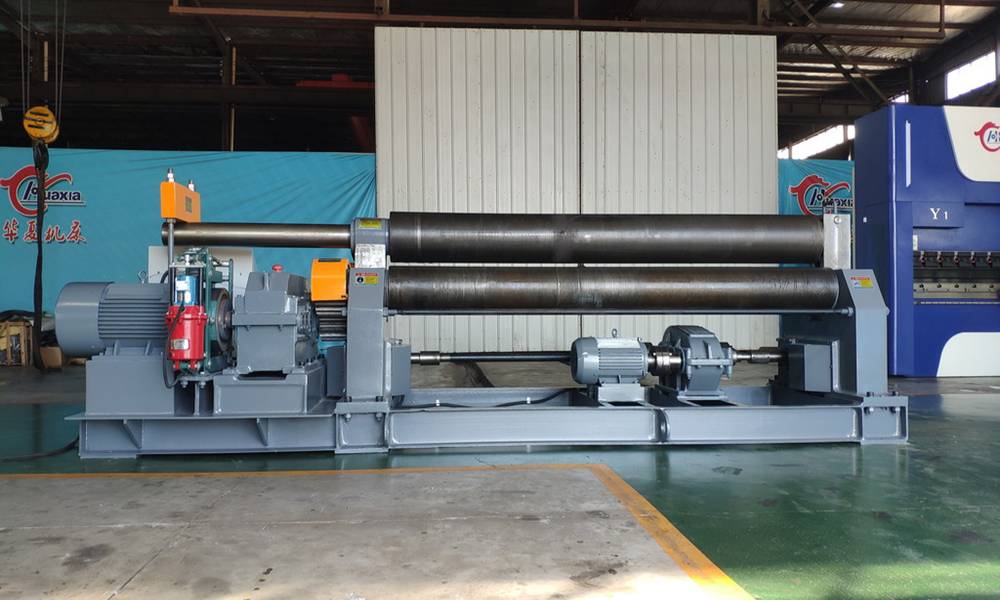

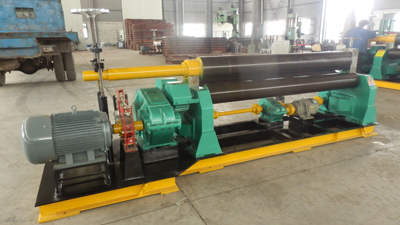

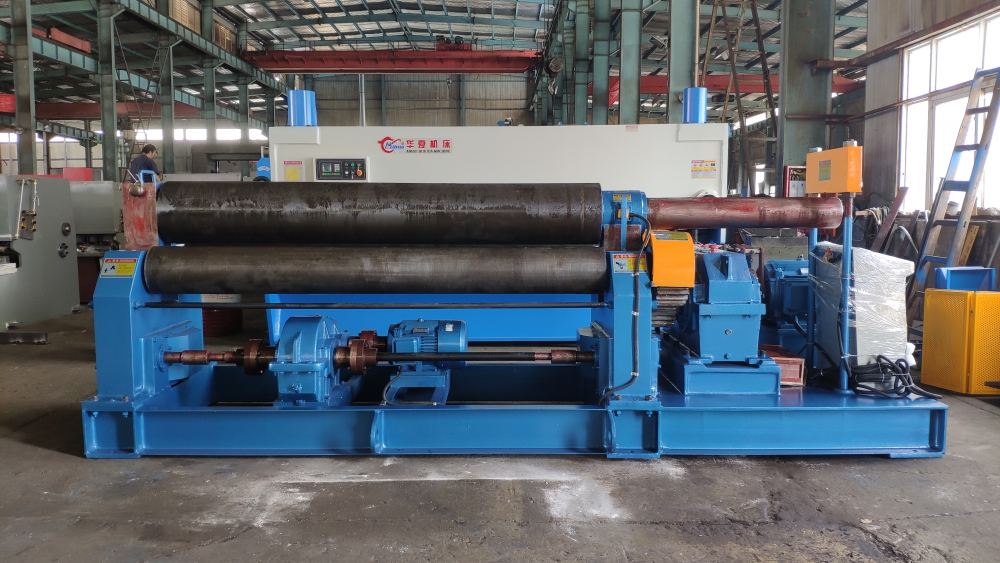

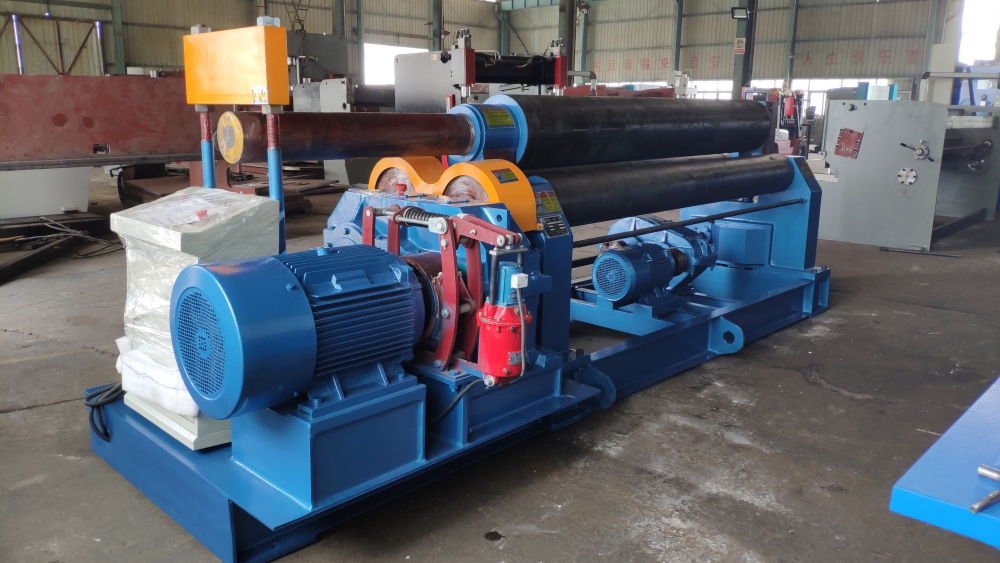

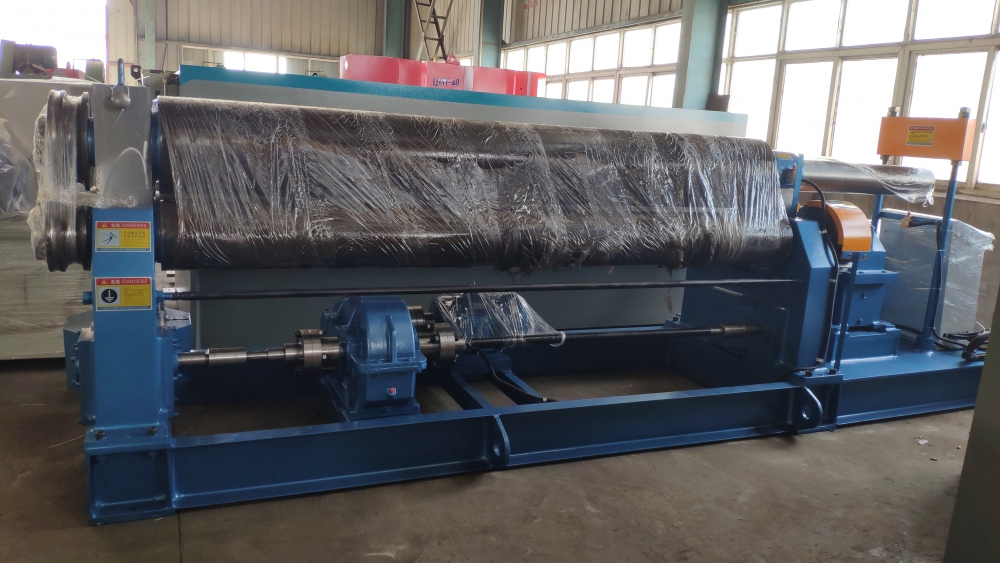

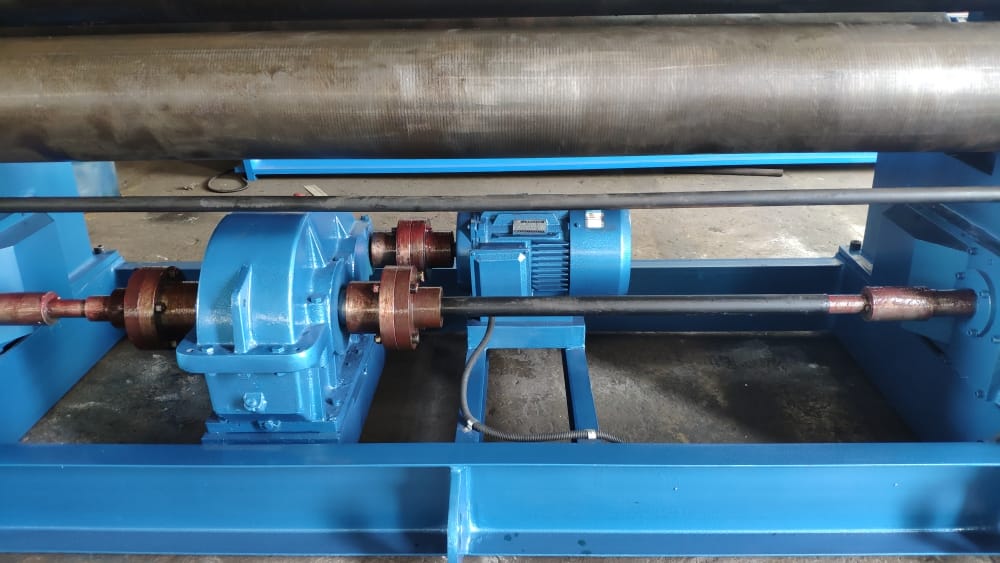

Gallery
Parameters
| Model | W11-6×2000 | W11-12×2500 | W11-16×3200 | W11-40×2000 |
| Max. Thickness of plate mm | 6 | 12 | 16 | 40 |
| Max. width of plate mm | 2000 | 2500 | 3200 | 2000 |
| Plate yield limit MPa | 265 | 265 | 265 | 265 |
| Rolling speed Min-1 | 7.16 | 5 | 5 | 5 |
| Min dia. Of plate in full load mm | 380 | 750 | 900 | 1200 |
| Dia. Of upper roller mm | 180 | 260 | 340 | 480 |
| Dia. of lower roller mm | 160 | 220 | 280 | 400 |
| Space between of two lower roller mm | 220 | 330 | 440 | 600 |
| Main motor kW | 5.5 | 11 | 22 | 45 |
| Dimension(L×W×H) mm | 3810×1210×1330 | 5000×1500×1300 | 6300×1600×1900 | 6400×2300×2800 |
