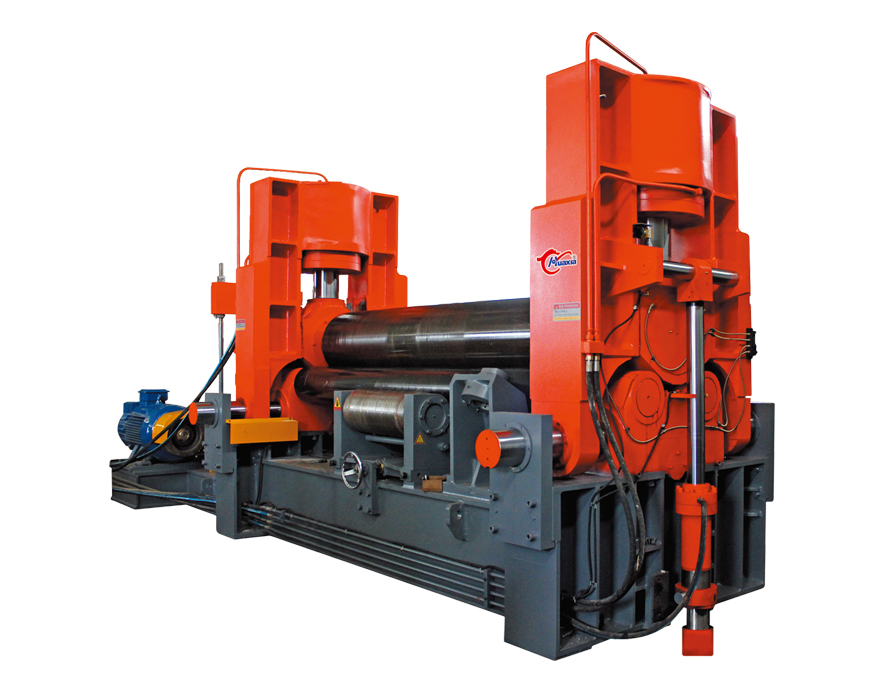

W11s Universal Plate Roll Bending Machine
The W11S upper roller universal plate bending machine uses hydraulic transmission operation, ensures the stability is higher than other roller machines.
- W11S-8×2000
- W11S-20×2500
- W11S-30×3200
- W11S-80×2500
Features
- The roller machine can pre-bend the top of the plate, ensuring the bending quality.
- The roller plate bending machine uses a numerical control system.
- The design of the machine makes it easy for clients to move it into the best space within their factory space.
- According to client needs, our roller machine is equipped with different curved blade types.

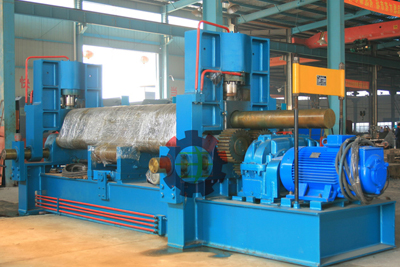

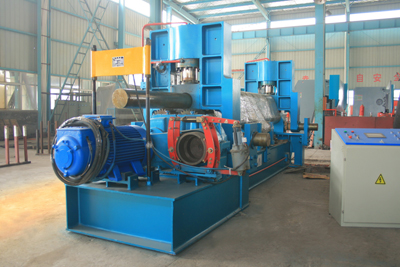

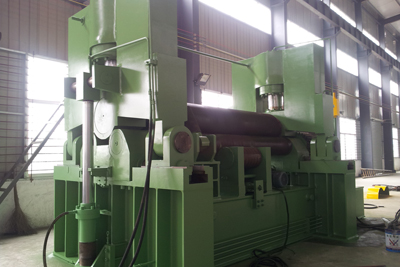

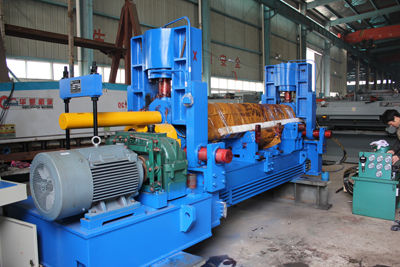

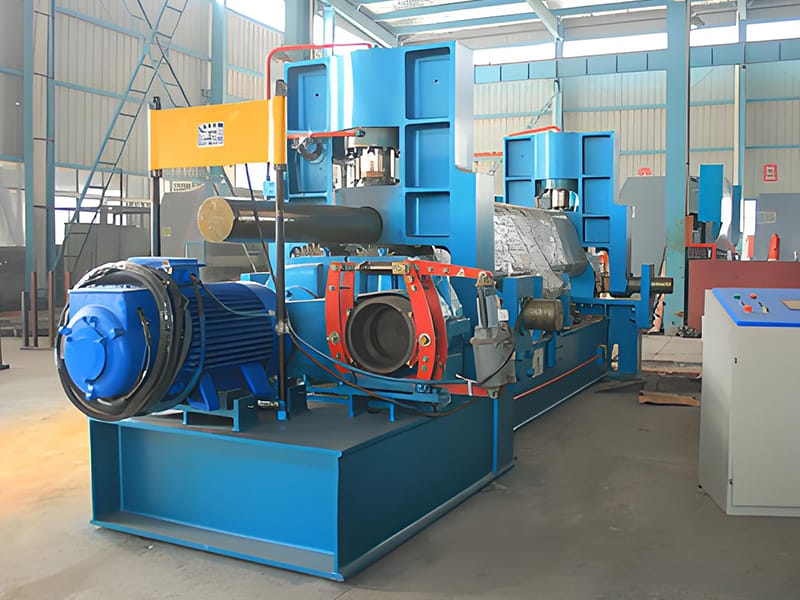

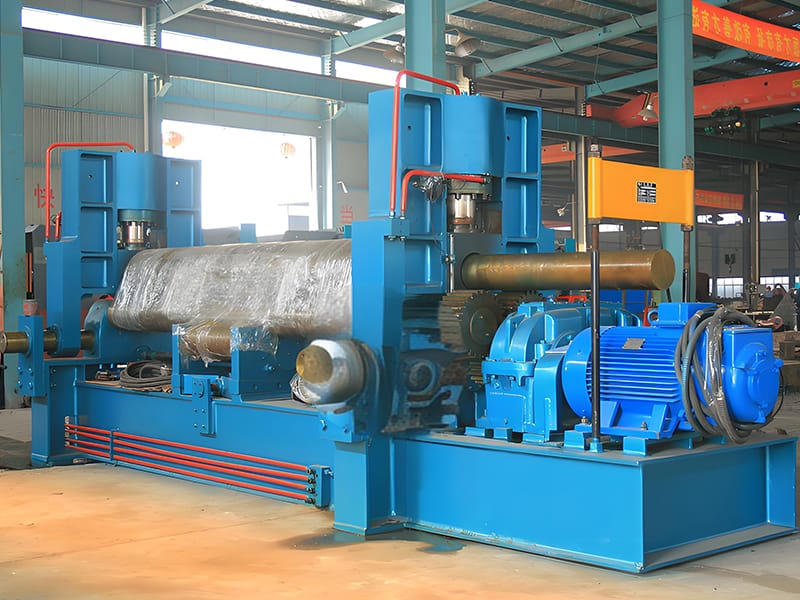

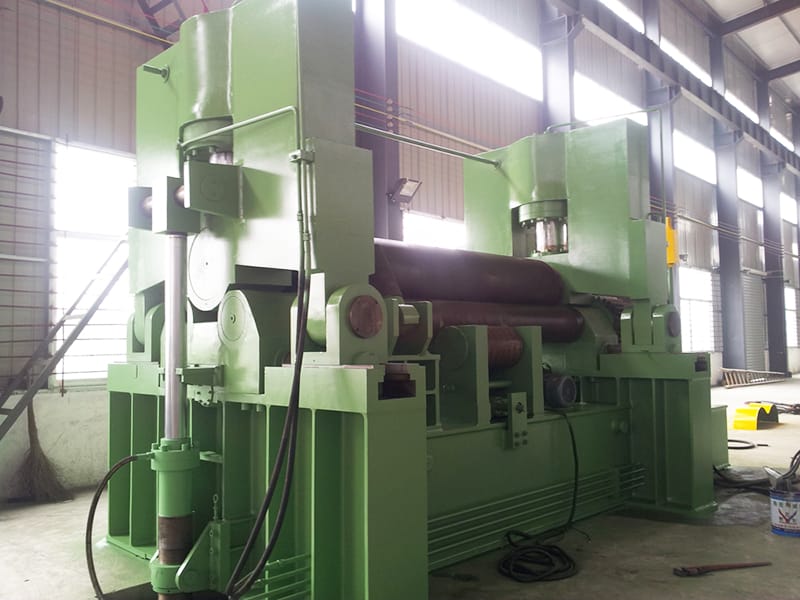

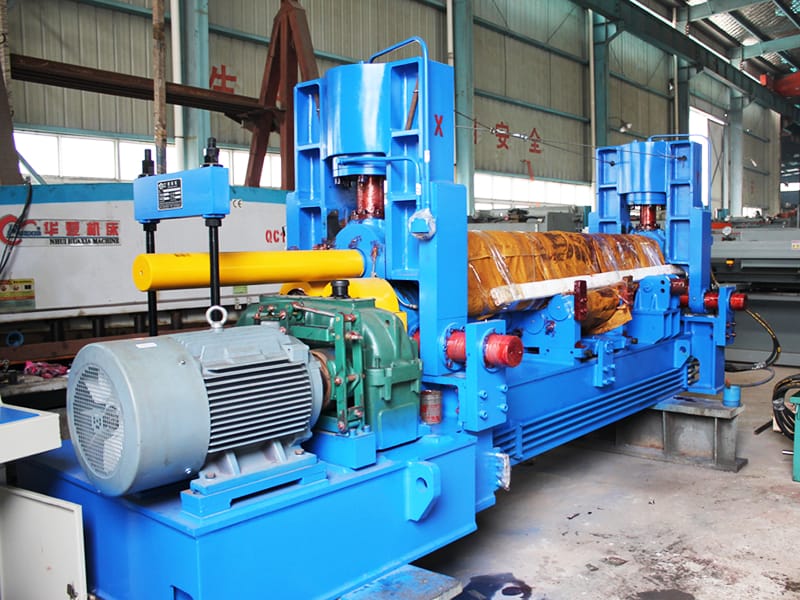

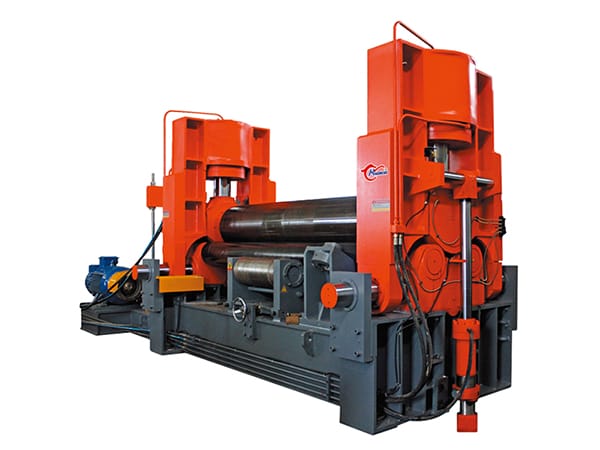

Gallery
Parameters
| Model | W11S-8×2000 | W11S-20×2500 | W11S-30×3200 | W11S-80×2500 |
| Max. thickness of plate mm | 8 | 20 | 30 | 80 |
| Thickness of pre-bending mm | 6 | 16 | 25 | 70 |
| Max. width of plate mm | 2500 | 2500 | 3200 | 2500 |
| Dia. of upper roller mm | 245 | 330 | 450 | 710 |
| Dia. of lower roller mm | Ф145 | Ф180 | Ф250 | Ф420 |
| Center distance of lower roller mm | 200 | 300 | 420 | 780 |
| Main motor power kW | 7.5 | 15 | 30 | 75 |
| Hydraulic motor power kW | 4 | 7.5 | 15 | 37 |
