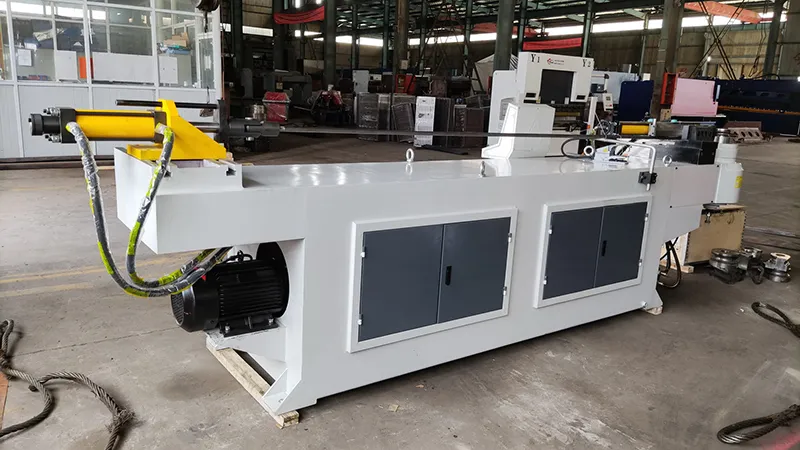

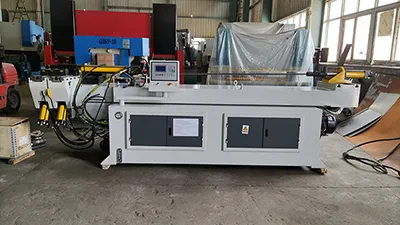

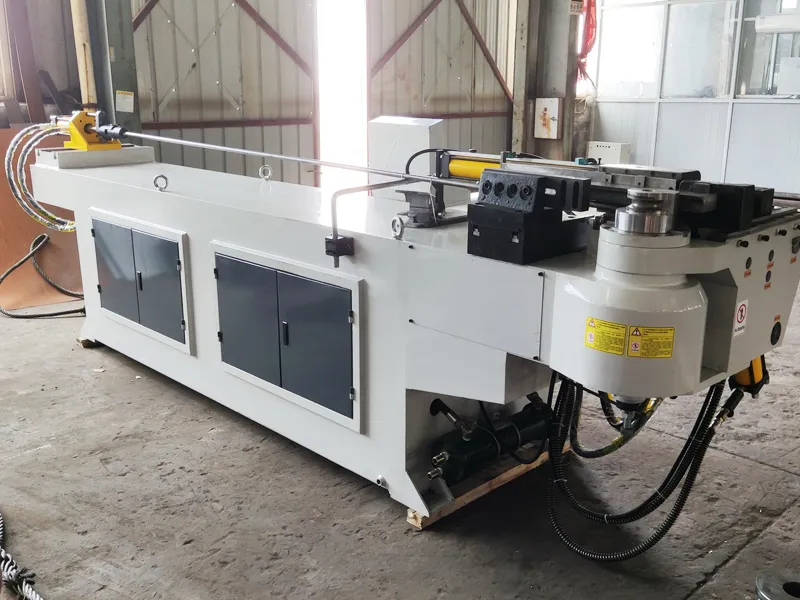

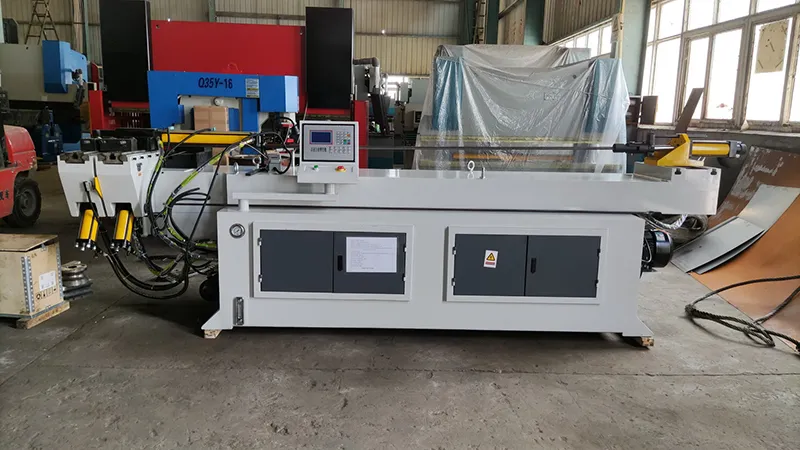

NC Semi-Automatic Tube Bending Machine

NC Semi-Automatic Tube Bending Machine

Efficient solution for small-batch, multi-variety tube bending production

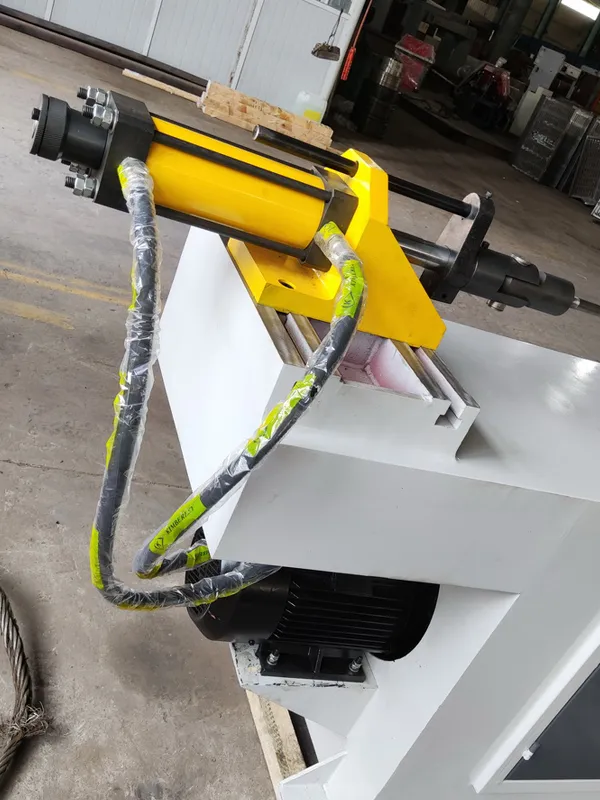

The NC semi-automatic tube bending machine features a single hydraulic bending head, specially designed for manufacturing asymmetrical tube parts. It is ideal for small-batch and high-mix production environments that require frequent mold changes.

Equipped with a fast mold interface system, this machine allows for rapid tool change and minimal adjustment, enabling immediate bending operations. Suitable for various industries, including automotive exhaust systems, furniture manufacturing, and construction piping, this machine ensures precise and stable bending results.

Request a Quote
  • NC Semi-Automatic Tube Bending Machine
  • NC Semi-Automatic Tube Bending Machine
  • NC Semi-Automatic Tube Bending Machine
Technical Parameters
Model DW-25NC DW-32NC DW-50NC DW-65NC
Round tube – steel
(diameter×wall thickness) (mm)
Ø25×2.0 Ø32×2.0 Ø50×2.0 Ø65×2.0
Round tube - nonferrous metal
(diameter×wall thickness) (mm)
Ø18×2.0 Ø28×1.5 Ø42×1.5 Ø60×1.5
Square tube - metal
(side length×wall thickness) (mm)
20×20×2.0 25×25×1.5 35×35×2.0 50×50×2.0
Round bar (mm) Ø12 Ø20 Ø30 Ø35
Bending speed (deg/sec) 220 220 220 220
Bending accuracy (deg/sec) ±0.05 ±0.05 ±0.05 ±0.05
Feeding speed (mm/sec) 1200 1000 800 700
Feeding accuracy (degree) ±0.05 ±0.05 ±0.05 ±0.05
Tube transfer speed (deg/sec) 300 300 200 200
Tube transfer accuracy (degree) ±0.05 ±0.05 ±0.05 ±0.05
Machine weight (kg) 1200 1400 2000 3500
