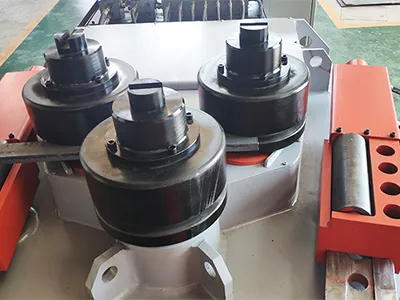

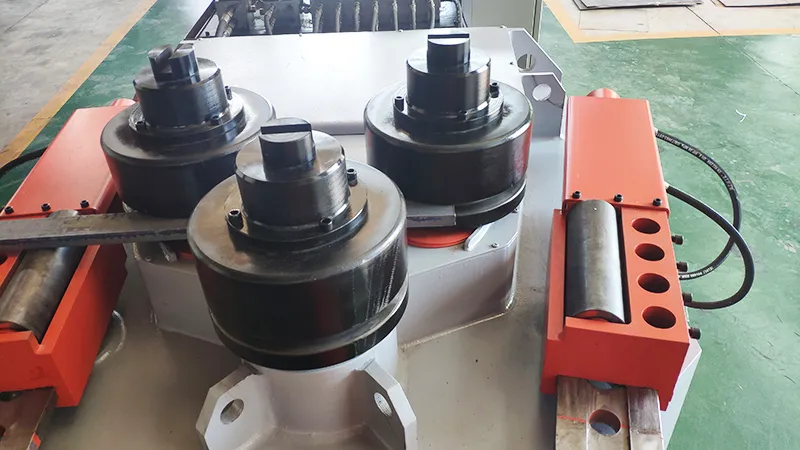

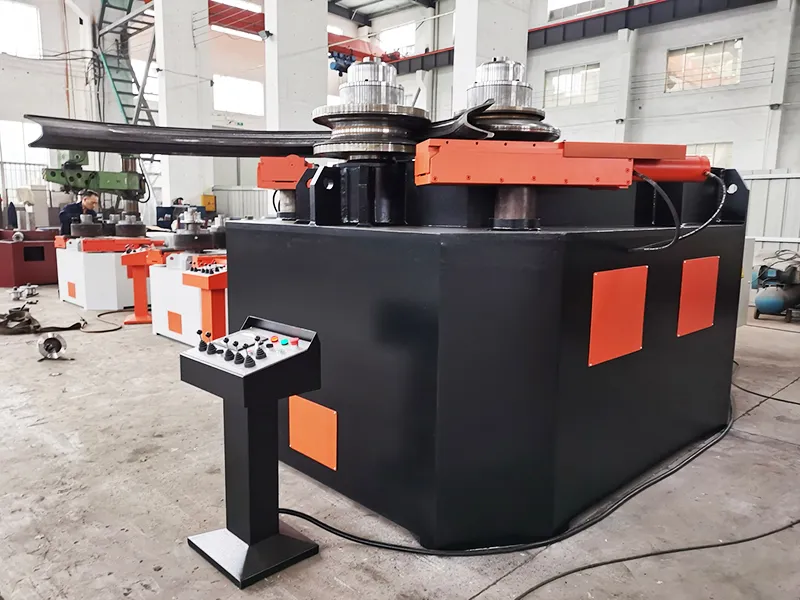

Profile Bending Machine

All-in-one bending solution for aluminum profiles, steel bars, beams, and pipes
The profile bending machine is an advanced solution for pre-bending, roll bending, and calibration of various profiles in a single setup. It is designed to efficiently bend a wide range of materials, including aluminum alloy profiles, flat steel, square steel, round steel, angle steel, I-beams, H-beams, square tubes, rectangular tubes, and round tubes.

Developed to meet the evolving needs of modern industry, the machine is widely used for manufacturing circular flanges and structural components across various sectors such as automotive, petroleum, chemical engineering, steel structures, elevator systems, and general machinery manufacturing.

Request a Quote

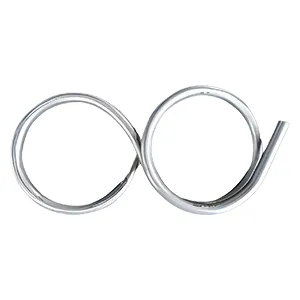

    Profile Bending Machine

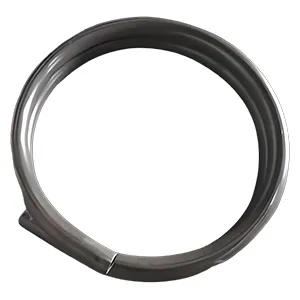

    Helical Circle

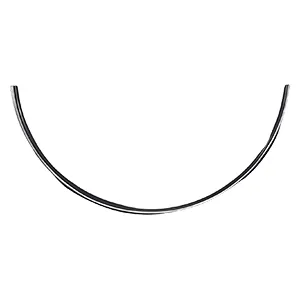

    Profile Bending Machine
    Semi Circular
    Profile Bending Machine

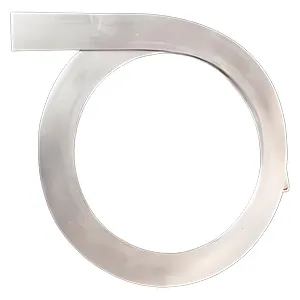

    Flat Steel
    Profile Bending Machine
    Splayed

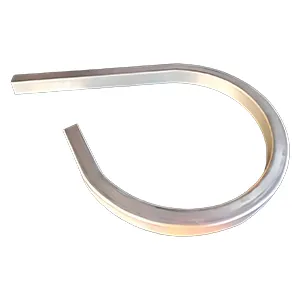

    Profile Bending Machine
    Square Tube

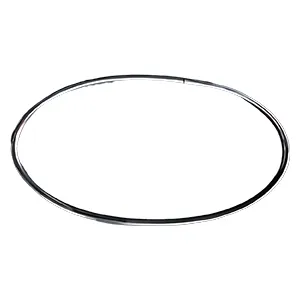

    Profile Bending Machine
    Ellipse

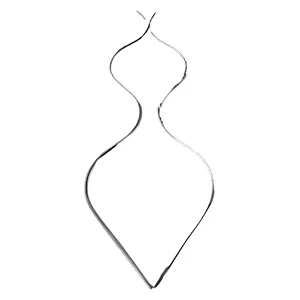

    Profile Bending Machine
    S-bend

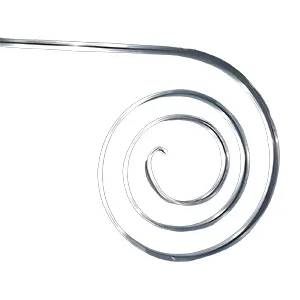

    Profile Bending Machine
    Spiral
Technical Parameters
Models GY100NC-3 GY100NC-7 GY120NC-3 GY60NC-3
Max. Bending Capacity (mm) Ø100 ×6 (carbon steel pipe) Ø100×6 Ø120×6 Ø60×2 (carbon steel pipe)
Min. Bending Radius R≥10D R≥7.5D R≥10D(R>240) R≥10D
Bending Speed (mm/s) 100 100 100 Adjustable
Mold Diameter (mm) - 380 380 208
Hydraulic Motor Power (kW) 11 11 15 5.5
Total Power (kW) - 18.5 22.5 22.5
Machine Dimensions (mm) 1800×1230×2100 1800×1800×1200 2600×1800×1500 1300×900×1800
Machine Weight (kg) 2000 3000 3500 730

Note: Parameters can be customized according to customer requirements
