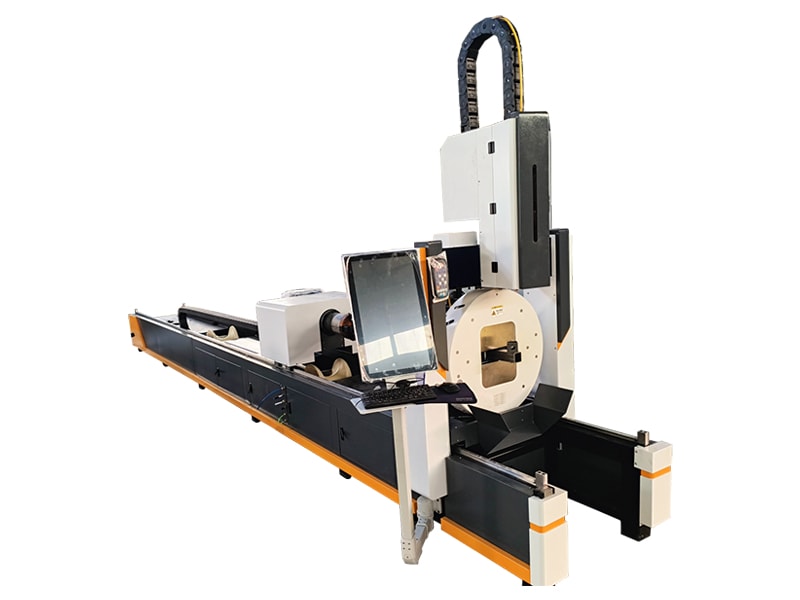

The CNC fiber laser metal tube cutter is primarily used for high-precision automated cutting of metal tubes and profiles. The cutting machine consists of cutting bed, guide rails, front and rear chucks, and laser cutting head, enabling consistent cutting of round tubes, square tubes, rectangular tubes, oval tubes, and other metal profiles. The cutting machine is also capable of cut-to-length cutting, hole cutting, slot cutting, notching, intersection cutting and processing of complex profiles. Selected models also support bevel cutting, welding seam detection, automated material loading and unloading.
With a positioning accuracy of ±0.02 mm and high cutting accuracy, the cut edges are clean, smooth with minimal burrs. The reduced secondary processing such as sawing and drilling improves production efficiency and material utilization, making the cutting machine ideal for steel fabrication, metal furniture manufacturing, tube processing and the production of other metal structural components.
Laser Power
3000-20000 W
Positioning Accuracy (X/Y)
±0.02 mm
Effective Cutting Length
6500 mm
Max. Tube Diameter
Ø240 mm
The CNC fiber laser metal tube cutter can cut through a wide range of metals, including carbon steel, stainless steel, aluminum and aluminum alloys, copper, brass, and galvanized steel, and can be used for precision cutting of tubes and profiles such as round, square/rectangular, oval, and hexagonal tubes, as well as I-beams, angles, and channels.

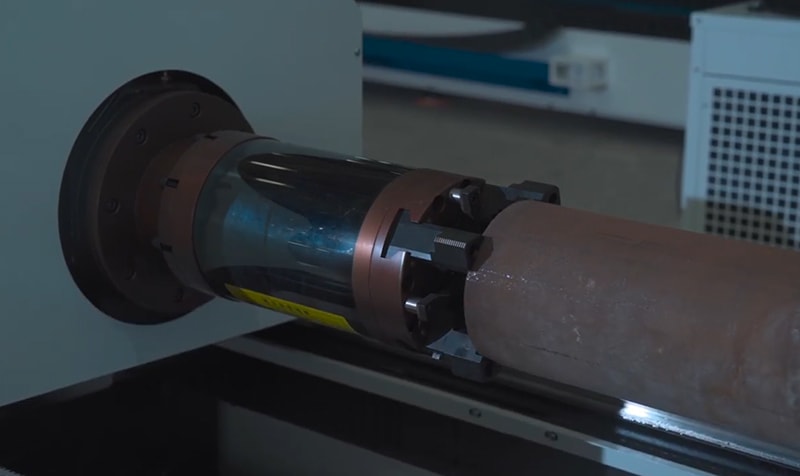

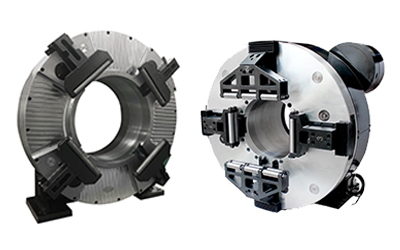

The front chuck is responsible for precision positioning while the rear chuck for feeding and clamping. The two chucks work in synergy for stable tube handling.
The four-jaw chucks feature hardened-steel jaws, self-centering design for uniform clamping force, and pneumatic actuation for rapid opening and closing.
The dual-chuck system enables cutting of a wide range of wall thicknesses.

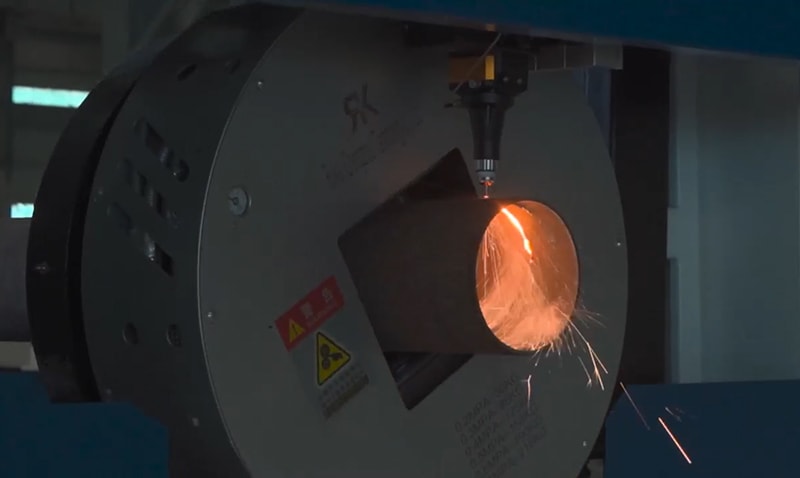

The auto-focus laser cutting head is equipped with built-in collimator, focusing lens, safety window and temperature monitor. The auto-focus feature adapts to different tube diameters.

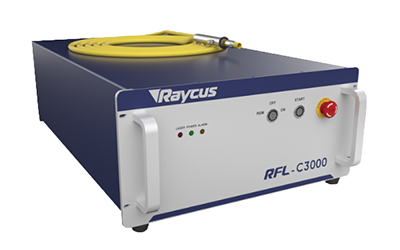

The fiber laser source consists of pump source, resonator, gain medium and QBH connector. The module design enables low maintenance.
The control cabinet is integrated with servo drive, motion control card, circuit breaker and switch-mode power supply. The layout is designed for heat dissipation.

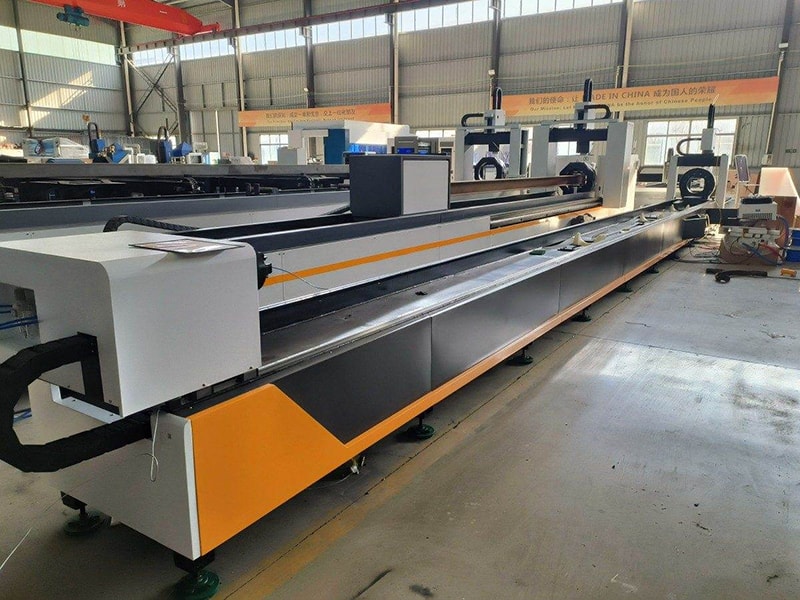

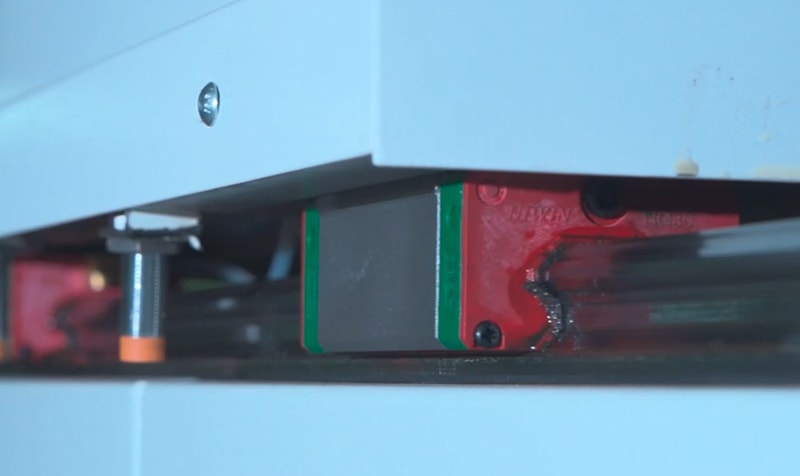

The cutting bed incorporates precision linear guides and rack-and-pinion drive， ensuring high-speed motion and high positioning accuracy.

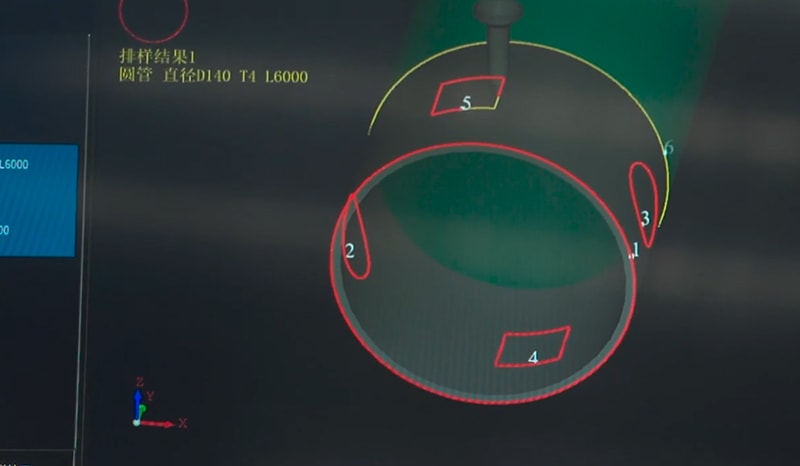

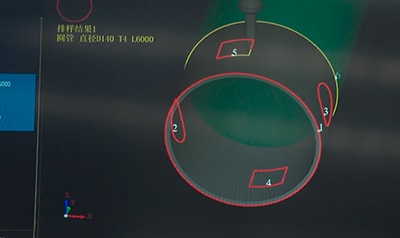

The CNC cutter typically uses BOCHU FSCUT system, with built-in tube shape library, nesting functions and process parameter library, enabling preview of real-time toolpath.
The sensors measure actual length while the chucks use auto- centering to match the program.
The lubricating oil is dispersed to guide rails and gears according to set time and amount, extending machine life.
The vacuum dust collection system removes dust from inside the tubes and the cutting area, protecting lenses and improving operating environment.
Pre-arranged tubes are loaded for automatic sorting and feeding, without further manual handling.
Tube bundles are loaded for automatic sorting and feeding, without any manual handling.
The servo-driven support rollers follow the cutting head, preventing sagging and deformation.
The cut parts are delivered by automatically dropping onto the trays and sliding into the collection cart.
Vertical tube storage facilitates 24-hour automated loading, cutting and unloading.
Automatic avoidance of middle and rear chucks when cutting long tubes minimizes material loss by reducing the tailing.
