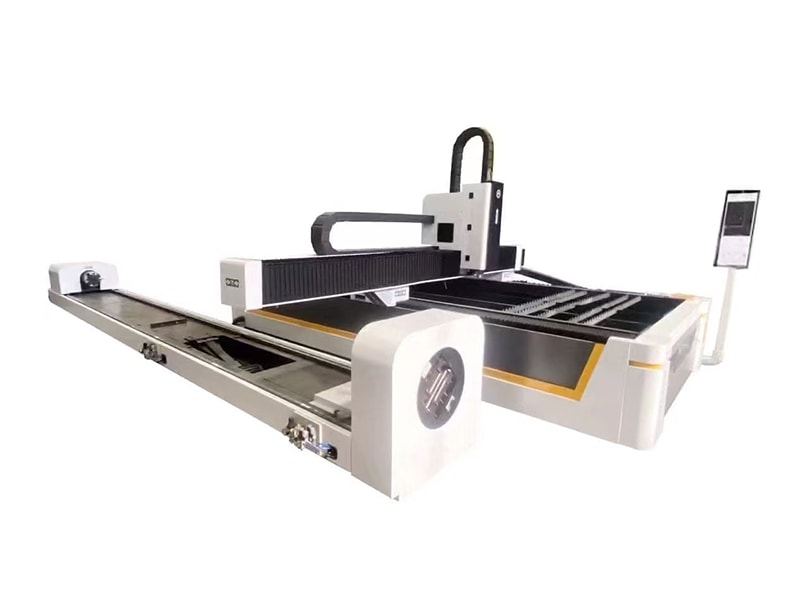

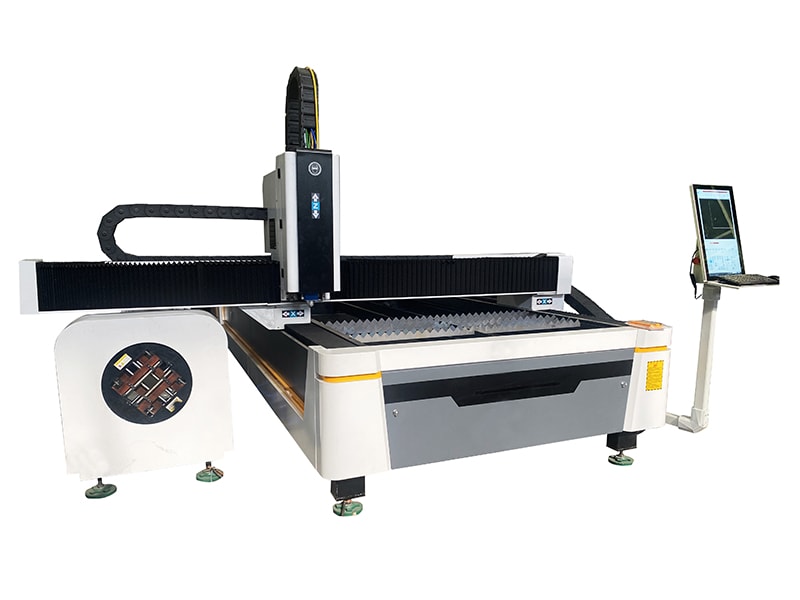

The fiber laser sheet & tube cutter is integrated with sheet cutting table and tube-cutting chuck system. The cutting machine is equipped with a single laser source, water chiller and CNC system, enabling high-precision cutting of sheets, tubes and profiles.
The cutting machine is suitable for steel fabrication, metal furniture manufacturing, secondary processing of sheets and tubes, and production of other structural metal components.
Laser Power
3000-20000 W
Sheet Working Range (X × Y)
3000 × 1500 mm
Maximum Tube Diameter
Ø320 mm
Positioning Accuracy (X/Y)
±0.05 mm
Maximum Rapid Traverse Speed
140 m/min
Compliance
CE
The fiber laser sheet & tube cutter can cut through a wide range of metals, including carbon steel, stainless steel and aluminum, and is suitable for high-precision cutting of sheets, tubes and profiles such as square, round and hexagonal tubes.

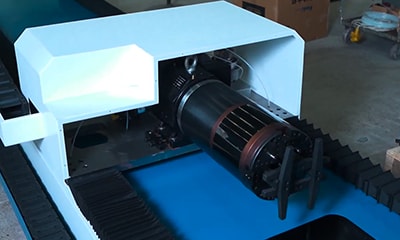

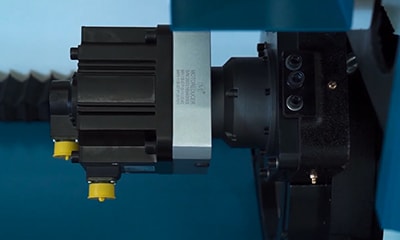

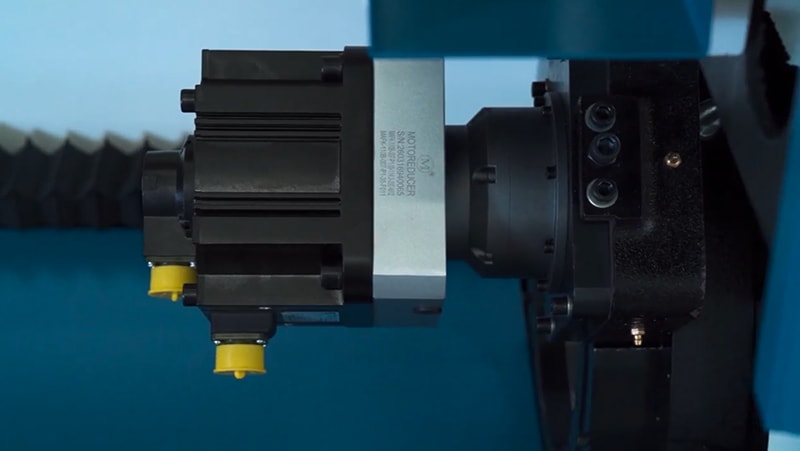

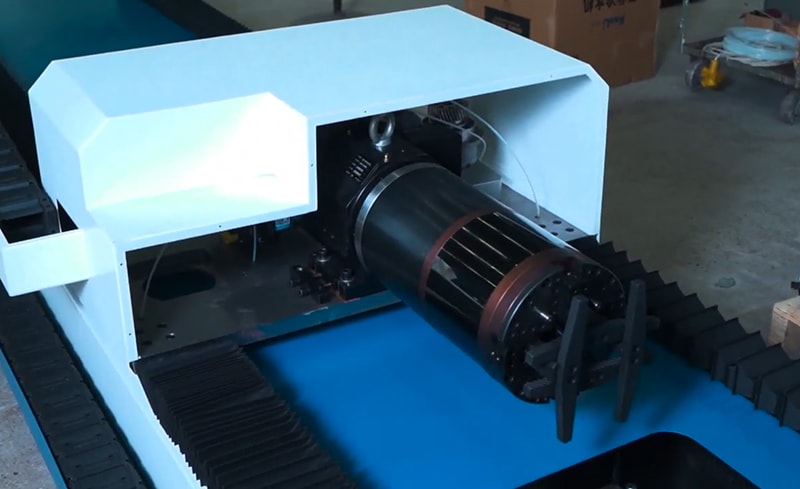

The front chuck is responsible for precision positioning while the rear chuck for feeding and clamping. The two chucks work in synergy for stable tube handling.

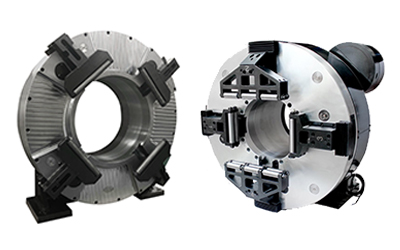

The four-jaw chucks feature hardened-steel jaws, self-centering design for uniform clamping force, and pneumatic actuation for rapid opening and closing.
The dual-chuck system enables cutting of a wide range of wall thicknesses.

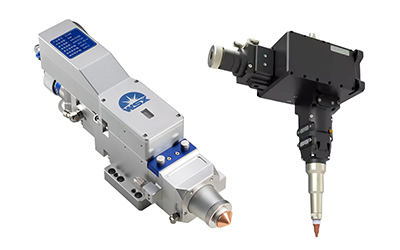

The auto-focus laser cutting head is equipped with built-in collimator, focusing lens, safety window and temperature monitor. The auto-focus feature adapts to different tube diameters.

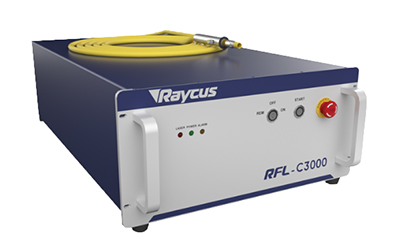

The fiber laser source consists of pump source, resonator, gain medium and QBH connector. The module design enables low maintenance.

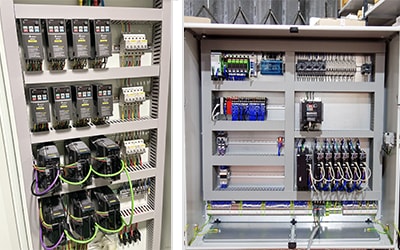

The control cabinet is integrated with servo drive, motion control card, circuit breaker and switch-mode power supply. The layout is designed for heat dissipation.

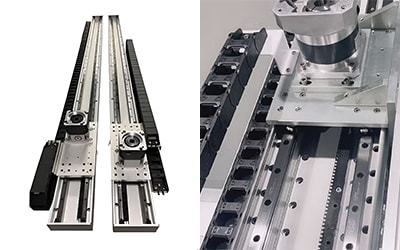

The cutting bed incorporates precision linear guides and rack-and-pinion drive， ensuring high-speed motion and high positioning accuracy.

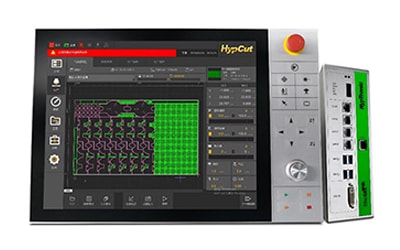

The CNC cutter typically uses BOCHU FSCUT system, with built-in tube shape library, nesting functions and process parameter library, enabling preview of real-time toolpath.
The sensors measure actual length while the chucks use auto- centering to match the program.
The lubricating oil is dispersed to guide rails and gears according to set time and amount, extending machine life.
The vacuum dust collection system removes dust from inside the tubes and the cutting area, protecting lenses and improving operating environment.
Pre-arranged tubes are loaded for automatic sorting and feeding, without further manual handling.
Tube bundles are loaded for automatic sorting and feeding, without any manual handling.
The servo-driven support rollers follow the cutting head, preventing sagging and deformation.
The cut parts are delivered by automatically dropping onto the trays and sliding into the collection cart.
Vertical tube storage facilitates 24-hour automated loading, cutting and unloading.
Automatic avoidance of middle and rear chucks when cutting long tubes minimizes material loss by reducing the tailing.
