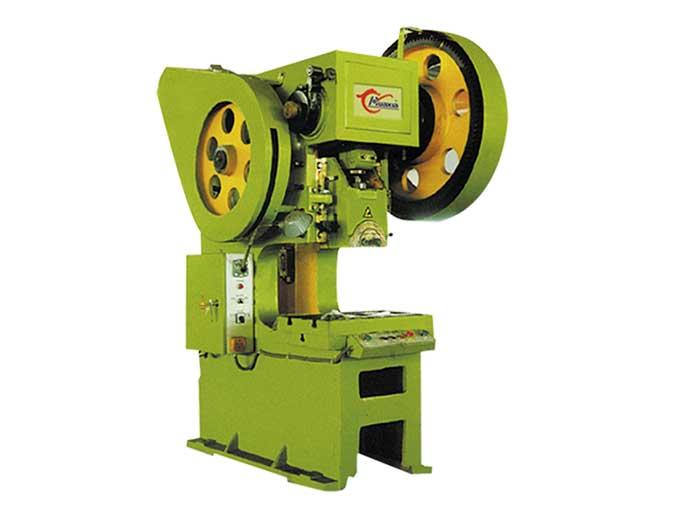

The body of J23 J21 power press machine is a C-shape integral casting part, it iused for cutting, punching, blanking, bending, riveting and forming processes.

  • J23/J21-10T
  • J23/J21-16T
  • J23/J21-25T
  • J23/J21-40T
Contact Us for More INFO
Parameters
ItemUnitJ23/J21-10T J23/J21-16T J23/J21-25T J23/J21-40T J23/J21-63T J23/J21-80T
nominal pressure kN 100 160 250 400 630 800
nominal pressure stroke mm 4 5 5 6 6 8
slipper stroke mm 50 60 70 100 100 120
slipper stroke times t/min 130 110 70 55 60 50
max. closing height mm 180 220 260 320 330 380
closing height adjuster mm 35 50 60 80 80 100
distance between slipper centre to machine mm 120 180 190 230 240 260
work bench dimension front and back mm 240 300 320 400 450 480
left and right mm 360 450 530 650 710 750
diameter of blank-holding hole front and back mm 100 130 140 170 180 220
left and right mm 180 200 220 240 260 340
diameter mm 95 120 130 160 170 190
slipper underside bore front and back mm 100 130 170 220 230 240
left and right mm 170 220 250 300 340 370
size of die handle bore diameter mm 30 40 40 50 50 60
depth mm 50 60 60 70 70 80
pole distance mm 160 170 210 260 280 300
distance between bench to guideway mm 200 250 290 340 350 380
Pad thickNess mm 35 45 50 80 80 90
body tilting angle ° 30 30 25 25 25 25
motor power kW 1.1 1.5 2.2 4 5.5 7.5
Rotational Speed r/min 1410 1410 1440 1440 1440 1440
dimension front and back mm 910 1100 1200 1500 1600 1750
left and right mm 650 780 900 1100 1150 1300
height mm 1560 1800 2050 2400 2480 2600
weight kg 420 760 1300 2600 3300 4500
Component description

The main components of the press include the following: Machine body, Transmission, Clutch, Slider, Brake, Control mechanism.

  • Machine body

    The body of J23 J21 power press machine is a C-shape integral casting part, and features a workbench with a rectangular hole in the center to allow completed workpieces or scrap pieces to easily fall through. The pad is bolted to the work bench, with a T groove installed on the pad to facilitate die installation.

  • Transmission

    The transmission system is powered using a motor mounted on the back of the fuselage.

  • Clutch

    The clutch is positioned at the right end of the crankshaft. The turn-button of the clutch is woodruff key, which uses the force of extension spring to remain the turn-button at a normally open status.

  • Slider

    The slider is located between the fuselage guideway. The slider moves straight up and down in the V-groove of the guide rail using the crankshaft rotary motion.

  • Brake

    The brake wheel is circular and attached on the left end of the crankshaft. It is a continuous brake, with the belt made using a soft steel leather, or internal riveted copper asbestos brake tape.

  • Control mechanism

    This machine uses a mechanical manipulation mechanism to control the slider for single punching with a foot lever.
