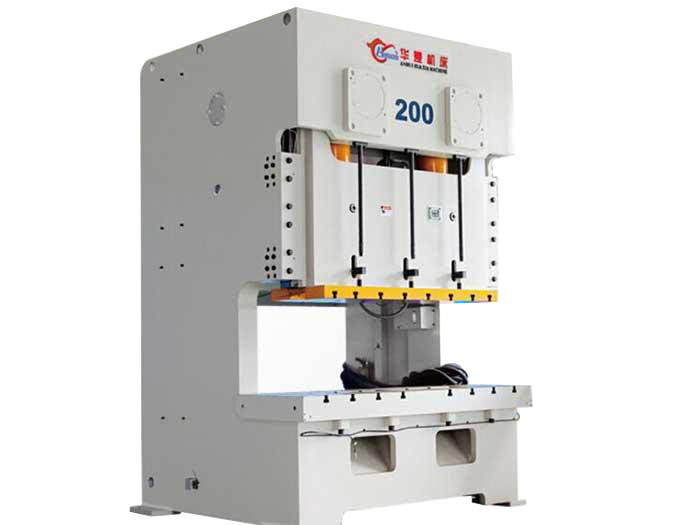

Open Type Power Press Machine

Open Type Power Press Machine

The open type power press machine body features a welding connection to ensure an excellent rigidity. The centralization of control using the PLC makes it easy for people to operate.

Nominal Pressure (kN)

800-3150

Nominal Pressure Stroke (mm)

2.5-8

Max. Die Set Height (mm)

380-585

Die Height Adjustment (mm)

80-120

Request a Quote
Parameters
Model JC25-80 JC25-110 JC25-160 JC25-200 JC25-250 JC25-315
L S L S L S L S L S L S
Nominal Pressure (KN) 800 1100 1600 2000 2500 3150
Nominal Pressure Stroke (mm) 4.5 2.5 5 3 6 3 7 4 7 4 8 5
Stroke of Slide (mm) 160 90 180 120 200 130 230 150 250 180 250 180
S.P.M Stroke 40~75 50~90 35~65 45~80 30~50 35~65 25~45 30~55 20~40 30~50 20~35 25~45
Max.Die Set Height (mm) 380 415 400 435 450 485 500 540 550 585 550 585
Die Height Adjustment (mm) 80 90 110 120 120 120
Depth of Throat (mm) 310 350 390 430 470 470
Distance Between Uprights (mm) 1350 1470 1610 1960 2100 2170
Bottom Size of Slide L-R (mm) 1200 1360 1500 1850 2000 2100
F-B (mm) 460 520 580 650 700 700
Size of Table L-R (mm) 1650 1880 2040 2420 2600 2700
F-B (mm) 600 680 760 840 920 920
Overall Dimension Width (mm) L-R 1850 2000 2200 2670 2900 3050
Length (mm) F-B 1800 1860 2100 2310 2650 2960
Height (mm) 3000 3150 3450 4200 4750 4900
Main Motor Power (kw) 11 15 22 22 30 37
Total Weight (kg) 12500 16000 22000 31000 40000 46000
Features
  • The highly rigid double crankshaft reverse operation counteracts the lateral force.
  • The accuracy of the press meets JIS1 standards.
  • A long guide rail with six sides ensures the punching precision.
  • Pneumatic friction clutch achieves a smooth operation. When the solenoid valve is closed, the air pressure disappears, thus allowing the friction plate to completely separate using a spring quick reset.
  • The safety double solenoid valve made in Japan ensures the safety of the product.
  • High sensitivity hydraulic provides the overload protection.
  • Heavy oil offers automatic lubrication to give the machine an excellent wear resistance.
  • Frequency conversion also gives the machine an excellent wear resistance.
  • Customers can choose to have an output shaft, air cushion, sliding block feeding, automatic feeding and other devices installed.
