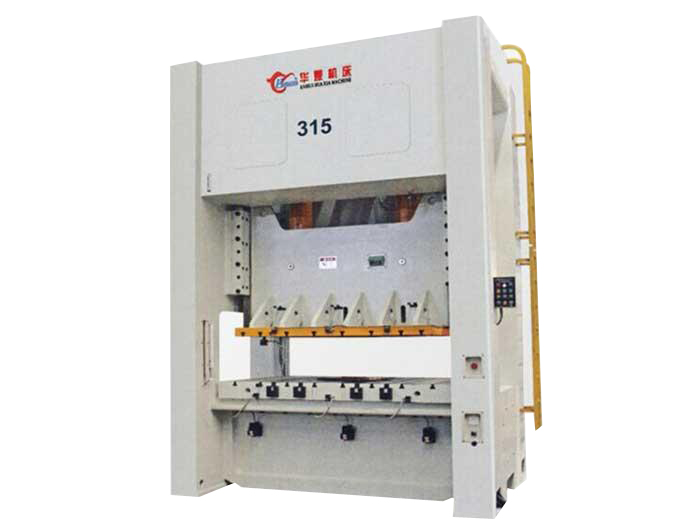

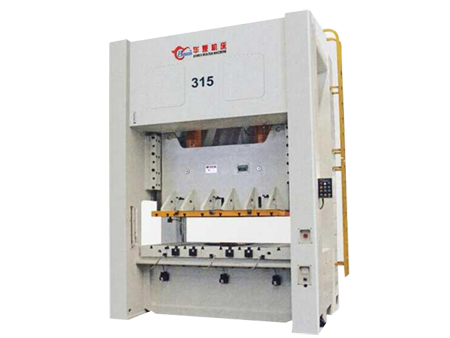

Closed Type Power Press Machine

The JH36 closed type power press machine uses multi-link drive with two kinds of modes: slow processing and fast return.

Features

The two-point quick return of press increases the production efficiency by about 30% when compared to traditional crank presses.
The press has a high precision and meets the first class JIS standards.
The machine uses welding technology and has a high rigidity.
The press uses a long guide rail with eight sides to ensure the accuracy. The JH36-110U JH36-160 model uses a six-sided guide rail.
A dry-type pneumatic friction clutch is required so that the clutch can easily engage or separate from power, and the clutch will not overheat during short periods of time in a semi-clutch state.
Hydraulic overload protection function with high sensitivity protects the machine from being severely damaged due to incorrect operation.
The lubricating oil can be automatically added to this power press machine, so the machine is not easy to be worn.
The machine uses frequency conversion and frequency modulation to ensure machine operation accuracy as well as an excellent stability.
PLC centralized control makes user operation easy.
The equipment can be customized according to customer needs, including an output shaft, air cushion, sliding block feeding, automatic feeding and other devices.

Parameters

Model			JH36-110		JH36-160		JH36-200		JH36-250		JH36-315	JH36-400	JH36-500	JH36-630
Nominal pressure KN			1100		1600		2000		2500		3150	4000	5000	6300
Nominal pressure stroke			5	3	6	3	7	4	7	4	8	8	10	10
Stroke of slide mm			180	110	200	130	230	150	250	180	250	250	280	300
S.P.M stroke			35~65	45~80	30~50	35~65	25~45	30~55	20~40	30~50	23~35	20~35	18~25	15~25
Max. die set height mm			400	435	450	485	500	540	550	585	550	550	580	600
Die Height Adjustment mm			90		100		110		120		120	120	120	120
Distance Between Uprights mm			1750		1970		2200		2400		2600	2750	2900	3100
Bottom Size of Slide	Width mm L-R	1360			1500		1850		2000		2100	2300	2400	2600
	Length mm F-B	520			580		650		700		750	800	850	1100
Size of Table	Width mm L-R	1700			1930		2100		2300		2400	2700	2850	3000
	Length mm F-B	680			760		840		920		950	1000	1200	1400
L-Side Openings	Height mm UP and Down	500			500		600		600		600	600	700	700
	Length mm F-B	600			750		800		900		900	900	1000	1000
Overall dimension Of the puncher	Width mm L-R	2350			2600		3050		3350		3550	3800	3950	4000
	Length mm F-B	1950			2370		2500		2650		2700	2800	3600	3900
	Height mm Height	3530			3900		4400		4900		5200	5300	5750	6100
Main Motor Power (kw)			15		22		22		30		37	37	45	55
